Important information about voltage areas

6452_en_11 Phoenix Contact 19 / 188

4.3.3.1 Structure of a 120 V AC/230 V AC area

A 120 V AC/230 V AC area must have a power terminal at one end and an end terminal at

the other.

I/O terminals for these voltage areas can be used between these terminals. The number

of terminals is limited by the system limits of the bus system and the Inline system (see

Section 15, “Inline: Technical data and ordering data”).

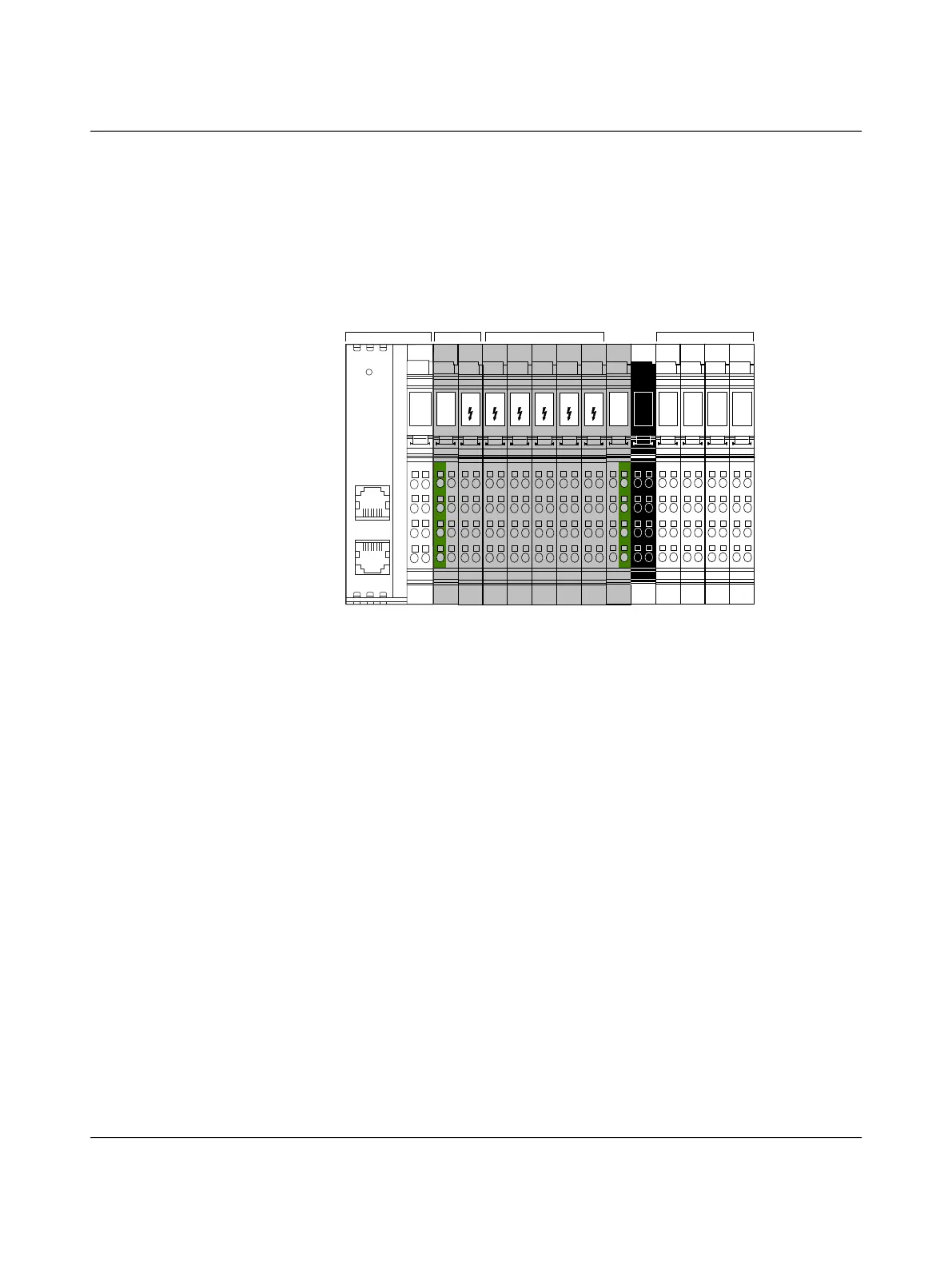

Figure 4-1 Typical structure of an Inline station with different voltage areas

4.3.3.2 Fuse protection for a 120 V AC/230 V AC area

Each 120 V AC/230 V AC area must be protected by its own external fuse. Select the rat-

ing of the fuse according to the strength of the cable. The maximum fuse value is 8 A. For

additional restrictions, please refer to the data sheets for the power terminals.

1 Bus coupler

2 Power terminal for the 120 V AC or 230 V AC area

3 Various I/O terminals for the 120 V AC or 230 V AC area

4 End terminal for the 120 V AC or 230 V AC area

5 Power terminal for the 24 V DC area

6 Various I/O terminals for the 24 V DC area
