11.5.2 Inline Block IO: Mounting/removal

Mounting

• Place the base onto the DIN rail from above (Figure 11-17, A) and press down firmly

(B).

• Plug the connectors into the base (Figure 11-18).

First, insert the front connector shaft latching (A).

Then press the top of the connector towards the base until it snaps into place (B).

Removal

• Disconnect the power to the module.

• If there is a labeling field, which covers several connectors, it may have to be re-

moved.

Before removing the base, disconnect all the necessary connectors, so as to provide

access to the base latch.

When using extended double signal connectors (long connectors), please ensure

that you do not bend them back too far, as you may break the front snap-on mech-

anism.

• Lift the connector that is to be removed by pressing on the back connector shaft

latching (Figure 11-19, A).

• Remove the connector (B).

• Insert a tool in the base latch and pull gently upwards (Figure 11-20, A). Pull the

module out from the DIN rail (B, C).

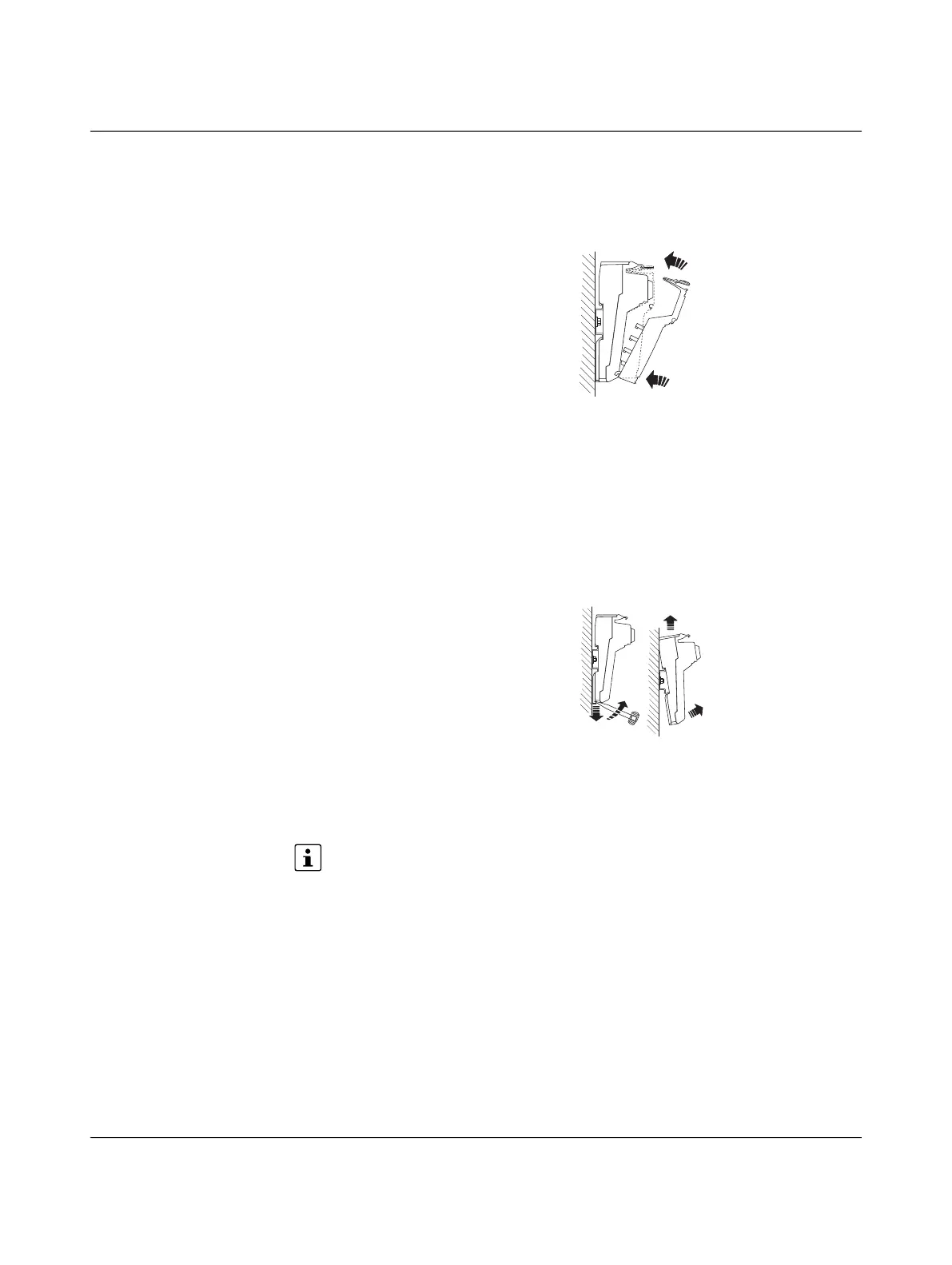

Figure 11-17 Snapping on the base Figure 11-18 Snapping on a connector

)

*

Figure 11-19 Removing a connector Figure 11-20 Removing the base

)

*

+
