Mounting/removing devices

6452_en_11 Phoenix Contact 123 / 188

Removal When removing a terminal, proceed as shown in Figure 11-16:

• If adjacent terminals belong to the 24 V DC or 120 V AC/230 V AC area:

Remove the adjacent connectors of the neighboring terminals (Figure 11-13 on

page 120). This prevents the potential routing knife contacts and the keyway/feath-

erkey connection from being damaged.

• Lift the release flaps towards the center of the power-level terminal (Figure 11-16,

detail A).

• Remove the power-level terminal by uniformly pulling the release flaps straight back

from the DIN rail (detail B). If you have not removed the connector of the adjacent

terminal on the left, remove it now in order to protect the potential routing feather-

keys and the keyway/featherkey connection.

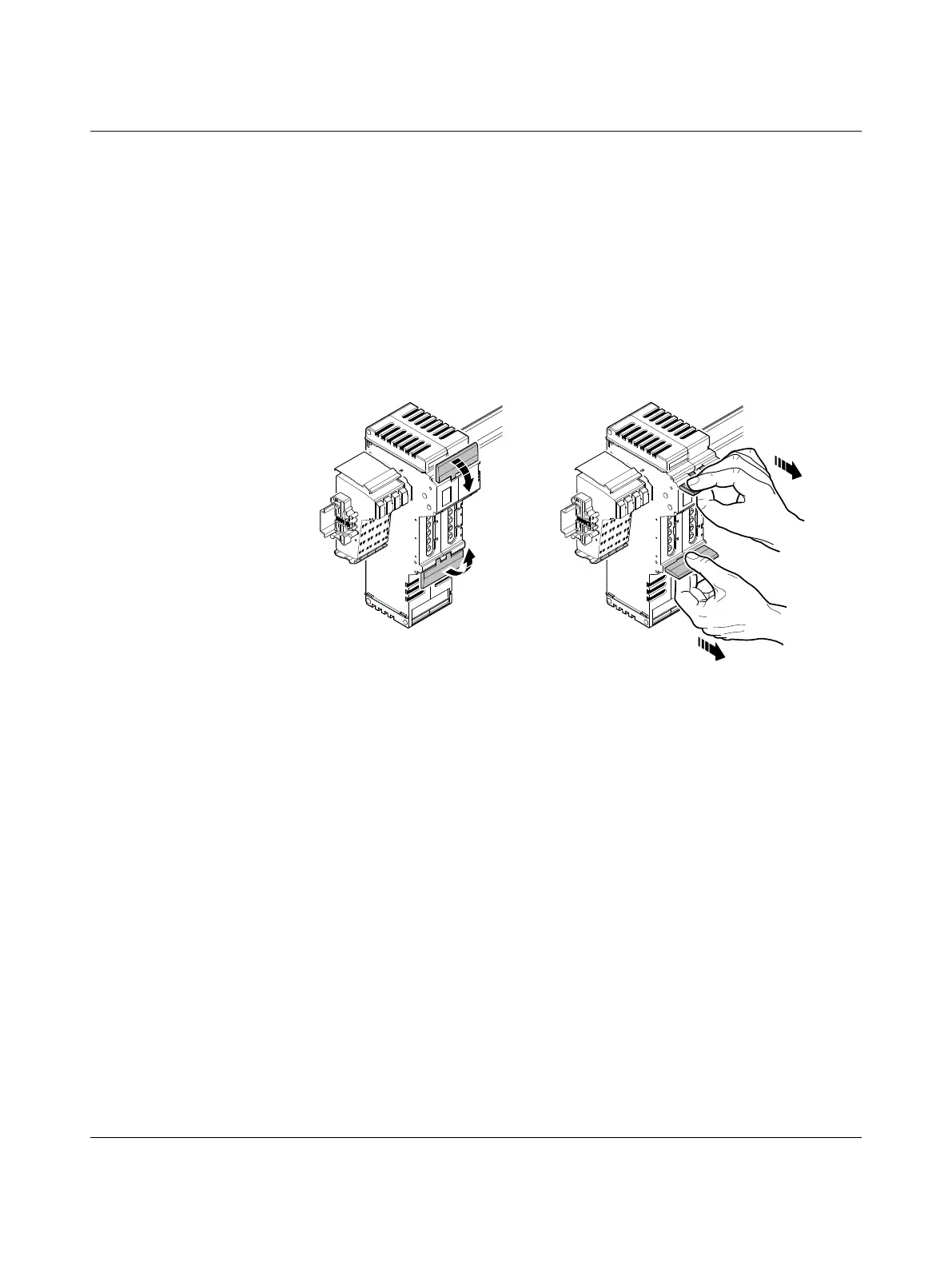

Figure 11-16 Removing a power-level terminal

A B
