IL SYS INST UM E

108 / 188 Phoenix Contact

6452_en_11

11.2.1.2 Mounting distances for terminals with fiber optic connections

The bending radius and the space required for mounting terminals with fiber optic con-

nections depends on the fiberoptics used. Furthermore, the connector that is used af-

fects the mounting distances.

Observe the instructions in the "IBS SYS FOC ASSEMBLY" fiber optic installation

guidelines when determining the mounting distances.

According to the guidelines valid at the time of publication (Revision 03, 01/2007) the

minimum bending radius for individual wires is 30 mm, and the minimum bending radius

for a cable is either 50 mm or 65 mm depending on the cable. Using a fast connection

connector with bend protection, for example, results in the following mounting distances:

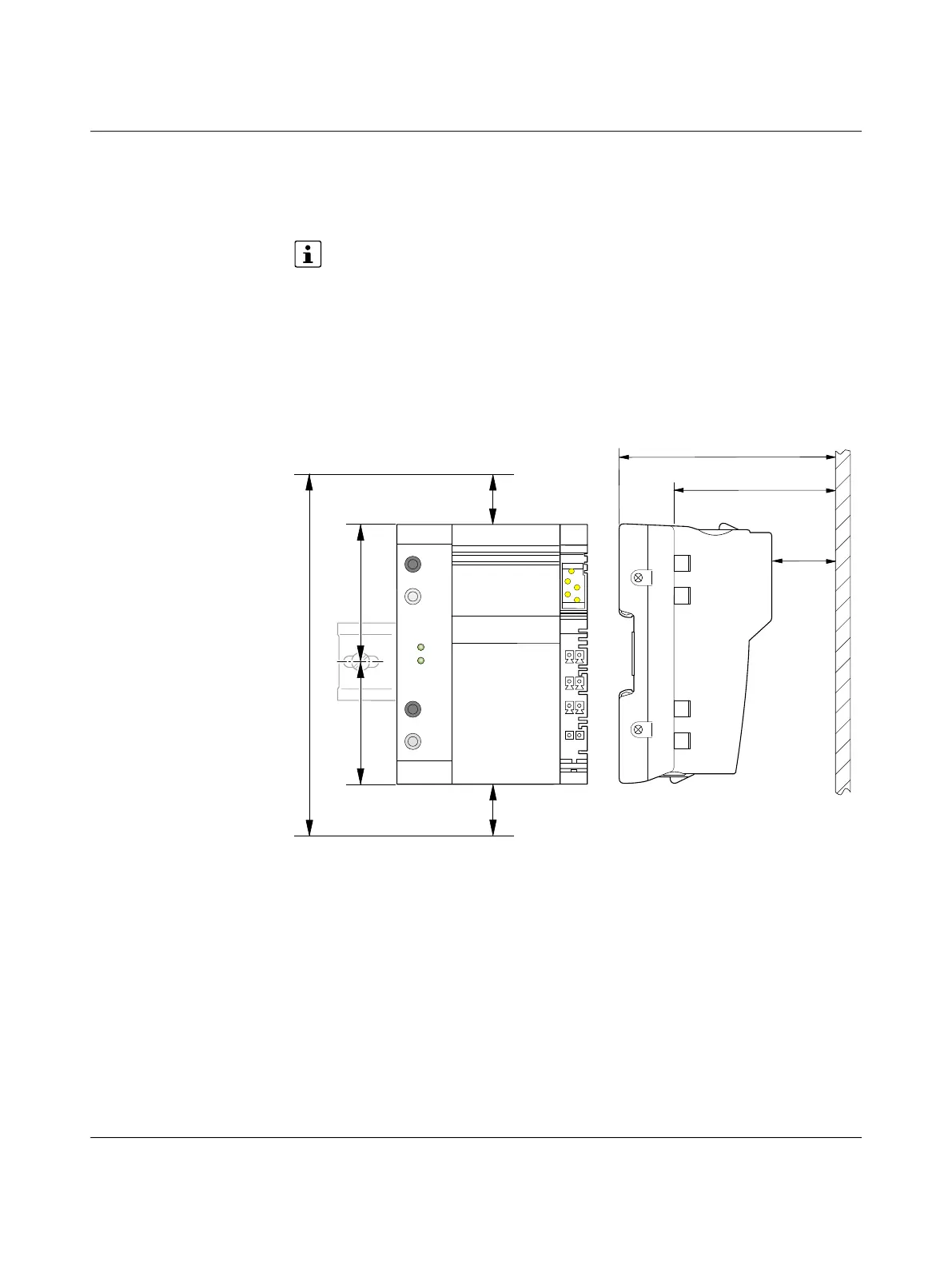

Figure 11-5 Example mounting distances for the IBS IL 24 BK-LK-PAC bus coupler

when using individual wires (bending radius 30 mm)

(in mm)

OUT

IN

OUT

IN

REMOTE IN

REMOTE OUT

FO1

FO2

BA

RD

RC

LD

BK-LK

UL

100

66,5

28,5

30

40

190

60
