IL SYS INST UM E

106 / 188 Phoenix Contact

6452_en_11

Mounting position No specific mounting position is specified for the Inline Block IO modules or Inline termi-

nals. However, please refer to the ambient temperatures and any other special require-

ments (such as derating) specified in the data sheets.

Analog terminals are a special case. The accuracy data specified in the data sheets for

these devices refers to the documented mounting position (usually horizontal DIN rail;

Figure 11-3, detail A). The typical tolerance values for the relevant configurations are

determined in this mounting position. Experience from previous testing indicates that the

typical tolerances of analog terminals are slightly affected by the mounting position. This

means that another mounting position is also possible in principle.

To ensure sufficient mechanical fixing for the Inline station or Inline Block IO module

when mounting on a vertical DIN rail (Figure 11-3, detail B), we recommend the

E/AL-NS 35 end clamp. This prevents the station or module from slipping down, particu-

larly in the event of vibration.

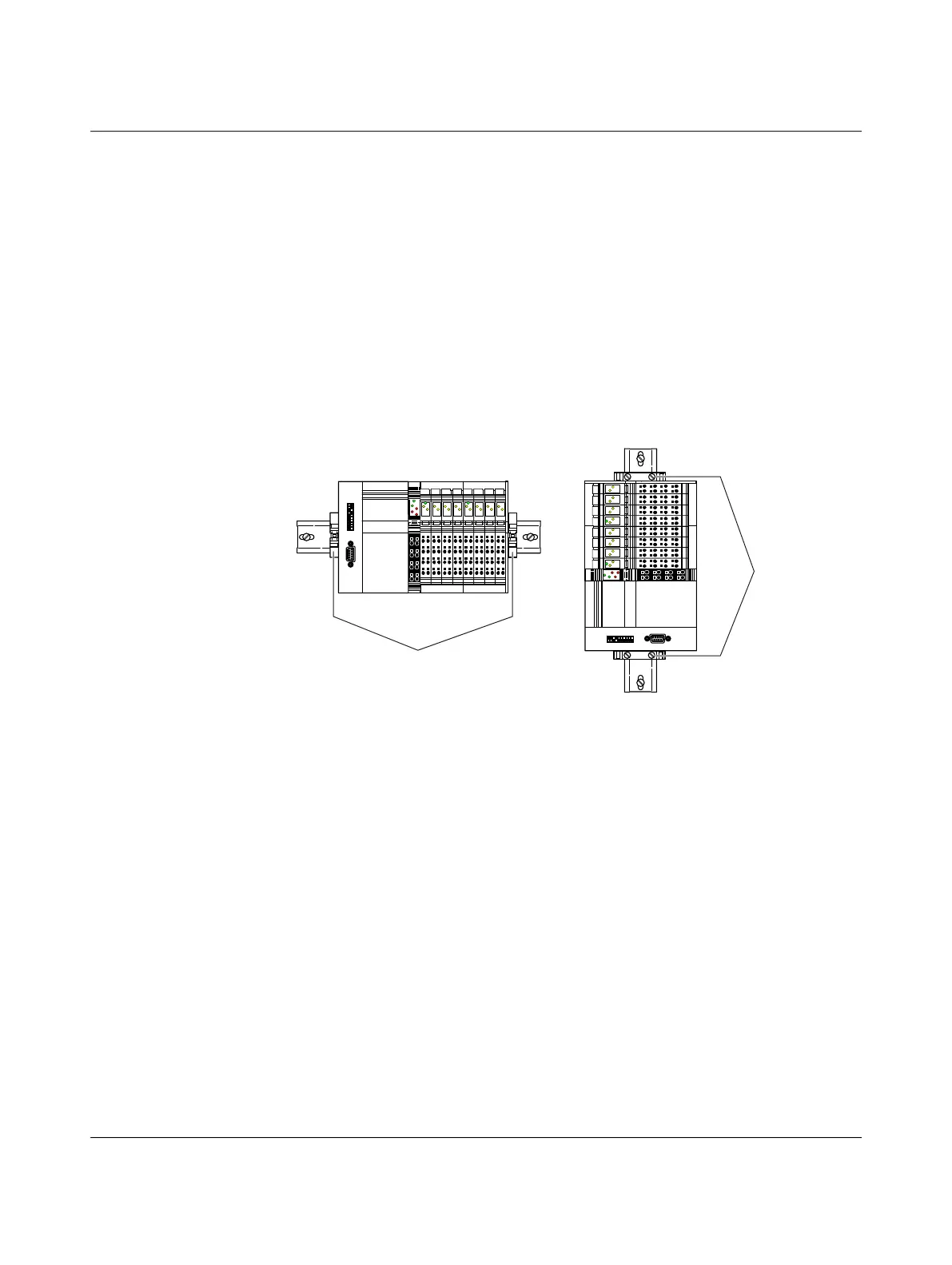

Figure 11-3 Mounting positions for an Inline station

A

12

1

2

3

4

1

2

3

4

US

BF

FS

FN

PB-DP

UM

1

2

D

DI8

1

2

1

2

1

2

1

2

D

DI8

1

2

1

2

1

2

CLIPFIX 35

CLIPFIX 35-5

B

12

1

2

3

4

1

2

3

4

US

BF

FS

FN

PB-DP

UM

1

2

D

DI8

1

2

1

2

1

2

1

2

D

DI8

1

2

1

2

1

2

E/AL-NS 35
