Diagnostic and status indicators

6452_en_11 Phoenix Contact 103 / 188

Assignment between status LED and input/output

The figure shows the general principle of the assignment of a status LED to its input or

output.

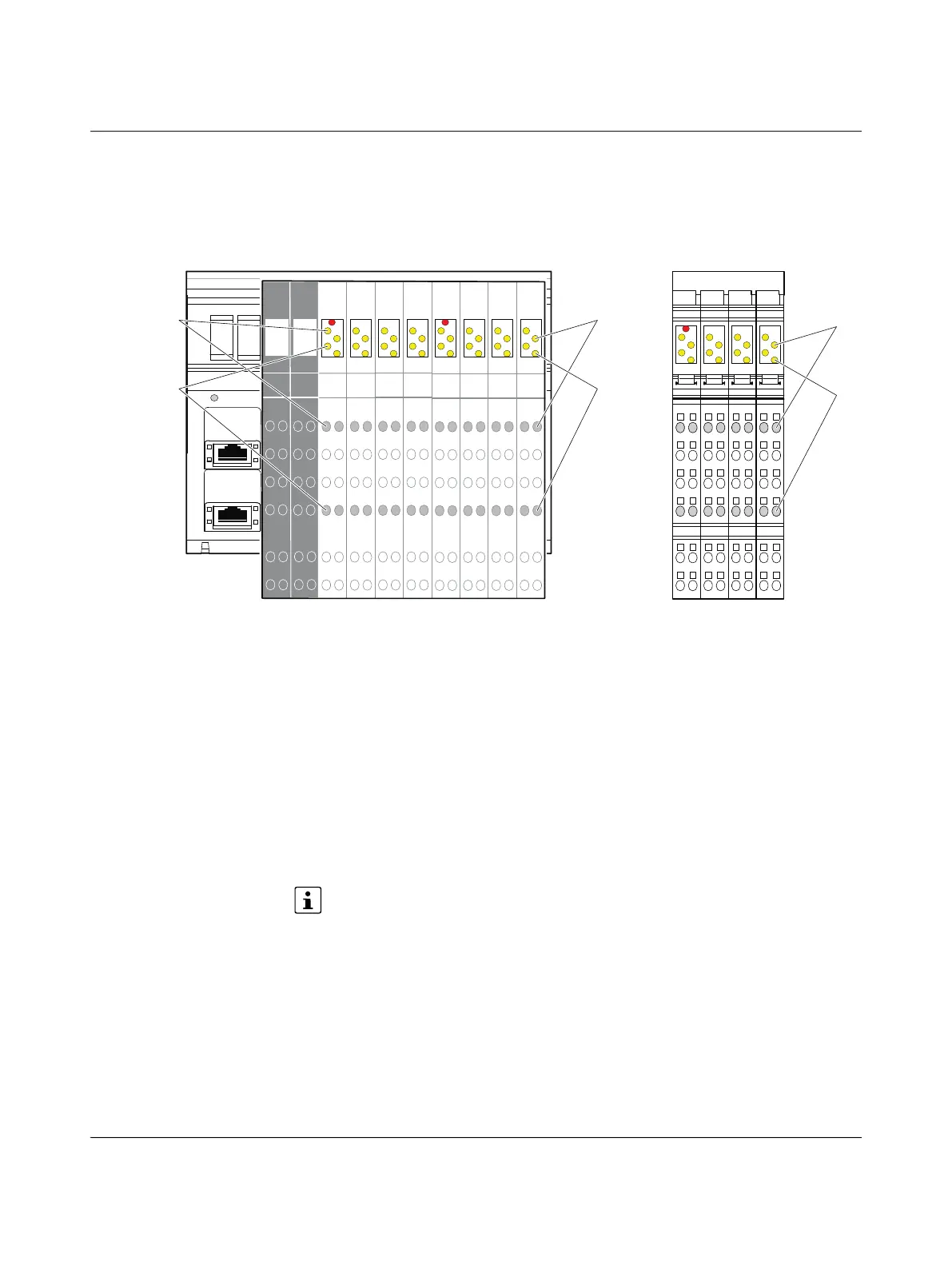

Figure 9-8 Assignment between status LED and input/output

Each slot in the LED area is labeled with the function, in Figure 9-8, e.g., IO1, IO2, ... I3,

I4.

The principle of assignment between the LED and terminal point is the same for all slots.

For each slot with four inputs or outputs, the following LEDs are assigned to the following

terminal points:

On the module in Figure 9-8, e.g., with 4/2, LED 2 on slot I4 is indicated. According to the

data sheet, the LED belongs to input 30 at terminal point I4.2.1 (slot I4, terminal

point 2.1).

For every module, the assignment is specified in the module-specific data sheet.

1

2

3

4

E

I1

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

4/2

4/4

I2

I3

I4

1

2

3

4

E

IO1

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

E

I1

1

2

3

4

1

2

3

4

1

2

3

4

IO2

IO3

IO4

I2

I3

I4

4/2

4/4

1/1

1/3

LED 1 Terminal point 1.1

LED 2 Terminal point 2.1

LED 3 Terminal point 1.4

LED 4 Terminal point 2.4
