The diagnostic bits described in “Bit assignment of diagnostics slot 1” on page 52 are
displayed in the “Device Details” window if slot 1 has been selected in the “Bus Structure”
window.

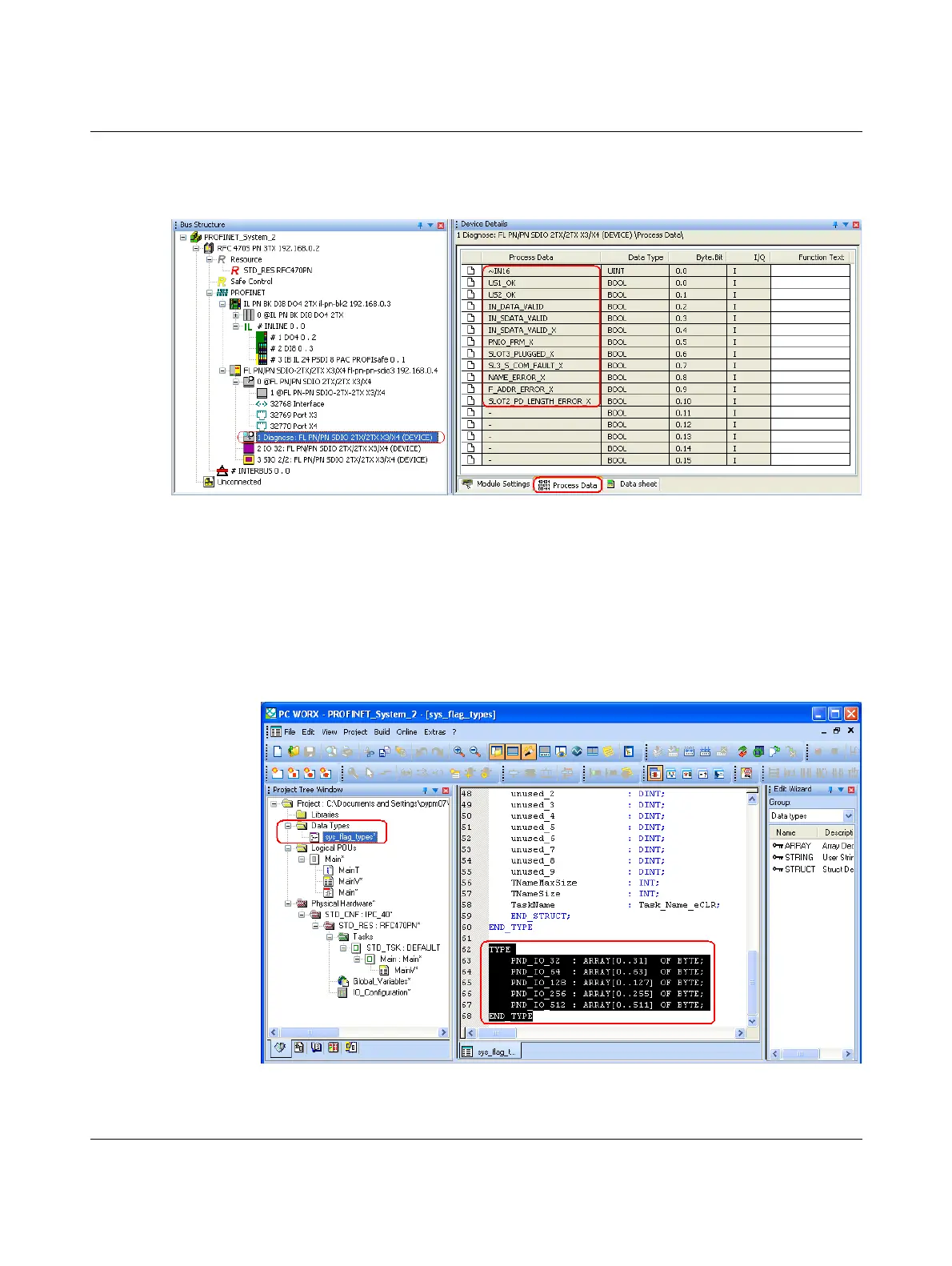

Figure B-5 Diagnostic bits of the safe PROFINET gateway
B 2.2 PC Worx – Parameterization of the process data area
(slot 2)
The process data area, which can be parameterized by means of the module used in slot 2,
cannot be addressed individually. You can only access the data in a block. Please see the
example below.
We recommend using the following set of data types pre-defined in PC Worx.
Figure B-6 User-defined data type: field (ARRAY)
