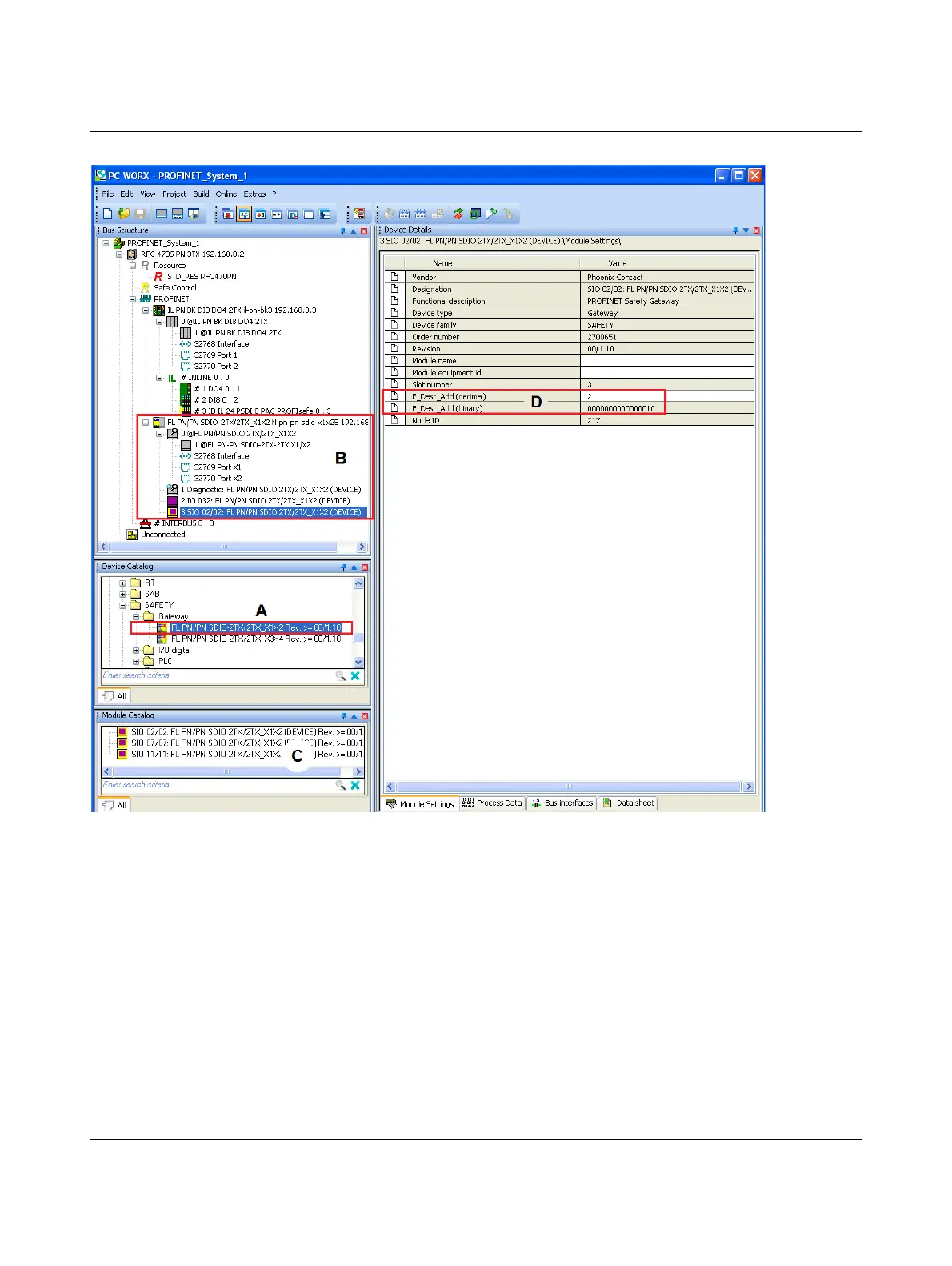

Figure B-3 PROFINET_System_1: safe PROFINET gateway
In Figure B-3 on page 74, the part of the safe PROFINET gateway to be inserted in the bus
configuration for PROFINET_System_1 is marked (A) in the “Device Catalog” window. The
“Bus Structure” window displays the device in full, including the ports and slots 1 to 3 (B).
– Slot 0 is used for PROFINET functions.
– Slot 1 is used for diagnostics (see Figure B-5 on page 76 and “Bit assignment of
diagnostics slot 1” on page 52).
– Slot 2 offers the option of varying the amount of process data to be transmitted using
the modules available in the module catalog (see item D/E in Figure B-4 on page 75 and
“PC Worx – Parameterization of the process data area (slot 2)” on page 76).
