Control panel
109908_en_02 Phoenix Contact 65 / 150
9.2.3 Rotary switch in “STATUS” position
“STATUS” shows the active status of the device. To see the status, you need to turn the
rotary switch to “STATUS”. If there is no signal (SPEED1, SPEED2), the display shows
0.0 Hz. If there is a signal, the display shows the rising frequency value. The LED “L” or
“R” turns on depending on the given signal and the corresponding direction setting. The
value displayed on the control panel is fixed when the given signal reaches the stored
value. The display shows the decreasing value when there is no more input signal. When
the ramp time is over, the display shows 0.0 Hz again. Any received signal is shown as
SP1, SP2 on the control panel for 1 s every 4 s.
This parameter shows different status values as listed below. Change the parameter with
<UP> or <DOWN>.

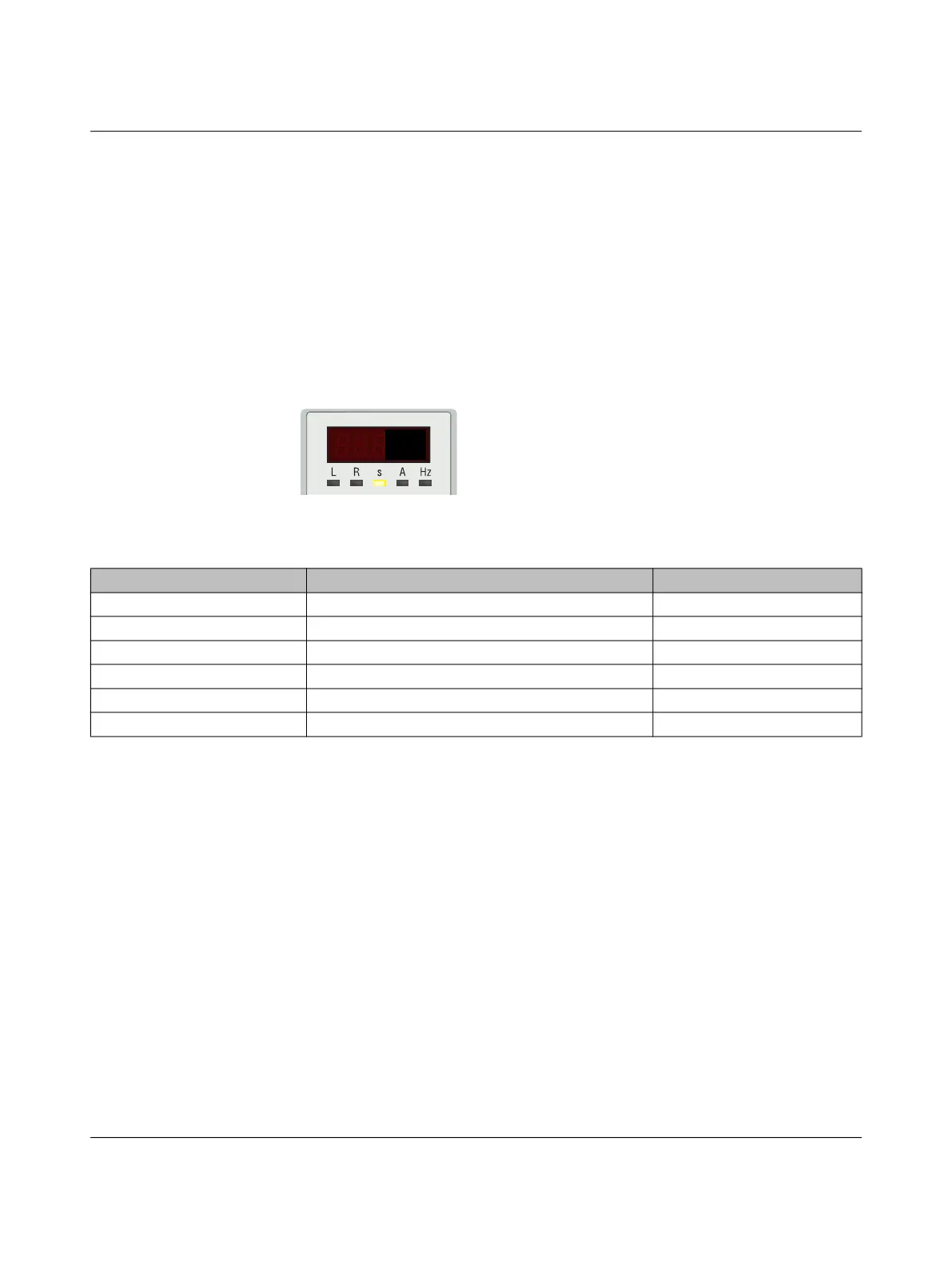

Figure 9-2 Status indicator
The numbers 1 ... 5 are based on the digits 1 ... 5 listed in the following table.
For further information, see Section “Rotary switch in “STATUS” position” on page 77.
1 2 3 4 5
Table 9-2 Status description
Status LED Displayed value
Output frequency LED “L” or “R” on in case of a signal, LED “Hz” on -
Output current LED “L” or “R” on in case of a signal, LED “A” on -
Output voltage LED “L” or “R” on in case of a signal “v” shows on digit 5
Output power factor (cos phi) LED “L” or “R” on in case of a signal “q” shows on digit 1
Active power [kW] LED “L” or “R” on in case of a signal “P” shows on digit 1
IGBT temperature LED “L” or “R” on in case of a signal “°C” shows on digits 1 and 2
