Accessories and replacement parts
109908_en_02 Phoenix Contact 51 / 150
8 Accessories and replacement parts
8.1 Monitoring relay
Item EMD‐BL‐PTC‐PT (item no. 2906253) from our product range can be used as a
monitoring relay.
8.2 EMC shielding plate
EMC shielding plate for use with shielded cable and steel cable tie WT-STEEL S 4,6 × 150
(item. no. 3240807).
If you use shielded control lines, strip the end of the wire. Attach the shielded cable
end with the cable tie (item no. 3240807) by putting the cable tie through the loops.
Connect the unshielded cables to the control terminal.
Table 8-1 Accessories

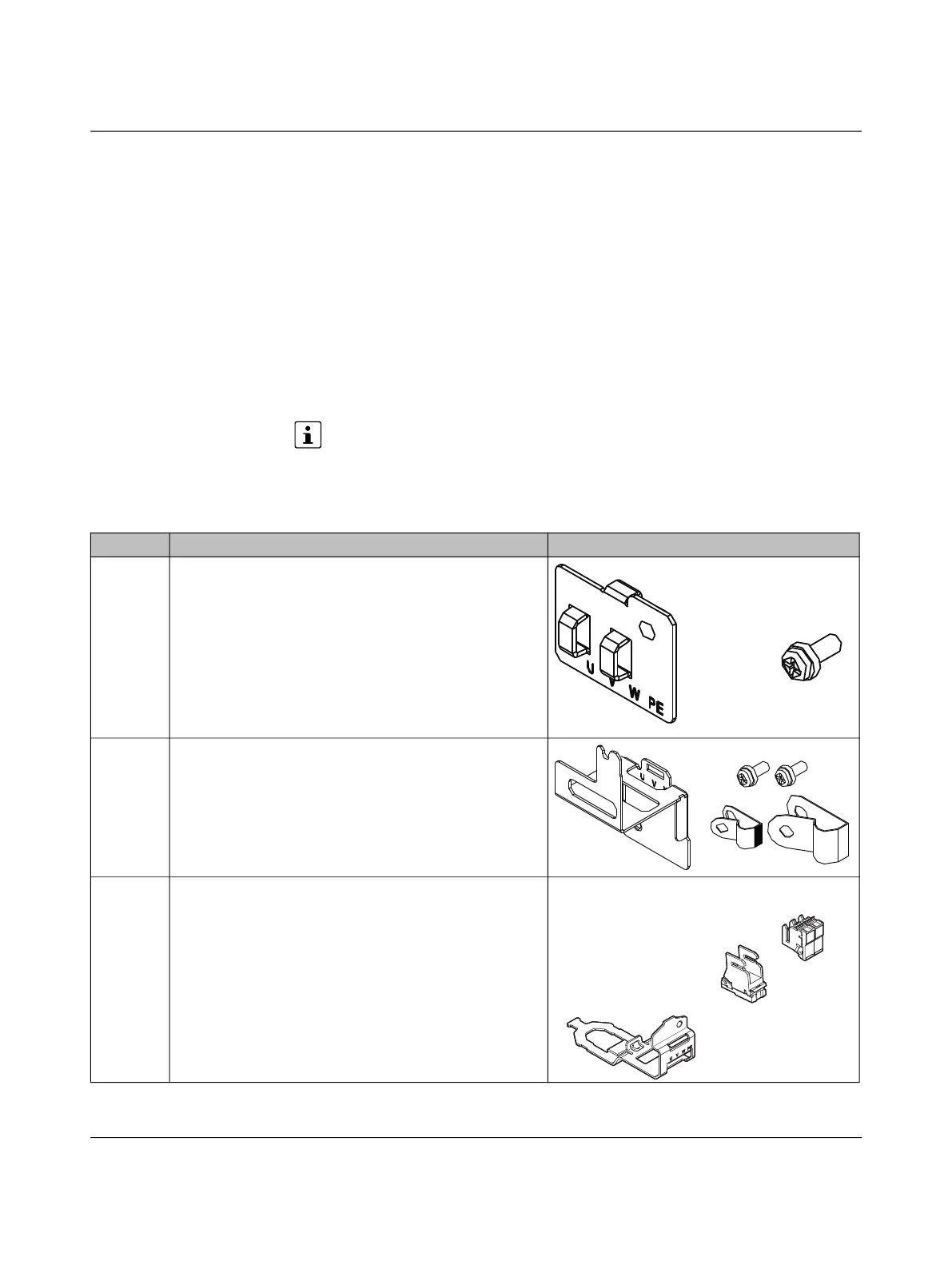

Housing Model of EMC shielding plate Example drawing
A
B
EM-CSS-CONTROLSHIELD-35 (item no. 1276904)
EM-CSS-CONTROLSHIELD-45 (item no. 1276909)
A
B
EM-CSS-MOTORSHIELD-35 (item no. 1276914)
EM-CSS-MOTORSHIELD-45 (item no. 1276916)
A
B
EM-CSS-SHIELDING-SET-SCC-35 (item no. 1451206)
EM-CSS-SHIELDING-SET-SCC-45 (item no. 1451208)
