CONTACTRON Speed Starter

70 / 150 Phoenix Contact

109908_en_02

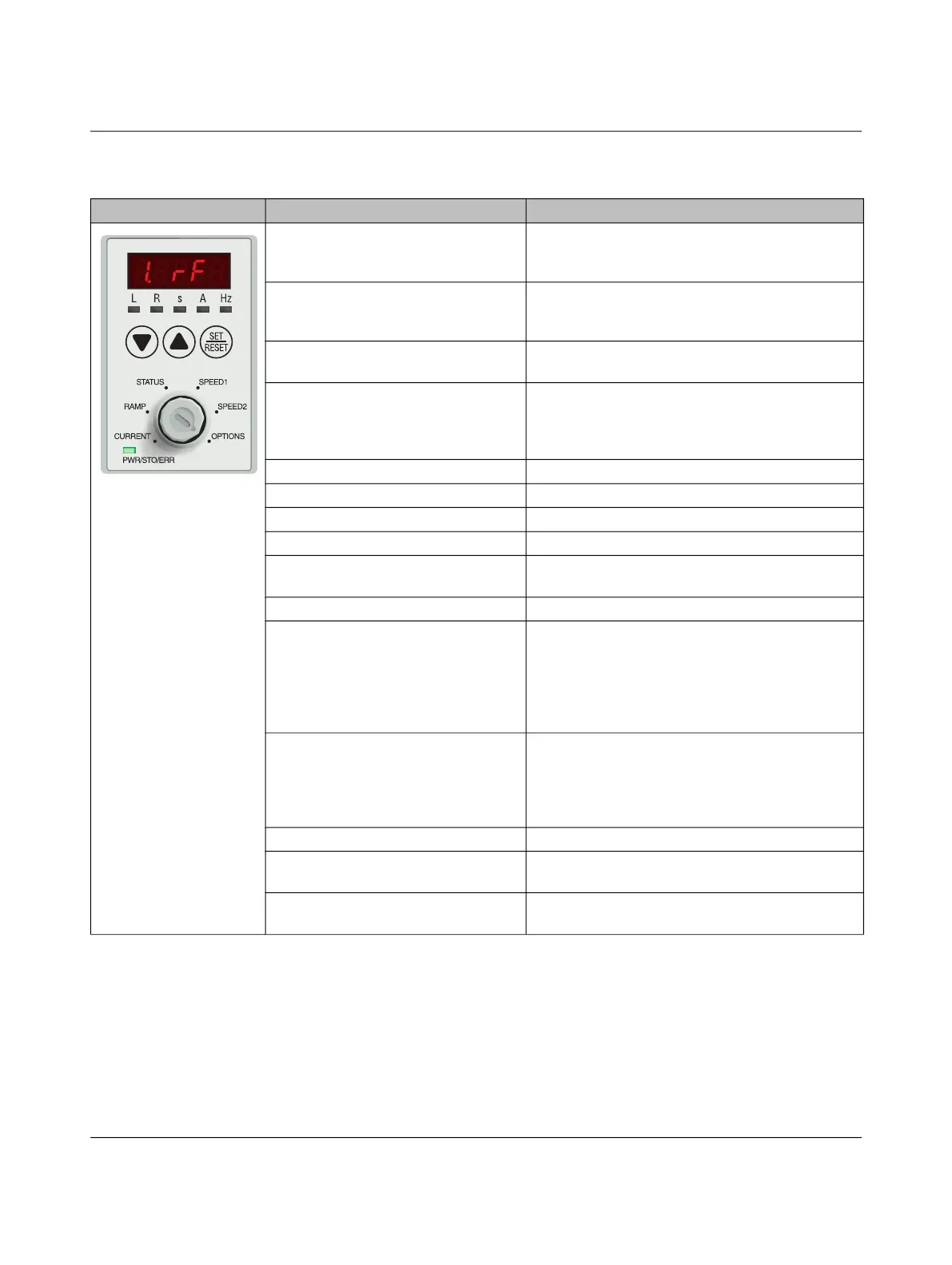

Table 9-3 Options and their description up to version 1.02

Options Description

Motor rated frequency (0 Hz ... 500 Hz) “1. rF - motor rated frequency” is shown on the

display, in accordance with the motor rating plate

specifications.

Motor rated voltage

1-phase device: 110 V ... 240 V

3-phase device: 220 V ... 480 V

“2. rv - motor rated voltage” is shown on the

display, in accordance with the motor rating plate

specifications.

Highest output frequency

(0 Hz ... 500 Hz)

“3. oF - highest output frequency” is shown on the

display.

Carrier frequency (4 kHz, 8 kHz,

16 kHz, AUTO)

“4. PF - pulse frequency” is shown on the display.

Set “AUTO” for the derating of the carrier

frequency, settings 4, 8, 16 are fixed values

without derating.

U/f characteristic curve (linear/square) “5. vF - vF wave form” is shown on the display.

Start boost (0% ... 10%) “6. bo - start boost” is shown on the display.

Voltage lift (0% ... 10%) “7. vL - voltage lift” is shown on the display.

Slip compensation (0% ... 10%) “8. Sc- slip compensation” is shown on the display.

PTC/AI, thermal contact, and

thermistor relay (no/tconc/tcono/AI)

“9. AI -AI tc active” is shown on the display. The

default setting is “no”.

Analog input circuit (volt/curr) “10. cv - AI input mode” is shown on the display.

Parameter lock (yes / no) “11. PL - parameter lock” is shown on the display.

When the parameter lock is set to “yes”, only the

stored value is shown on the display and via the

LEDs while turning the rotary switch. You cannot

change the stored value until the parameter lock is

set to “no”.

Parameter reset “12.rES - parameter reset” is shown on the display.

The default setting is “no”. When “rESEt” is shown

on the display, change the setting to “yes” and then

press <SET/RESET> to reset. After resetting,

“12.res - parameter reset” returns to “no”.

CONTACTRON Speed Starter type “13. Id - identity code” is shown on the display.

Firmware version “14.vEr - firmware version” is shown on the

display.

Relay output (warn/error/both) “15. Fc - feedback contact” is shown on the

display.
