Control panel

109908_en_02 Phoenix Contact 63 / 150

9.2 Operating the control panel

If you turn the rotary switch while the value displayed on the control panel still

flashes, the value is not stored into the device.

If you change a value and do not press any button for more than 30 s, the stored val-

ue appears again and does not flash any more.

Press <UP> or <DOWN> for less than 1 s first. This does not change the value, but

it starts to flash. Pressing one of these buttons again or for longer than 1 s increases

or decreases the value depending on the button you press.

Press <SET/RESET> for 0.5 s ... 3 s to acknowledge an error.

Pressing <UP> or <DOWN> changes the value by 0.1 per step.

Pressing <UP> or <DOWN> for longer than 0.5 s changes the value by 0.5 per step.

Pressing for longer than 2 s changes the value by 1.0 per step.

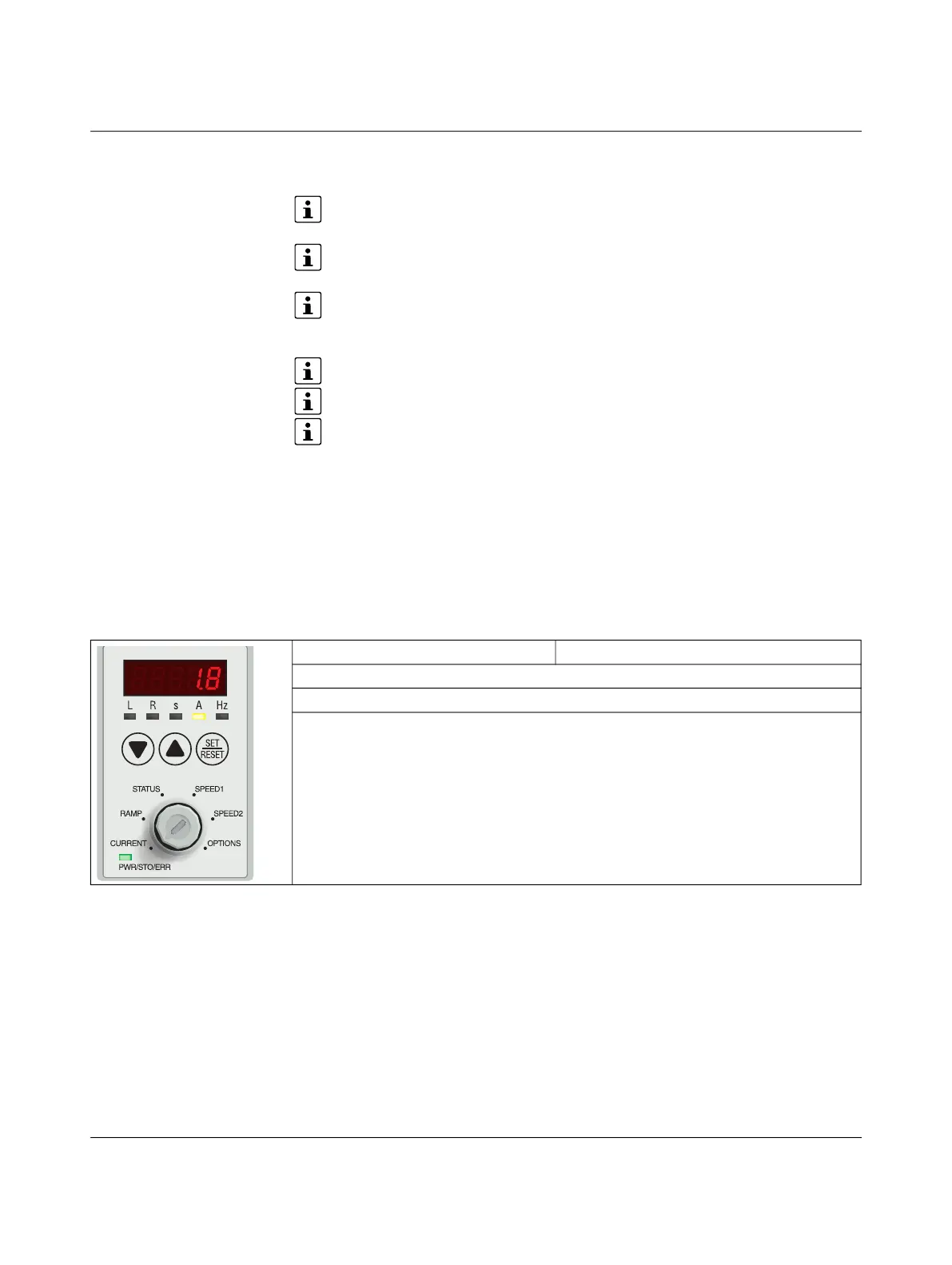

9.2.1 Rotary switch in “CURRENT” position

LED “A” is on and the display shows the parameterized motor rated current [A]

(see 10.1 on page 75).

The default value is the highest value that can be set for the respective performance

class.

You can set the parameter for the “CURRENT” level during operation.

For a lower current, press <DOWN>. For a higher current, press <UP>.

The value in the display changes (steps of 0.1) and starts to flash.

Press <SET/RESET> to store the value.

The displayed value stops flashing and is stored.
