Replacing components

109484_en_01 PHOENIX CONTACT 77 / 94

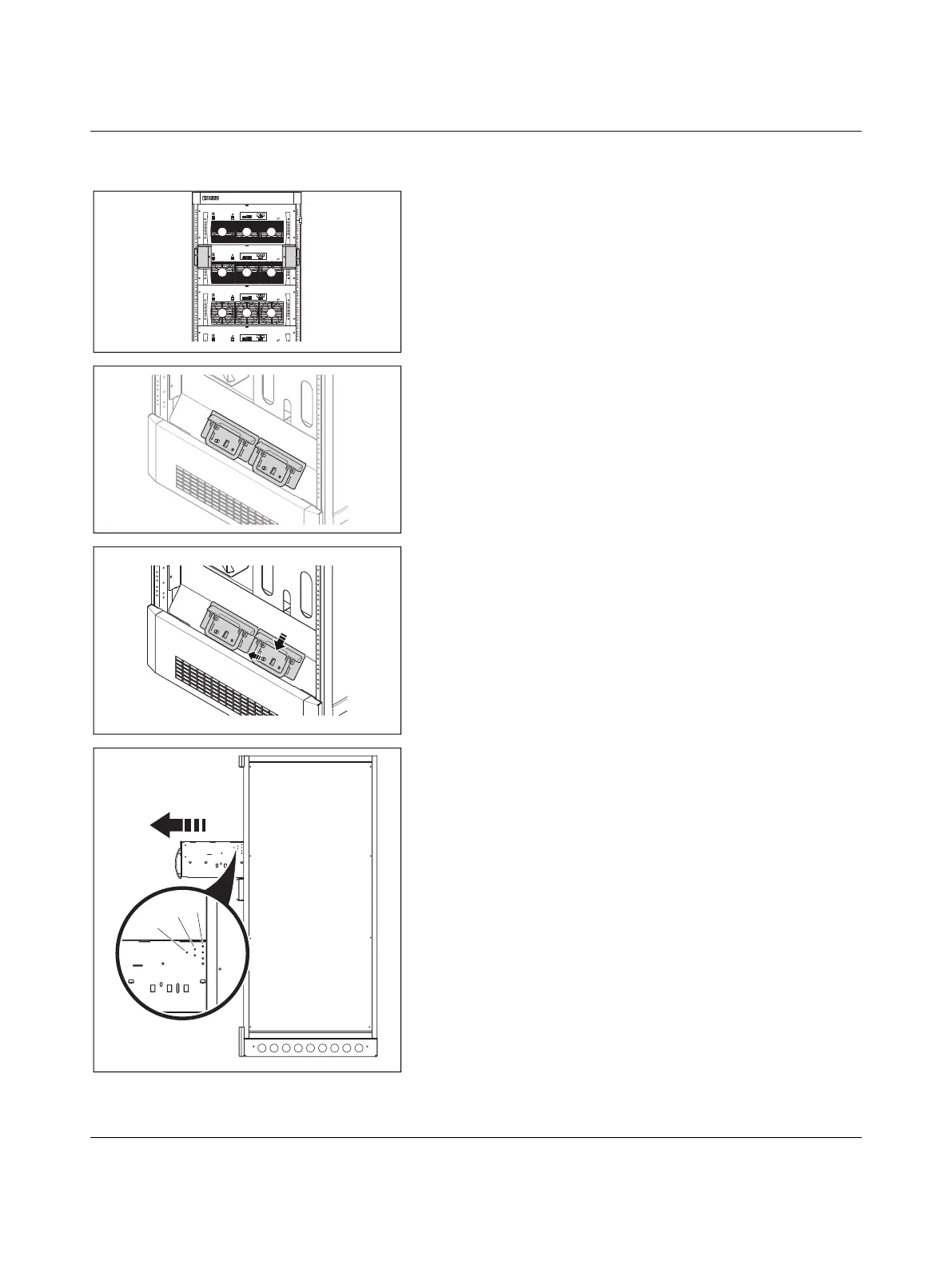

• Check the locking for correct functioning.

You should not be able to remove the assembly equipment again

without pulling the locking pin.

4. Use the carrying handles.

The carrying handles are hooked into a panel in the bottom area of

the system control cabinet.

• Pull the spring-loaded locking pin as far as it will go to remove the

carrying handles from the panel.

• Move the carrying handle downwards. To do so, hold the spring-

loaded locking pin pulled as far as it will go.

5. Carefully pull the DC power module out of the module shaft to the

third level of the three-step marking.

The marking is visible on both sides of the DC power module.

Removing DC power modules [...]
