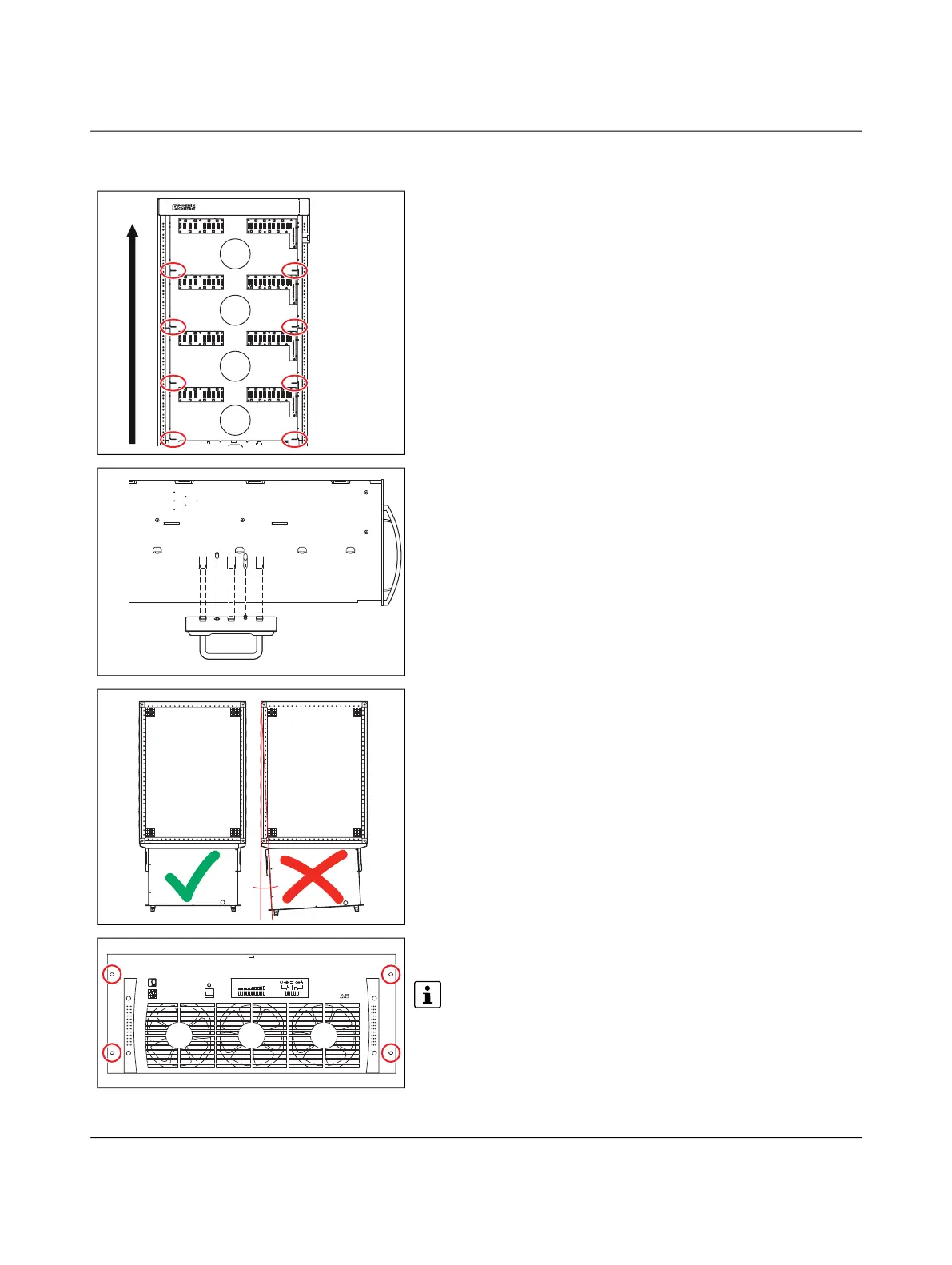

6. Inserting the DC power module

• Carefully place the DC power module on the guiding plates on both

sides of the module shaft.

• Equip the DC power modules from bottom to top.

The encircled areas mark the guiding plates of the module shafts.

7. Insert the DC power module into the module shaft until reaching

the carrying handles hooked in.

8. Remove the carrying handles before fully inserting the DC power

module.

9. Fully insert the DC power module into the module shaft. Insert the

DC power modules parallel to one another. Be careful not to tilt

them.

10. Use the mounting screws to screw the front plate onto the DC pow-

er module.

Proceed as described above with additional DC power modules

1

The shown DC power modules are examples.

Inserting DC power modules [...]

1

2

3

4

10

50 100

%

60kg

CHARX POWER K87.5 W Ord.No.1162690
