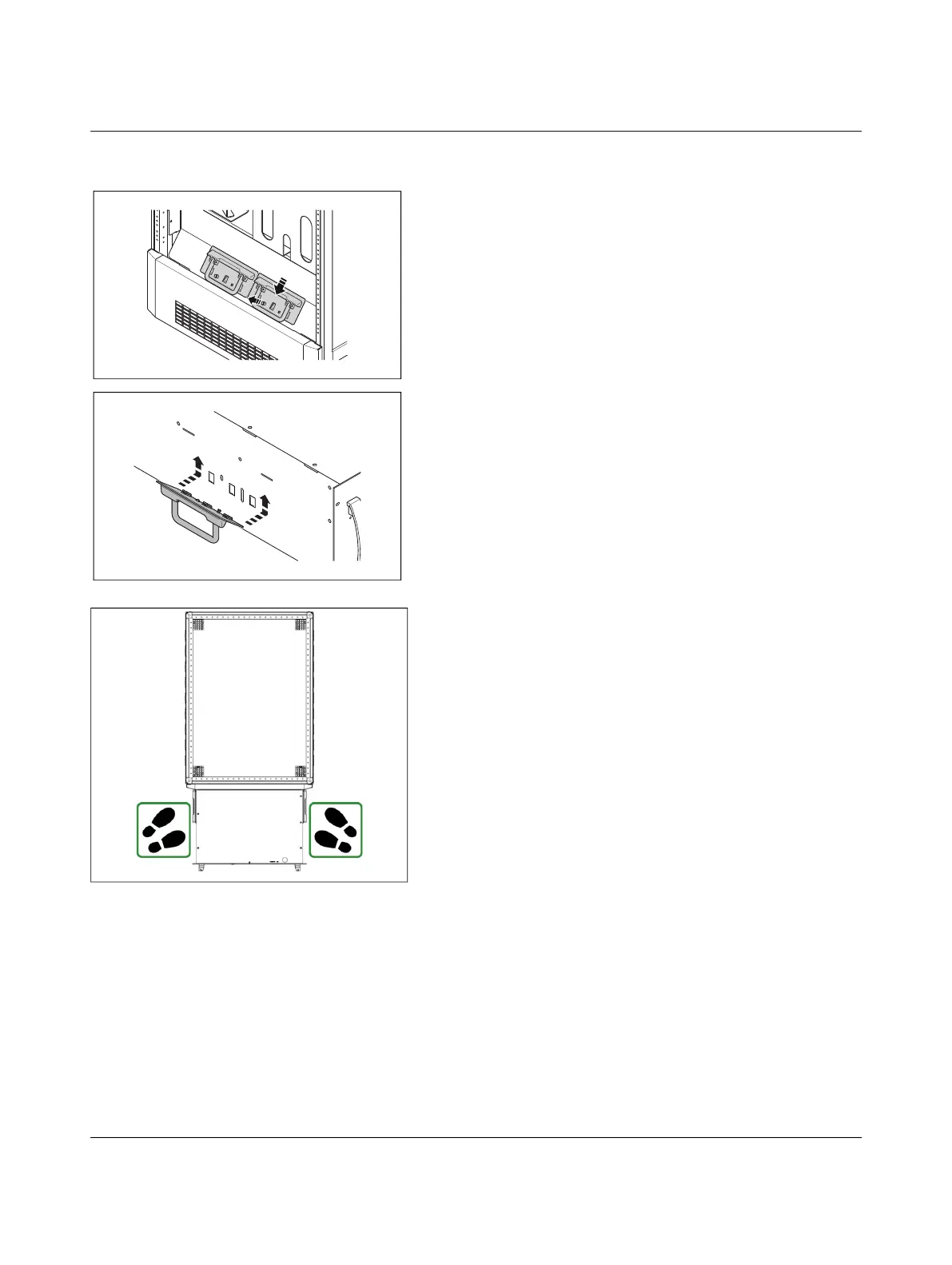

• Pull the spring-loaded locking pin as far as it will go to remove the

carrying handles from the panel.

• Move the carrying handle downwards. To do so, hold the spring-

loaded locking pin pulled as far as it will go.

• Hook the carrying handles into the left and right side of the DC

power module.

To do so, move the carrying handles upwards until the locking pins

lock.

• Check the locking for correct functioning.

You should not be able to remove the carrying handles again with-

out pulling the locking pin.

Position of the person performing the work 5. Lift the DC power module.

• It takes at least two persons to lift the DC power module.

As an alternative, you can use a lifting device.

• Observe the specified positions.

• Do not linger below the pulled-out DC power module.

Inserting DC power modules [...]
