CHARX PS...87.5KW

62 / 94

PHOENIX CONTACT 109484_en_01

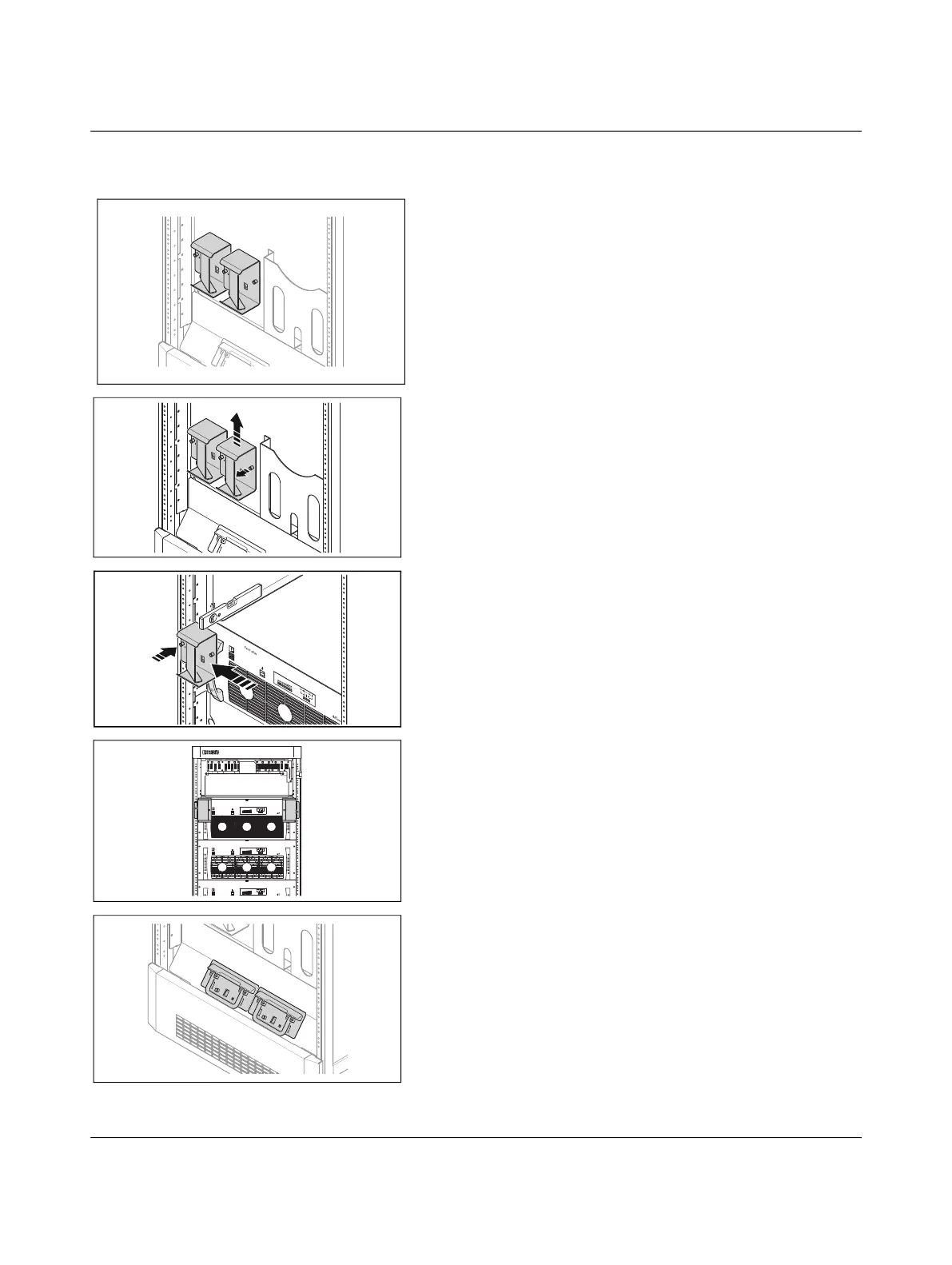

3. Use the assembly equipment.

The assembly equipment is hooked in the bottom area of the sys-

tem control cabinet.

• Pull the spring-loaded locking pin as far as it will go to remove the

assembly equipment from the panel.

• Move the assembly equipment upwards. To do so, hold the spring-

loaded locking pin pulled as far as it will go.

• Align the assembly equipment with the guide plates of the module

shaft to be equipped.

To do so, push the guide bolts of the assembly equipment into the

hole pattern of the side rails.

Mount the assembly equipment at the same height.

• Check the locking for correct functioning.

You should not be able to remove the assembly equipment again

without pulling the locking pin.

4. Use the carrying handles.

The carrying handles are hooked into a panel in the bottom area of

the system control cabinet.

Inserting DC power modules [...]

A

B

CHARX POWER 87.5KW

1

0

5

0 100

B

A

CHARXPOWER 87.5KWOrd.No.1162690

10

50 100

%

60kg

CHARXPOWER 87.5KWOrd.No.1162690

10

50 100

%

60kg

CHARXPOWER 87.5KWOrd.No.1162690

10

50 100

%

60kg
