Mounting
109484_en_01 PHOENIX CONTACT 41 / 94
4.3 Mounting the system
CAUTION: Risk of cutting from incorrect handling
• Open the packaging using a suitable tool.
• Take out the documents and mounting parts.
• Take the components out of the packaging with at least two persons.
Fixing of individual control cabinets to one another
When setting up several system control cabinet units, you have to screw the system control
cabinets to one another at the specified points.
Bottom attachment
It is possible to screw the system cabinets to the floor. For this, the system control cabinets
are screwed to the floor at the four attachment points.
Bore dimensions for base

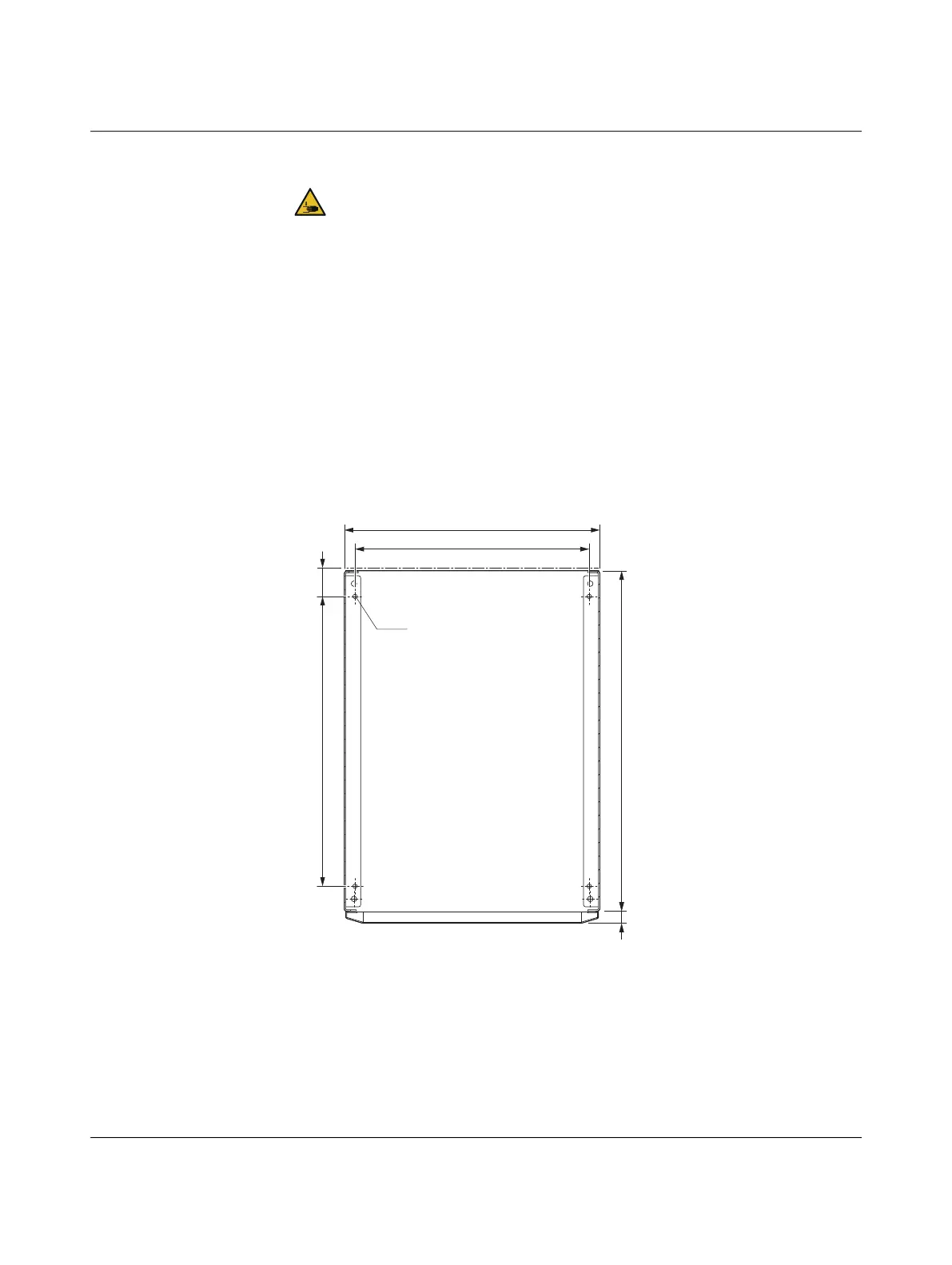

Figure 4-5 Bore dimensions for base
65680
550
600
80030
Ø11
