CHARX PS...87.5KW

32 / 94

PHOENIX CONTACT 109484_en_01

3.5 Protection concepts

For the safety of the connected consumers, the following monitoring and protective func-

tions are integrated in the system:

– Comprehensive self-test during system startup

– Temperature monitoring of main components

– Protection against overvoltage, undervoltage, and overcurrent

– EMC filter

3.6 System behavior in the event of special operating

states

Short circuit behavior

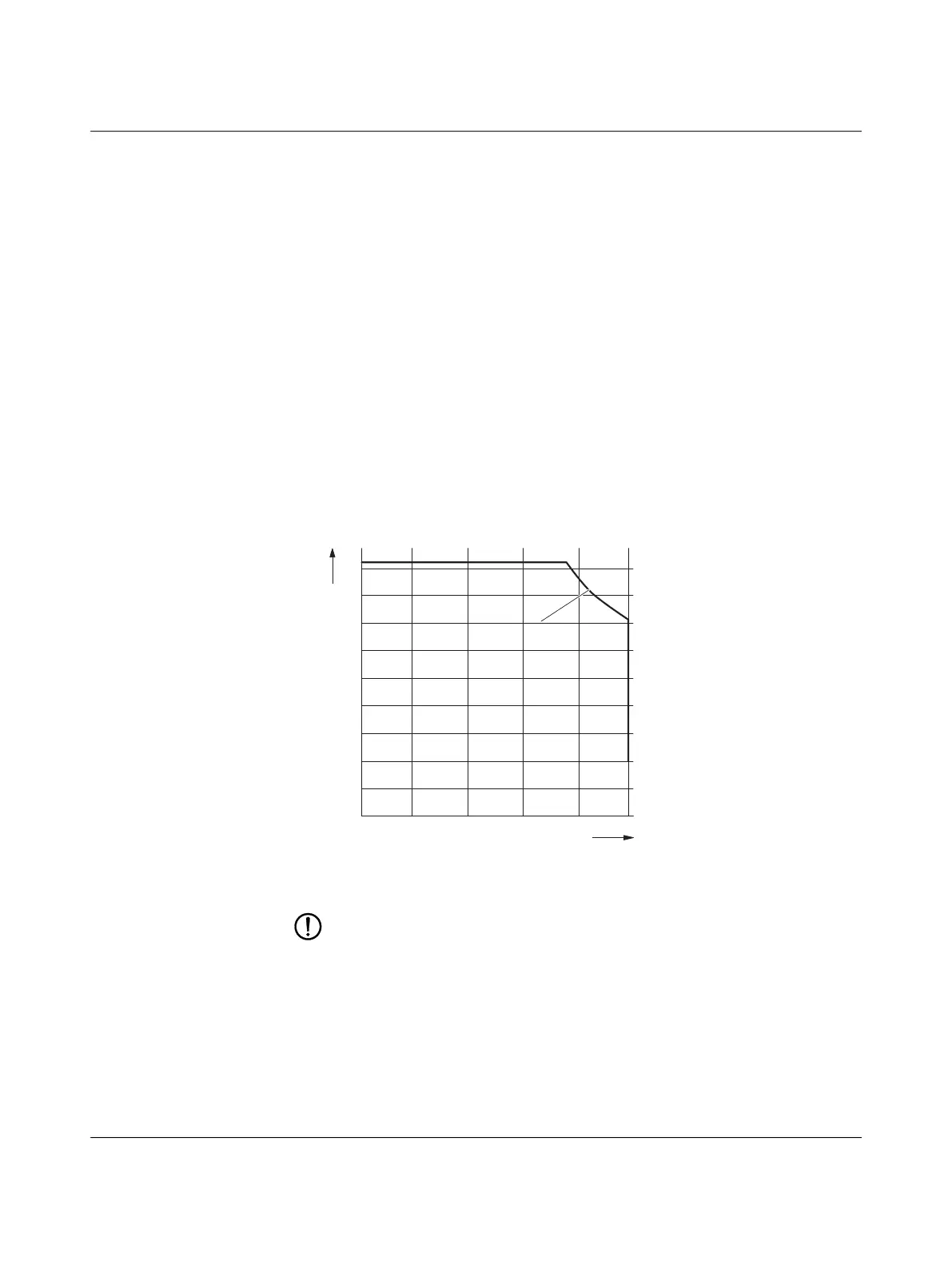

The output current of the system is limited according to the following characteristic curve.

Figure 3-3 Output current limitation

Disconnection from the grid

NOTE: If the four positions of the system are disconnected from the grid, all

positions have to be disconnected at the same time.

Malfunctions of the system

See “Troubleshooting” on page 87

Electric Vehicle Power Supply

CHARX PS/3AC/920DC/87.5KW

UOut [V]

920

700

200

100 125

IOut

[A]

87,5 kW

const. Power
