PHOENIX CONTACT IEDs – IEC 61850
12 / 68
PHOENIX CONTACT 107801_en_00

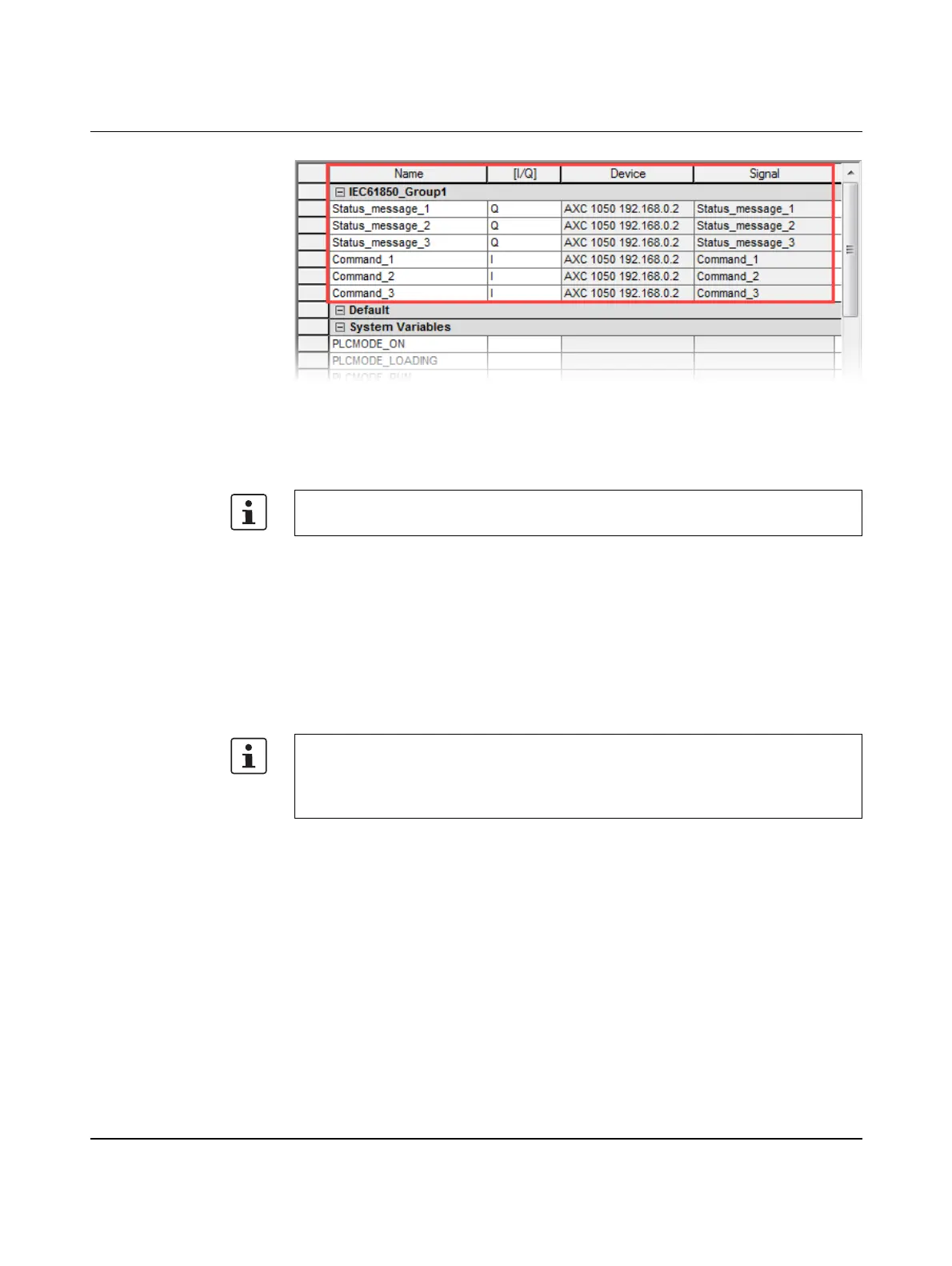

Figure 3-5 IEC-61850 variables of the “IEC61850_Group1” variable group
3.1.3 Creating the program
• Create the program.
For the IEC 61850 communication, PC Worx provides the function blocks
GET_UTC_TIMESTAMP, GET_IEC61850_TIMEQUALITY and
IEC61850_GOOSE_SUB_INFO. You can find information on the function blocks in
Section 3.2.
3.1.4 Assigning process data
• Assign all variables that are not used for IEC 61850 communication to the correspond-
ing appropriate process data.
3.1.5 Compiling the project
• In the “Build” menu, select “Rebuild Project” (for the first time the project is compiled) or
“Make” (if the project has already been compiled in the past).
For additional information on creating a program, refer to the PC Worx software online
help or quick start guide.
Please note:
For variables that are to be used for IEC 61850 communication (see Section 3.1.2), con-
figure the assignments to the desired IEC 61850 data attributes in the
PC Worx IED Configurator software.
