English

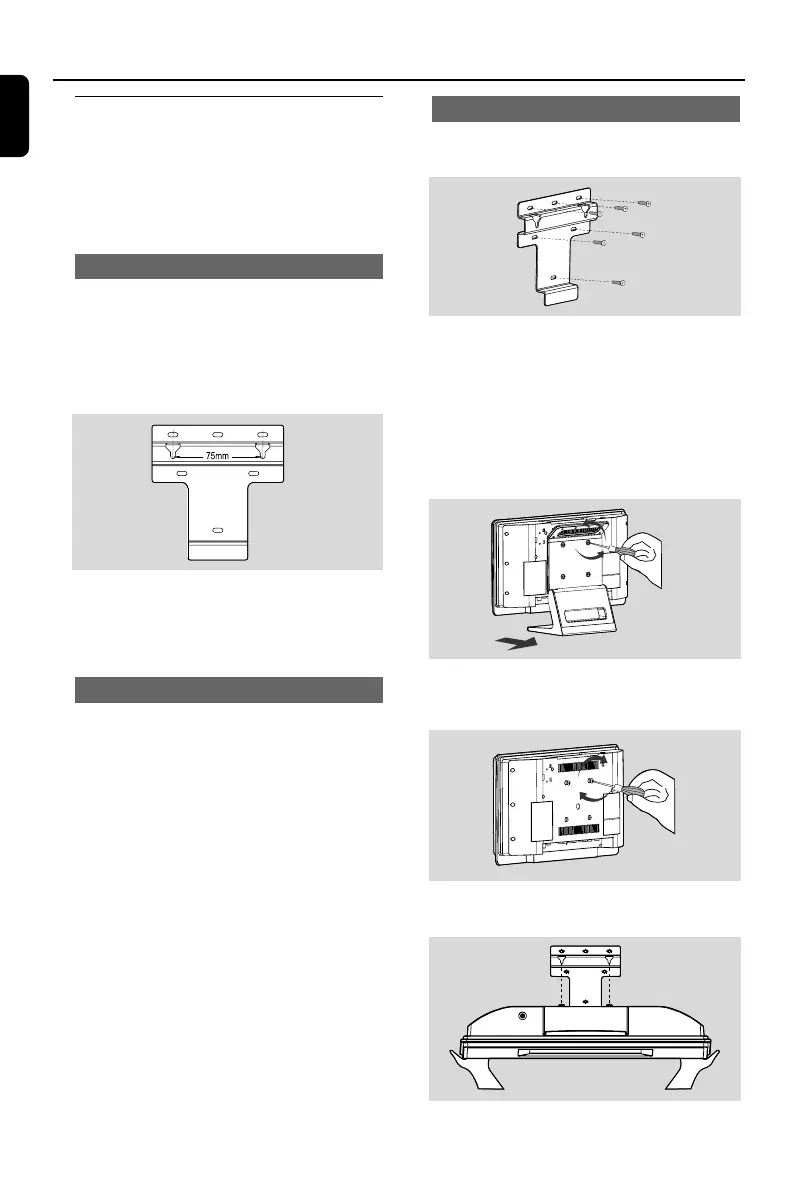

How to mount your MCL888
onto the wall
IMPORTANT!
– The wall mounting instructions are for
the use of the qualified wall mounting
person only!
What parts you need for mounting
– 1 x wall bracket for mounting on the wall (not
supplied)
Note: This wall bracket is universally
standardized and available in the market,
specified with 75mm (2.95 inch) wide between
two anchor holes.
– sufficient number of screws (e.g. 6 screws) for
fixing the wall bracket (not supplied)
– 2 x screws for MCL888 mounting
(available from unscrewing the desk stand)
Preparations
● To find a suitable location for mounting, try your
necessary connections for MCL888, and detach
the TV/FM antenna from MCL888. (See the
chapter Connecting the telescopic TV/FM
antenna).
● Ask a qualified person to help you with the wall
mounting, who should:
– to avoid unexpected damage, learn about the
piping, wiring and other relevant information
inside your walls;
– according to your walls’ materials, decide what
type of screws you need to fix the mounting
brackets and hold the weight of the MCL888;
– according to the drilling requirements, choose
suitable drilling tools;
– take other precautions necessary for the wall
mounting work.
Appendix
What parts you need for mounting
1 Align the bracket in the chosen location on a
wall. Use a pencil to mark the drilling positions.
2 Drill holes as marked.
3 Fix the brackets to the wall using suitable screws
(not supplied).
4 As shown, unscrew and detach the desk stand
from your MCL888.
● 4 screws are available from unscrewing, and keep
these 4 screws for wall mounting or re-mounting
on the desk stand later.
5 Screw two of the four screws available from
Step 4 to the back of your MCL888 as shown
below.
6 As shown, hook and mount your MCL888 in the
wall bracket.
