Note on the power supply lead (yellow)
• When you connect other devices to this
apparatus, ensure that the rating of the car
circuit is higher than the total fuse value of
all the connected devices.
Notes on speaker connection
• Never connect speaker wires to the metal
body or chassis of the car.
• Never connect speaker wires with stripes
to one another.

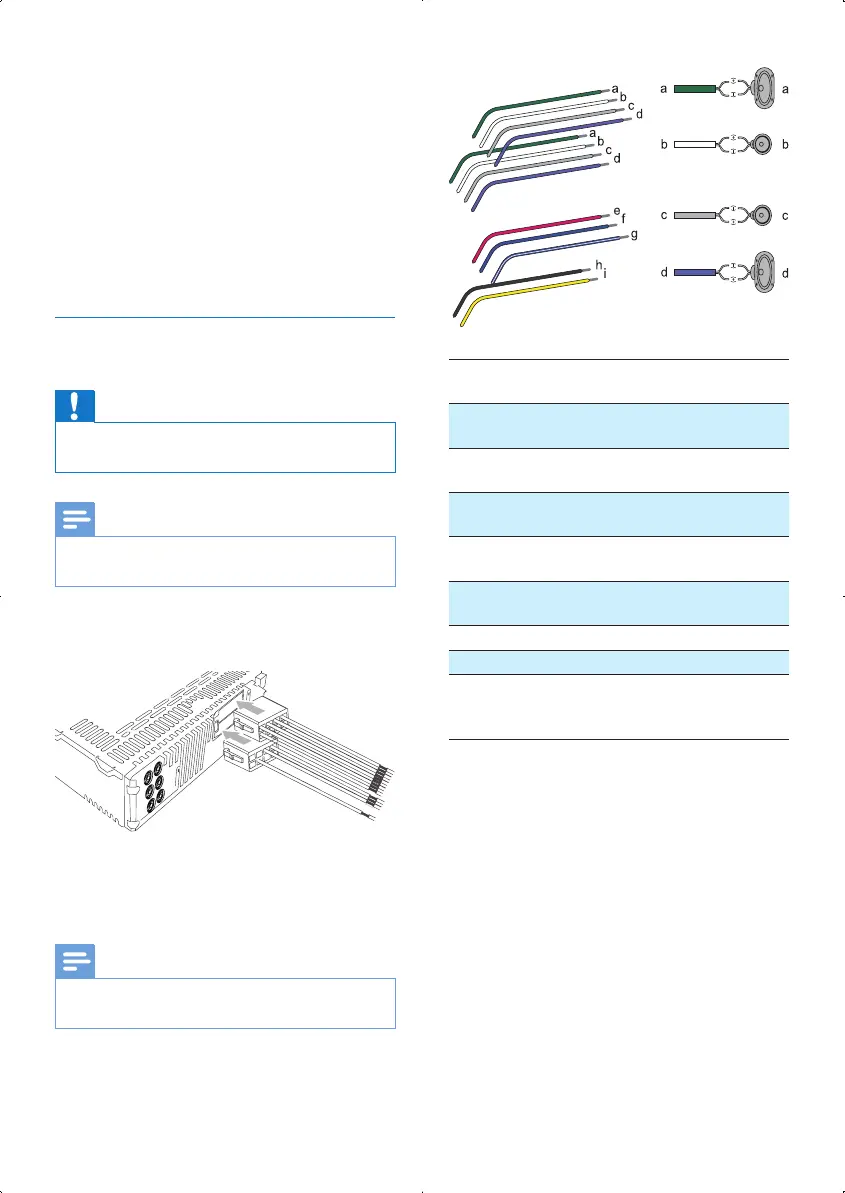

Connection: for cars with ISO
connectors
Caution
• Ensure that all loose leads are insulated with electrical
tape.
Note
• Consult a professional to connect CEM5200 as
instructed below.
1 Connect the supplied male connector to
the unit.
2 Check the car's wiring carefully and
connect them to the the supplied male
connector.
Note
• Risk of danger! Please consult a professional to perform
the steps below!
1 Green/black
strip
Left speaker (Rear)
2 White/black
strip
Left speaker (Front)
3 Gray/black
strip
Right speaker (Front)
4 Purple/black
strip
Right speaker (Rear)
e Red Ignition key +12V DC when
ON/ACC
f Blue Motor/electric antenna relay
control lead
g Blue/white Amplier relay control lead
h Black Ground
i Yellow To the +12V car battery
which is energized at all
times
3 Connect the antenna and amplier as
illustrated, if applicable.
