49BDL2005X
7

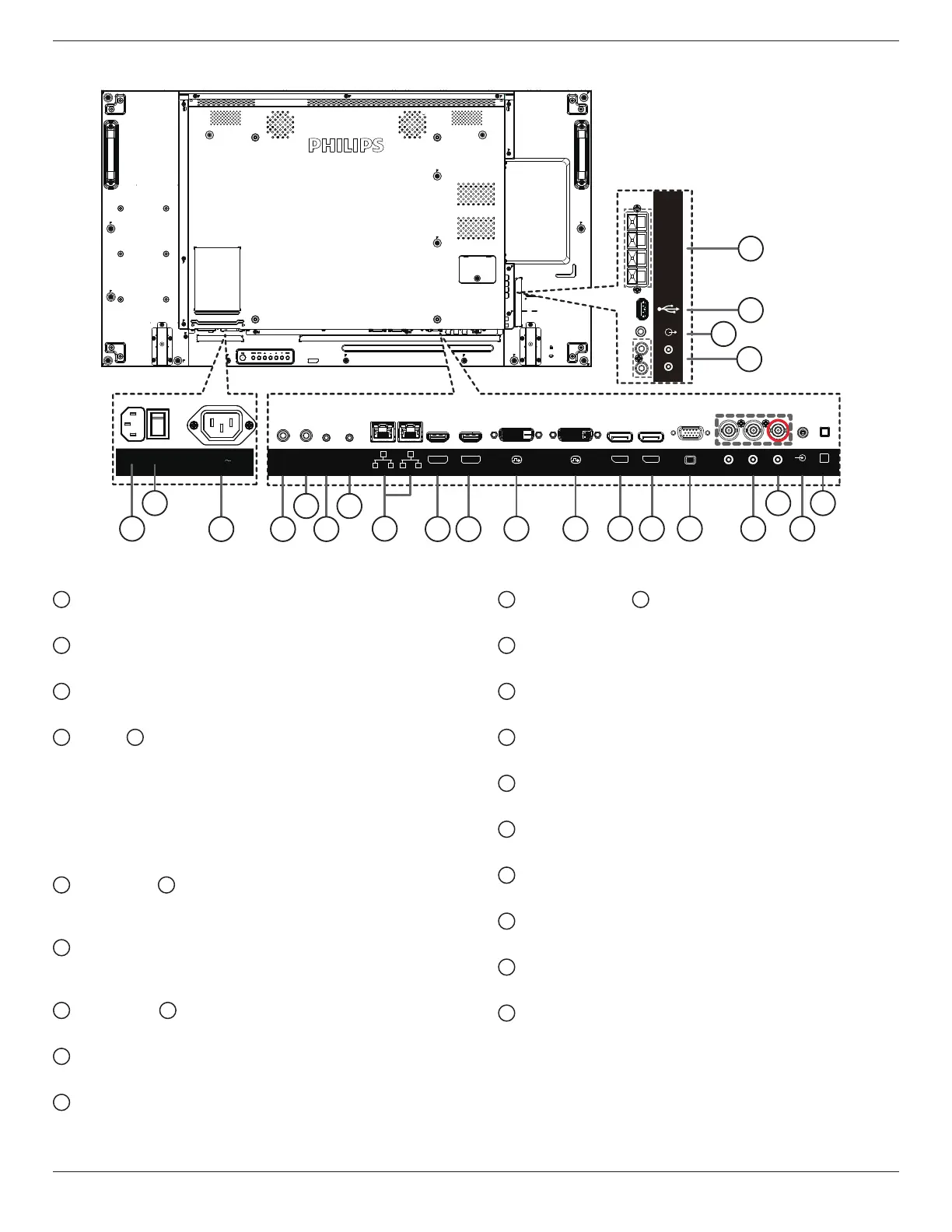

2.2. Input/Output Terminals
RJ45
HDMI1 IN
HDMI2 IN
DVI IN DVI OUT
DP IN DP OUT
VGA IN
Y/CVBS
PC LINE
IN
SPEAKER
SWITCH
RJ45
Pr Pb
AUDIO OUT
EXT. SPK
TERMINAL
USB
RS232 OUTRS232 INIR-IN IR-OUT
AUDIO R IN
AUDIO L IN
100-240V
50/60Hz 2.5A
20
21
22
23
2
1
3 4
5
6
7
17
8
9 10
11 12 13 14 15 16
19
18
1
AC IN
AC power input from the wall outlet.
2
MAIN POWER SWITCH
Switch the main power between On and O.
3
AC OUT
AC power supply to the AC IN jack of a media player.
4
IR IN /
5
IR OUT
IR signal input / output for the loop-through function.
NOTES:
• This display’s remote
control sensor will stop working
if the jack [IR IN] is connected.
• To remotely control your A/V device via this display,
refer to page 15 for IR Pass Through connection.
6
RS232 IN /
7
RS232 OUT
RS232 network input / output for the loop-through
function.
8
RJ-45 IN/OUT
LAN control function for the use of remote control signal
from control center.
9
HDMI1 IN /
10
HDMI2 IN
HDMI video/audio input.
11
DVI IN
DVI-D video input.
12
DVI OUT
DVI or VGA video output.
13
DisplayPort IN
14
DisplayPort OUT
DisplayPort video input / output.
15
VGA IN (D-Sub)
VGA video input.
16
COMPONENT IN (BNC)
Component YPbPr video source input.
17
Y/CVBS
Video source input.
18
PC LINE IN
Audio input for VGA source (3.5mm stereo phone).
19
SPEAKER SWITCH
Internal speaker on/o switch.
20
AUDIO IN
Audio input from external AV device (RCA).
21
AUDIO OUT
Audio output to external AV device.
22
USB PORT
Connect your USB storage device.
23
SPEAKERS OUT
Audio output to external speakers.
