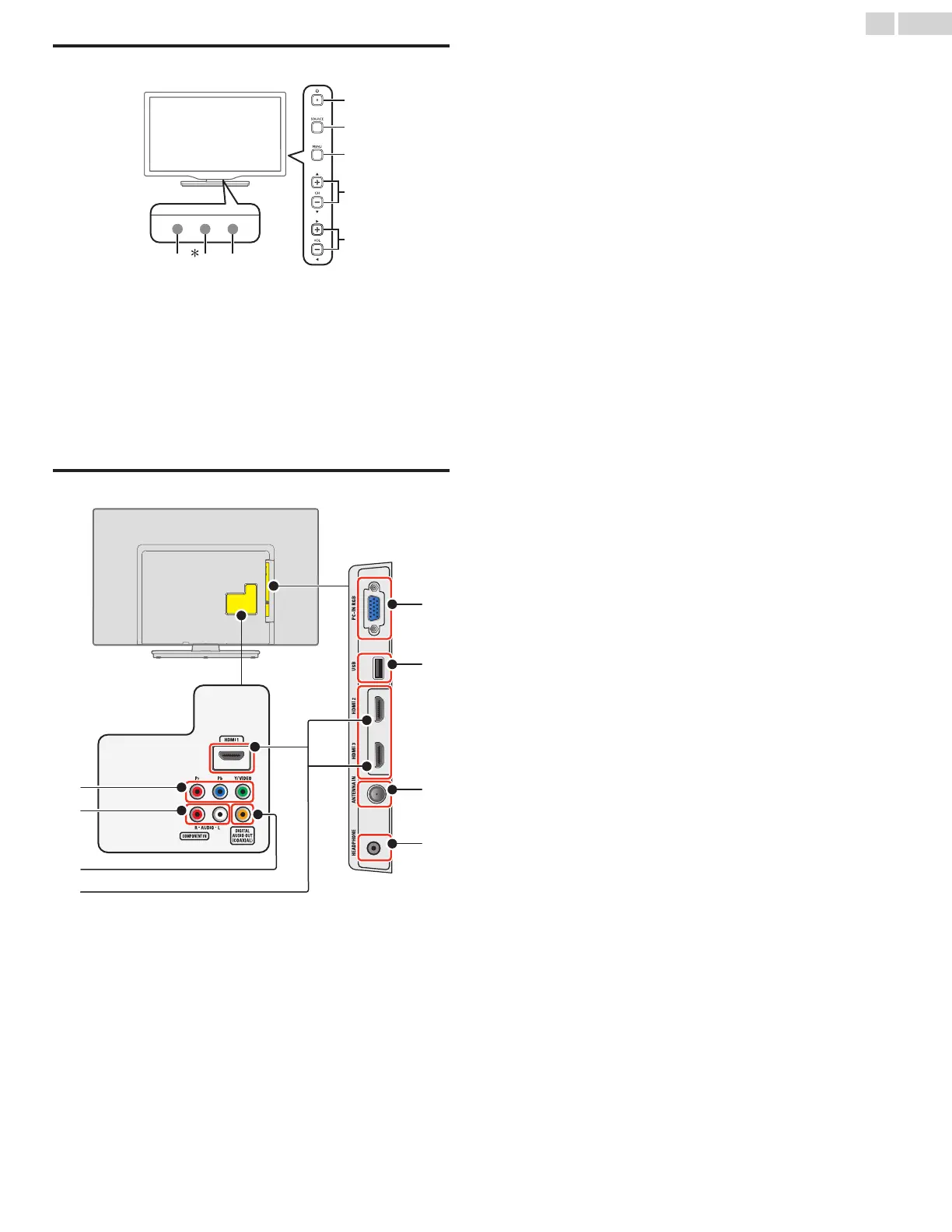

Control Panel
cba
d
e
f
g
h
a
Remote Control Sensor
Receives IR Signal from Remote control.
b
Ambient Light Sensor
Alters the brightness of the TV screen Automatically by detecting
your room lighting level. Do Not Block this Light Sensor window to
allow proper operation.
* 55PFL4709 / 50PFL4709 / 49PFL4709 / 40PFL4709 / 40PFL4409
only.
c
Power On / Standby Indicator
(On : lights in white, Standby : no light)
d
B (POWER)
Turns the TV On and Off (Standby mode).
e
SOURCE
Selects Connected Devices.
f
MENU
Opens the Main On-screen Menu.
g
CH H / I
Selects a Channel in the Memorized Channel Ring (Low to High or
High to Low). In the Menu screen, moves the Cursor Up ( H ) /
Down ( I ).
h
VOL J / K
Adjusts the Volume.
VOL J : Volume Down
VOL K : Volume Up
In the Menu screen, moves the Cursor Left ( J ) / Right ( K ).
Terminals
i
k
l
m
n
o
p
j
i
Component (Y/Pb/Pr) / Composite Video (VIDEO) Input jacks for
VIDEO
Composite Video Input (VIDEO) jack is a shared jack with
Component Video Input (Y) jack.
j
Analog Audio (L/R) Input jacks
Connect Analog Audio Signals from;
●
HDMI-DVI / Analog Audio (L/R) jacks Signal
●
Component Video / Analog Audio (L/R) jacks Signal
●
Composite Video / Analog Audio (L/R) jacks Signal
●
PC Connection / Analog Audio (L/R) jacks Signal with Stereo Mini
3.5mm Plug Audio Cable on PC
k
Digital Audio Output jack
Digital Audio (S/PDIF) Output to Home Theaters and other Digital
Audio systems.
l
HDMI Input jack(s)
Digital Audio and Video Input from High Definition Digital Devices
such as DVD / Blu-ray Disc players, Cable / Satellite Set-top Boxes
and PC’s.
m
PC Input jack
VGA cable Connection for PC.
n
USB Terminal
Data Input from USB Memory Stick only.
Do Not Connect any Device to this terminal such as; Digital Camera,
Keyboard, Mouse, etc.
o
75 ohm Cable / Antenna Connection
Signal Input from an Antenna or Cable / Satellite Set-top Boxes.
p
Headphone Audio Output jack
Headphone 3.5mm Stereo jack for personal listening.
11
.English
Continued on next page.
