3.7. Open Frame Kit(Optional)

• You can use the Open Frame Kit to mount the display to the frame of kiosk.

• Please ask for the assistance of the professional to install the display with the Open Frame Kit.

• Please make sure the strength of the frame is strong enough to withstand a 50Kg loading of display.

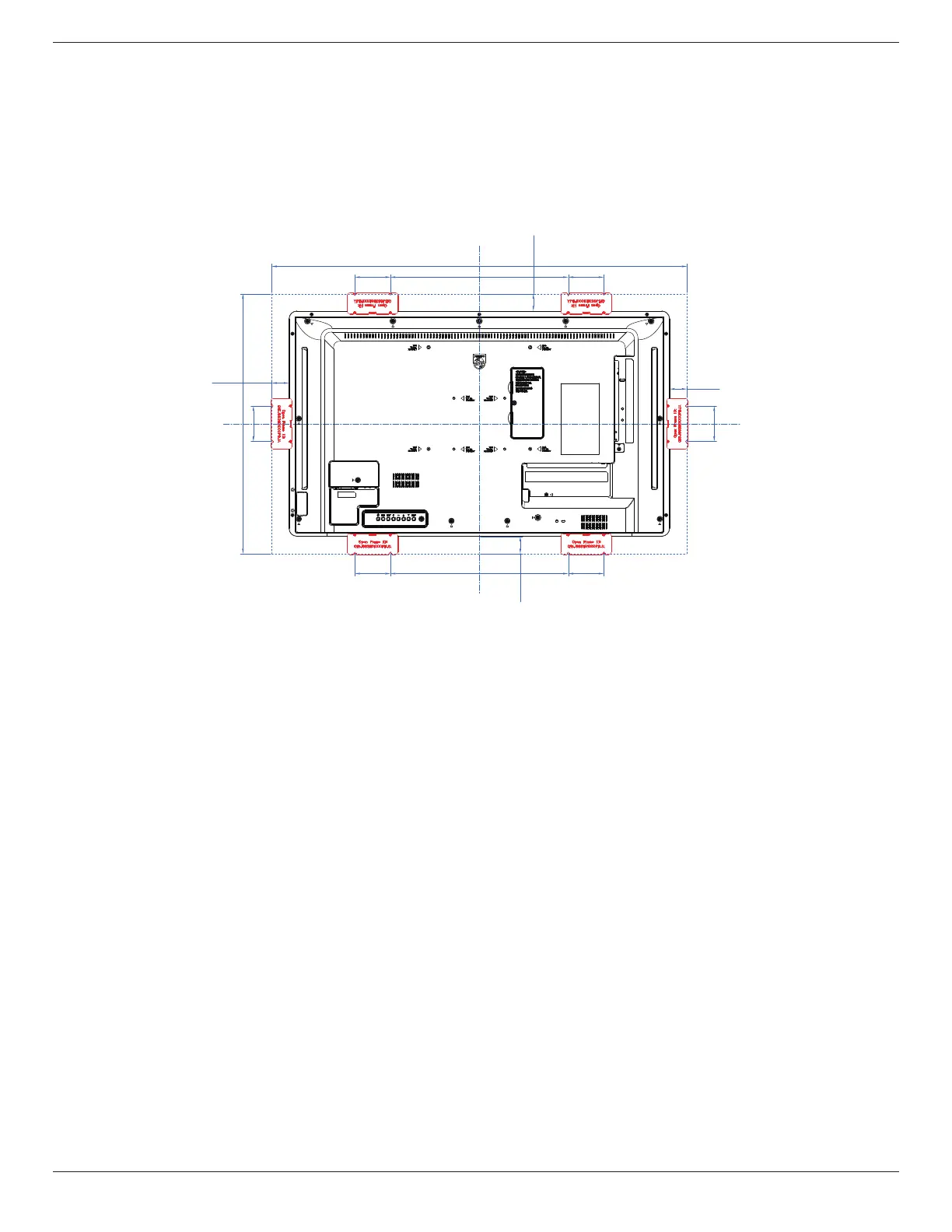

• Follow the following drawing to have the screw holes for the Open Frame Kit.(Total 12*M3 Screw Holes ) .

• Fix Open Frame Kit with the M3 screw from the kit.

Note: The CTN for the 24"/32" sizes is BM03752, and the CTN for the 43"/55" sizes is BM03751. Please use the correct CTN to

identify and order the corresponding open frame kit.

817.1mm

511.6mm

70.0mm 70.0mm350.0mm

34.0mm

70.0mm

34.0mm

70.0mm

34.0mm

70.0mm 70.0mm350.0mm

34.0mm
