1

AC IN

AC power input from the wall outlet.

2

MAIN POWER SWITCH

Switch the main power between On and O.

3

HDMI 1 IN

Connect to a source device via an HDMI cable.

4

HDMI 2 IN

Connect to a source device via an HDMI cable.

5

DisplayPort IN

DisplayPort video input.

6

USB-C

Support display and touch function.

7

USB 3.0

Connect to a USB storage device.

8

USB 3.0

Connect to a USB storage device.

9

USB-B

Touch connector to PC.

10

AUDIO OUT

Audio output for external AV device.

11

IR IN /

12

IR OUT

IR signal input/output for the loop-through function.

NOTES:

• The remote control sensor of this display will stop

working if the jack [IR IN] is connected.

• To remotely control your A/V device via this display,

refer to page 25 for IR Pass Through connection.

13

RS232 IN /

14

RS232 OUT

Android RS232 network input/output is reserved for

customized protocol usage from System Integrator.

15

RJ-45 IN

The LAN control function is used for sending the remote

control signal from the control center.

16

MICRO USB

Support ADB data transmission and OTG.

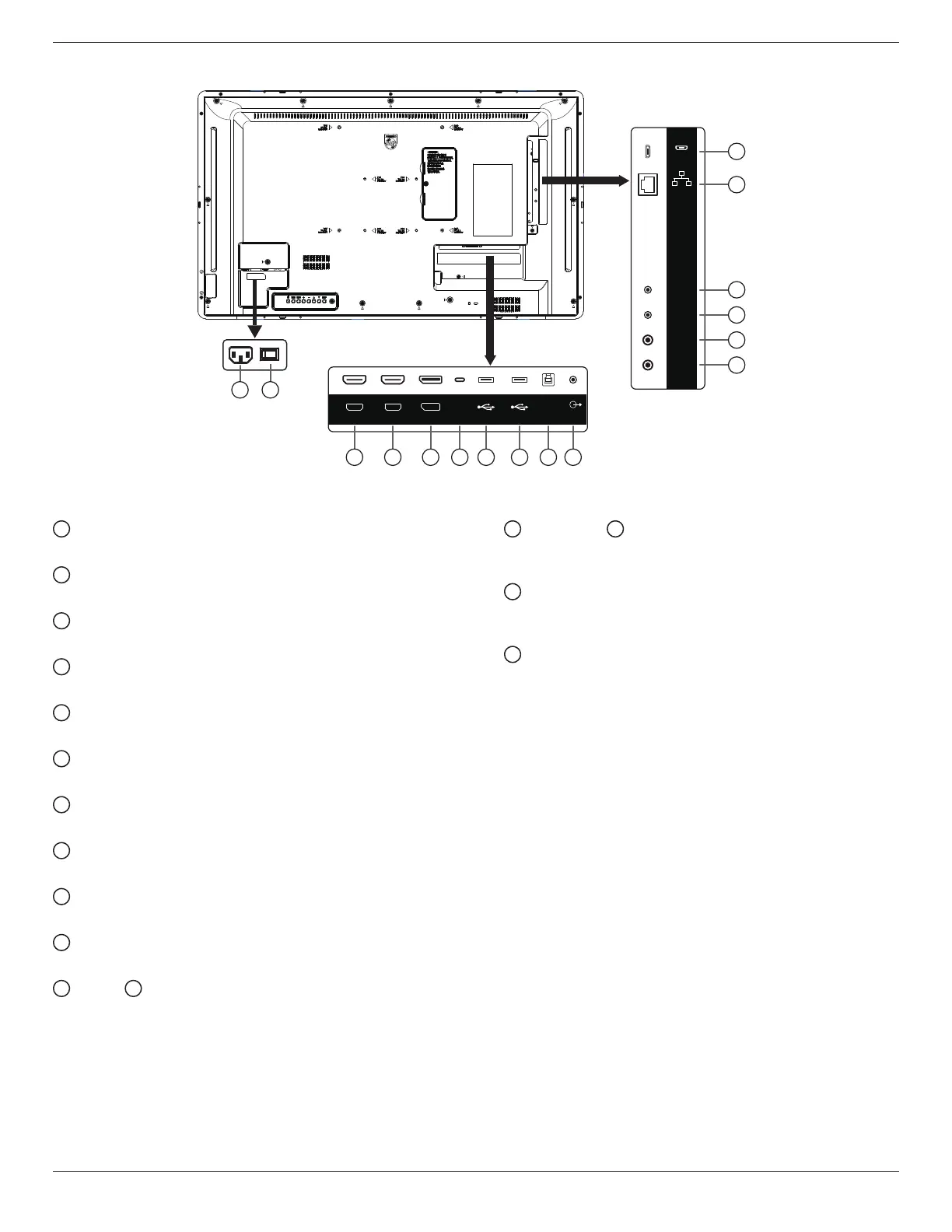

3.2. Input/Output Terminals

2

1

HDMI 1 IN HDMI 2 IN

DP IN

USB-C

USB 3.0 USB 3.0

USB-B

AUDIO

OUT

MICRO USB

RJ45

IN

IR OUT

IR IN

RS232

OUT

RS232

IN

7

8 9

10

3

4

5 6

11

12

13

14

16

15
