Thread Sensor
If the needle thread breaks or bobbin thread is running low, the machine stops and a pop-up appears on the screen.
If needle thread breaks: Remove the thread completely, re-thread the machine and touch OK in the pop-up.
If bobbin thread is running low: You can continue sewing without closing the pop-up before the bobbin thread runs
out completely. This gives you an opportunity to plan where to stop and change the bobbin. When the bobbin is
replaced with a full one, touch OK in the pop-up.

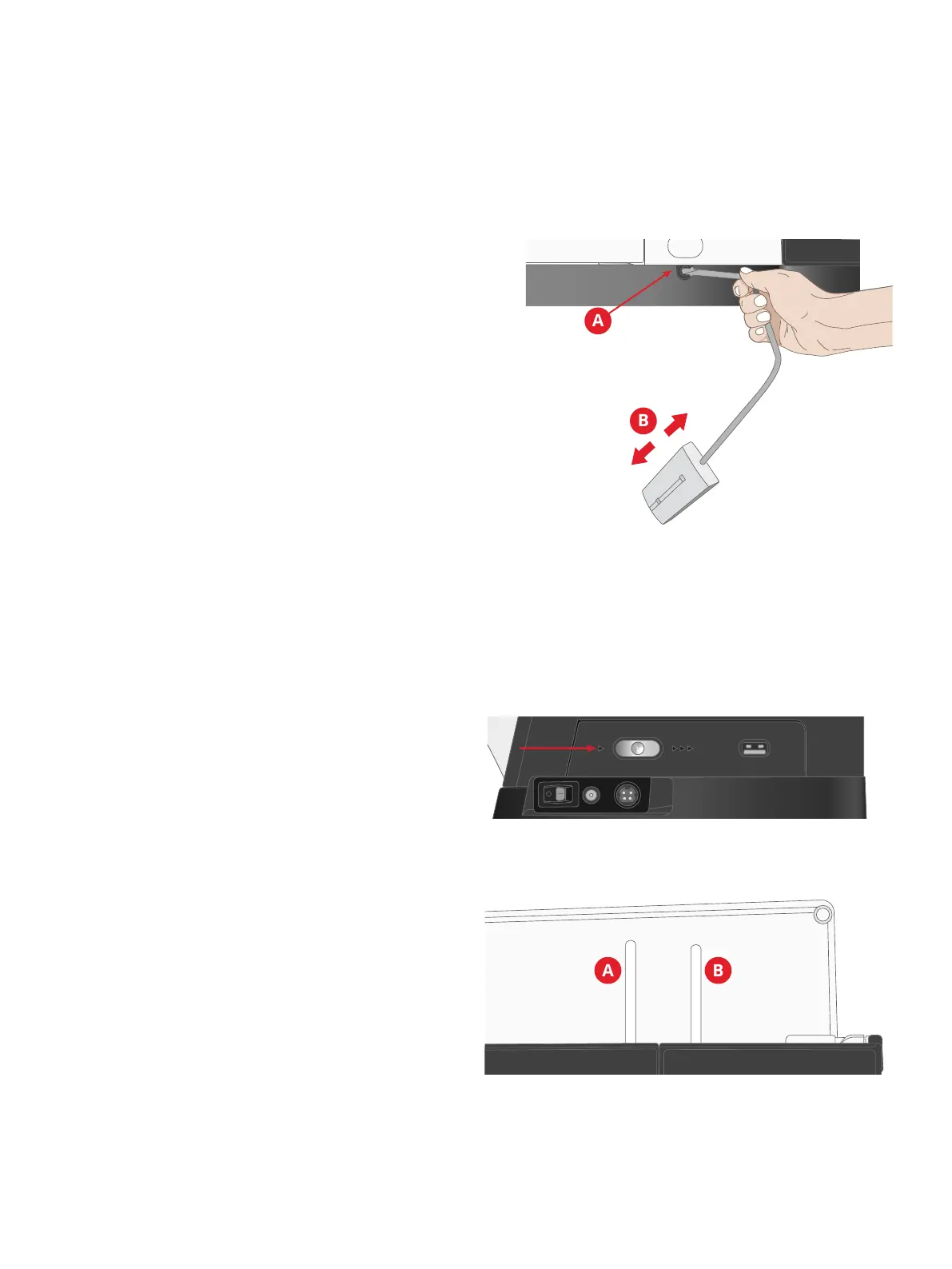

Knee-Lift
Your machine comes with an electronic knee-lifter that
allows you to lift the presser foot with your knee. The
knee-lifter is very helpful when sewing, since it allows
you to handle the fabric with your hands while your
knee lifts the presser foot to the desired height.
Match the ribs on your knee-lifter with the notches in
the knee-lifter socket (A). Carefully push the knee-lifter
into the socket. Adjust the rectangular bar on the knee-
lift until it is positioned at a comfortable height for you
(B).
Press your knee towards the knee-lifter and to the right,
and the presser foot will raise. You can raise the presser
foot to three positions with your knee-lifter; pivot height,
up, and extra lift position.
When moving the presser foot to the extra lift position,
the machine drops the feed teeth, allowing you to easily
place thick fabrics underneath the presser foot. The feed
teeth will raise automatically when you start to sew.
To remove the knee-lift, just pull it straight out of the
socket.
Speed Control Slider
The speed control slider sets the sewing speed. To
increase sewing speed, slide the slider backwards, to
decrease sewing speed, slide the slider towards you.
A pop-up appears on screen when adjusting the slider,
indicating which speed level is set. The speed setting is
also shown in the information area.
Spool Pins
Main spool pin (A) and auxiliary spool pin (B)
Your machine has three spool pins; a main spool pin, an
auxiliary spool pin and a bobbin spool pin. The spool
pins are designed for all types of thread. The main spool
pin is adjustable and can be used in a horizontal
position (the thread reels off the stationary spool) or in a
vertical position (the thread spool rotates). Use the
horizontal position for all regular sewing threads and
the vertical position for large spools or specialty threads.
Use the main spool pin (A) when threading the upper
thread and for bobbin winding through the needle.
Use the auxiliary spool pin (B) for a second spool when
sewing with a twin needle.
The bobbin spool pin is recommended to use when
winding the bobbin.
A
B
A B
20 2 Preparations
