Page 13
Setting Up the Table (and Taking it
Down for Storage)

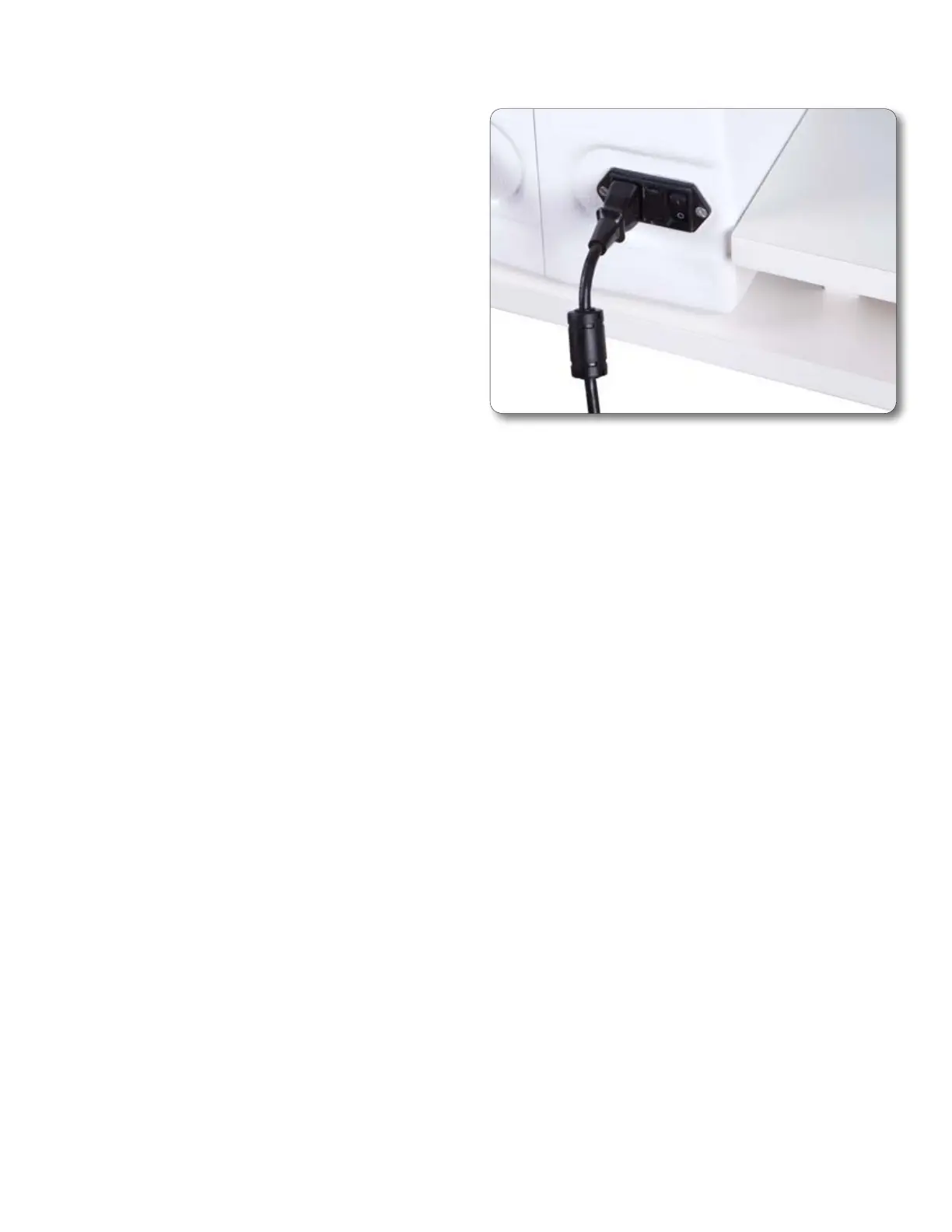

Check that the On/Off switch (page 12, Figure 3,
#21) is turned off (the 0 setting). Plug the power
cord into the power outlet on the back of the machine
(Figure4). Do not plug the power cord into a power
source at this time.
Installing the Power Cord
1. Plug in the foot pedal cord end into the foot pedal
connector (see page 12, Figure 3, #23).
2. Place the foot pedal under the table where operator
can reach it from the front of the machine.
The powerquilter
™
16.0 quilting machine table has
been designed to accommodate the powerquilter
™
16.0
machine. It has folding legs that are height-adjustable
and is heavy enough to provide stabilization for
quilting at high speeds.
1. Open the box and gently remove the table, taking
care not to drop the table on the floor. The table
weighs nearly 50 pounds, so it is recommended that
you ask someone to help.
2. Remove the bracer.
3.Unfold the legs, pulling on the horizontal braces
until the legs snap into place. Set the table upright.
4. Make the table taller by pinching the two height-
adjustment tabs on each set of legs and lifting on
table, while holding legs down with foot. Make the
table shorter by pinching the same tabs and pushing
down on the table.
5. To store the table, remove machine and return legs
to their lowest position.
6. The legs are attached to the table top with brackets
of two different sizes. One is longer than the other.
Identify the long and the short leg brackets.
7. Fold in the short bracket leg first. Push on the
horizontal braces to loosen the legs and push them
back toward the table top.
8. Repeat with the long bracket leg.
Installing the Foot Pedal
Placing the Machine in the Table
1. We recommend having someone help lift and place
the machine.
2. Lift the machine by putting one arm through the
throat space.
3. Guide the machine from the back of the table into
the slot. Machine is positioned correctly when the
back of the machine is flush with the back of the table.
Figure 4
