INSTALLATION INSTRUCTIONS

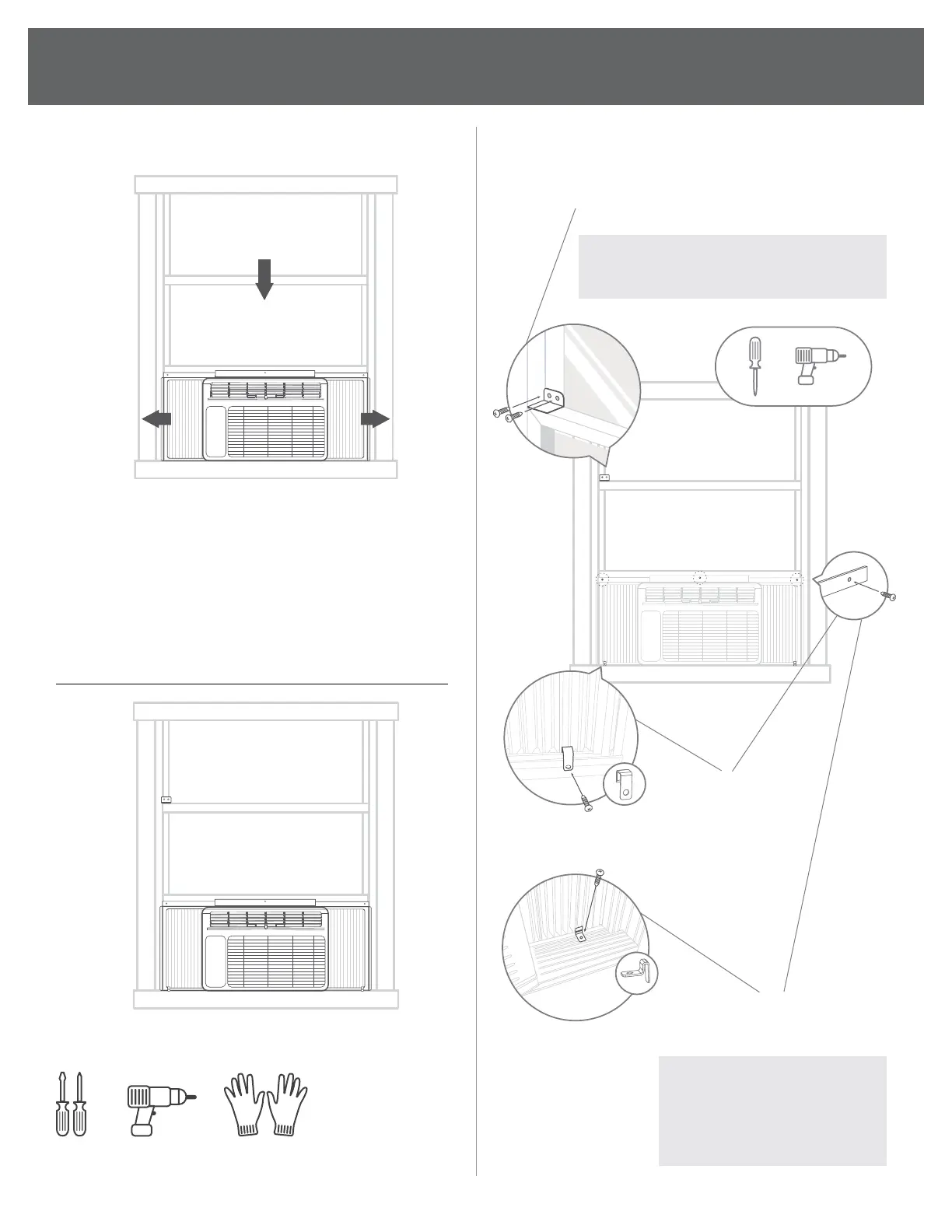

3. Close the window down onto the AC, and pull
the panels to the side of the window.
RIGHT
LEFT
Once the AC is centered and the bottom bar
is successfully positioned, close the window
down onto the AC, behind the top bar. See
diagram above. Pull the panels to the side of
the window.
STEP 4
SECURE THE AC
RIGHT
LEFT
What you need:
1. Drive locking screws.
Follow the below instructions and drive the screws.
RIGHT
LEFT
Drive 1/ 2" (12.7 mm) locking screws through the
frame lock and into the sill (Only wooden windows).
1/8 " (3mm) pilot holes
before driving screws.
Drive 1/2" (12.7mm)
locking screws through
frame holes into window
sash (Only wooden
windows).
Drive 1/ 2" (12.7 mm) locking screws
through the frame lock and into the
window sash (Only Vinyl-Clad windows).
NOTE: To prevent window sill from splitting, drill
1/8 " (3mm) pilot holes before driving screws.
NOTE: Before driving the screws,
use a drill to drill 5 holes through
the holes in the frame lock and
frame extensions into the windows
sash as shown.
OR
