11
INSTALLATION INSTRUCTIONS

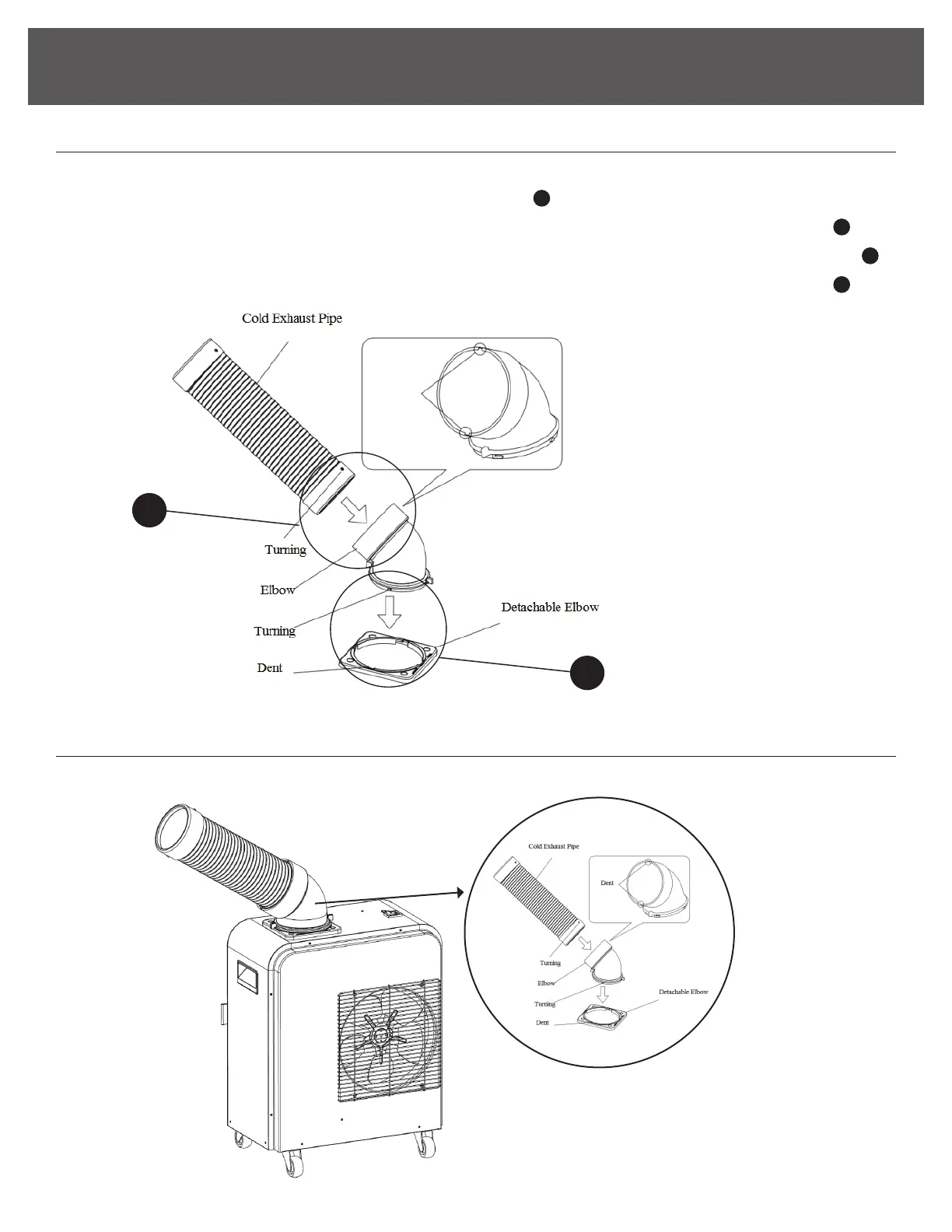

COLD AIR EXHAUST HOSE ASSEMBLY
1. Align the locking tabs of the Cold Exhaust Pipe to the attachment channels (Dent) located
on the exhaust elbow as shown in the diagram below (Fig. 1).
A
2. Insert the locking tabs into the attachment channels (Dent) and turn until they lock into place (Fig. 1).
A
3. Align the locking tabs on the elbow with the attachment channels (Dent) on the connection plate (Fig. 1).
B
4. Insert the locking tabs into the attachment channels (Dent) and turn until they lock into place (Fig. 1).
B
ATTACH COLD AIR EXHAUST HOSE ASSEMBLY TO UNIT
1. Using the supplied screws, attach the connection plate to the cabinet (Fig.2).
FIG 1
FIG 2
Dent
B
A
