Prepare The Display For Mounting

Install cords prior to mounting your display. Input panel may be obstructed once the display is

mounted.

A mounting solution is sold separately. Contact your Peerless-AV representative for an outdoor rated

mounting solution for your particular application.

For your safety, only install an outdoor-rated mount that is suitable for the application and supports

the weight of the display. When mounting a display outdoors, use proper environmentally rated

mounts to ensure longevity in harsh environments.

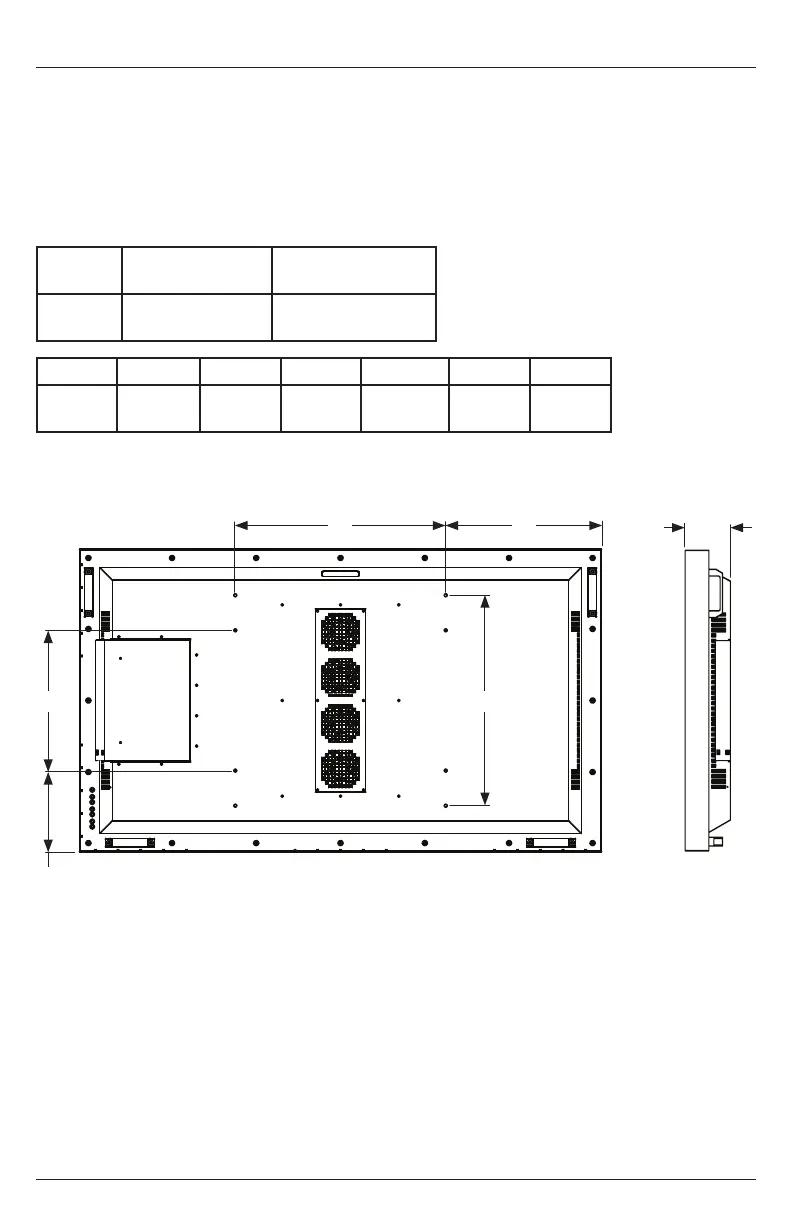

Examine the chart below to determine the mounting specications for your display:

Part

Mounting Hole

Pattern

Required Mounting

Screws

XHB652

600x400mm,

600x600mm

(4) M8 screws

(16mm long)

Part A B C D E F

XHB652

23.62"

(600mm)

15.75"

(400mm)

17.53"

(445mm)

9.17"

(233mm)

23.62"

(600mm)

5.14"

(131mm)

SIDE VIEW

REAR VIEW

B E

A C
