Prepare the Display for Mounting
Install cords prior to mounting your display. Input panel may be obstructed once the display is mounted.
A mounting solution is sold separately. Contact your Peerless-AV representative for an outdoor rated mounting
solution for your particular application.
For your safety, only install an outdoor-rated mount that is suitable for the application and supports the weight of the
display. When mounting a display outdoors, use proper environmentally rated mounts to ensure longevity in harsh
environments.

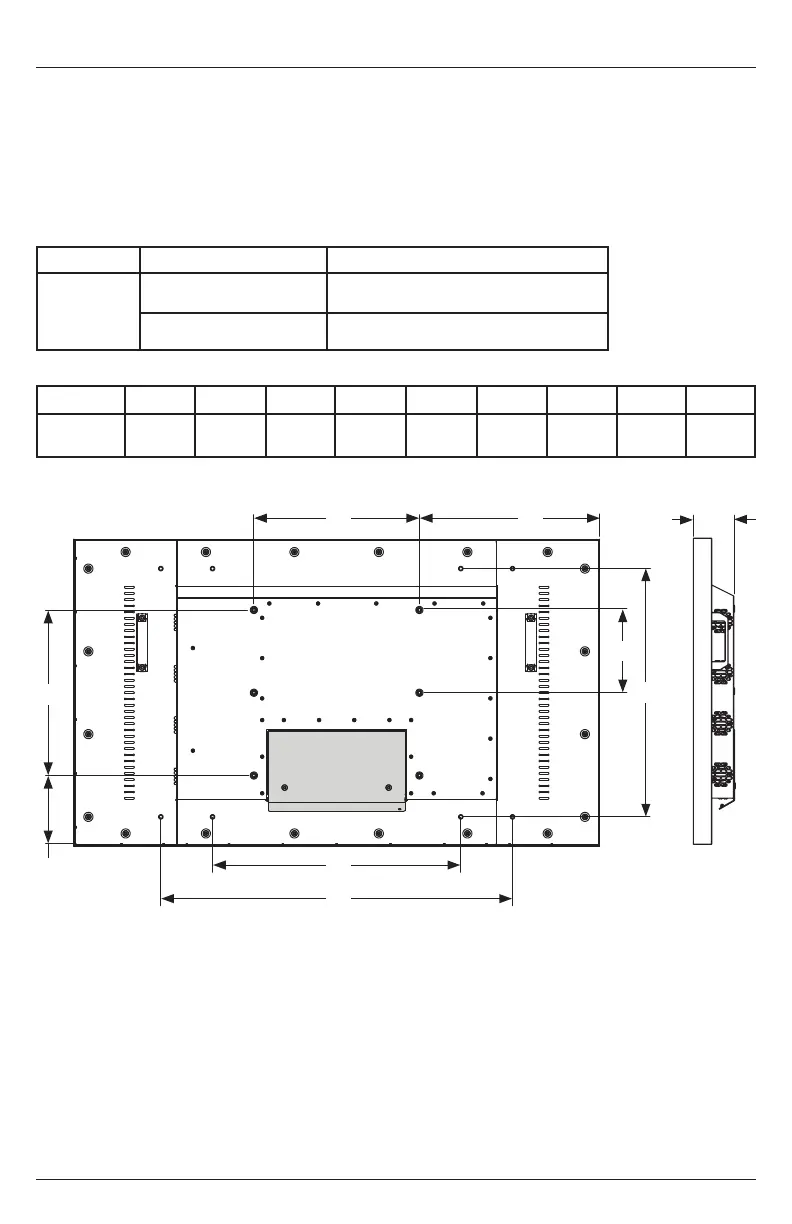

Examine the chart below to determine the mounting specications for your display:
B
F
H
D
Display Size A B C D E F G H I
55"
15.75"
(400mm)
15.75"
(400mm)
17.16"
(436mm)
6.74"
(171mm)
3.92"
(100mm)
7.87"
(200mm)
23.62"
(600mm)
23.62"
(600mm)
33.46"
(850mm)
SIDE VIEW
A
G
I
C
E
BACK VIEW
Display Size Mounting Hole Pattern Mounting Screw Size
55"
VESA 400 x 200mm
VESA 400 x 400mm
Alternate 600 x 600mm
Alternate 850 x 600mm
Four M8 x 18mm maximum thread
Four M8 x 12mm maximum thread
