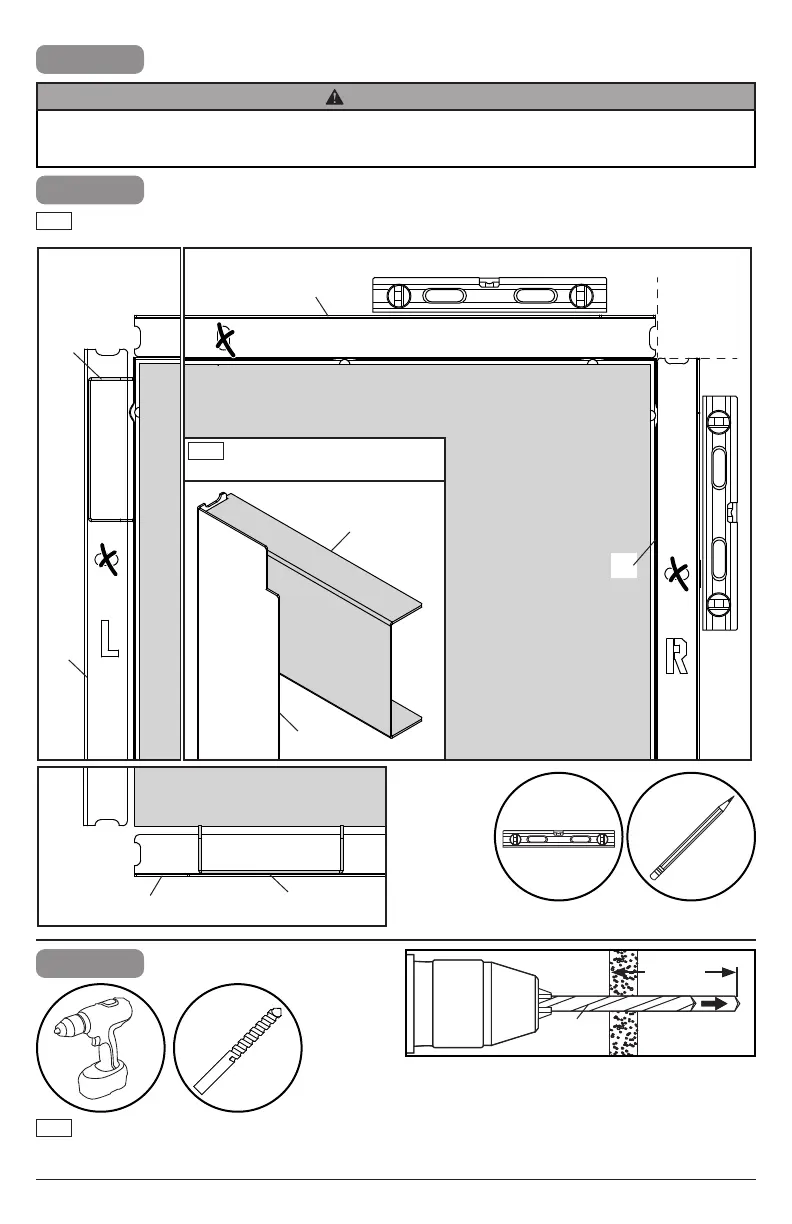

Align top and right wall brackets with display guiding lines. Mark mounting holes. For left and bottom wall
brackets, align wall bracket with edge of video wall. Use spacer to set nal position. Mark mounting holes.
ENG
C
C
ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood
studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13mm) thick. Plywood
may be covered by gypsum board (drywall) up to 5/8" thick.
WARNING
3d-2
Drill mounting holes into supporting surface
(1.75" (44mm) minimum depth required).
ENG
5/32"
(4mm)
1.75"
(44mm)
5/32"
(4mm)
3d
T
H
H
C
Spacer oriented so notch faces
wall and wall brackets.
ENG
C,T
