4
PCE Instruments PCE Instruments | www.pce-instruments.com

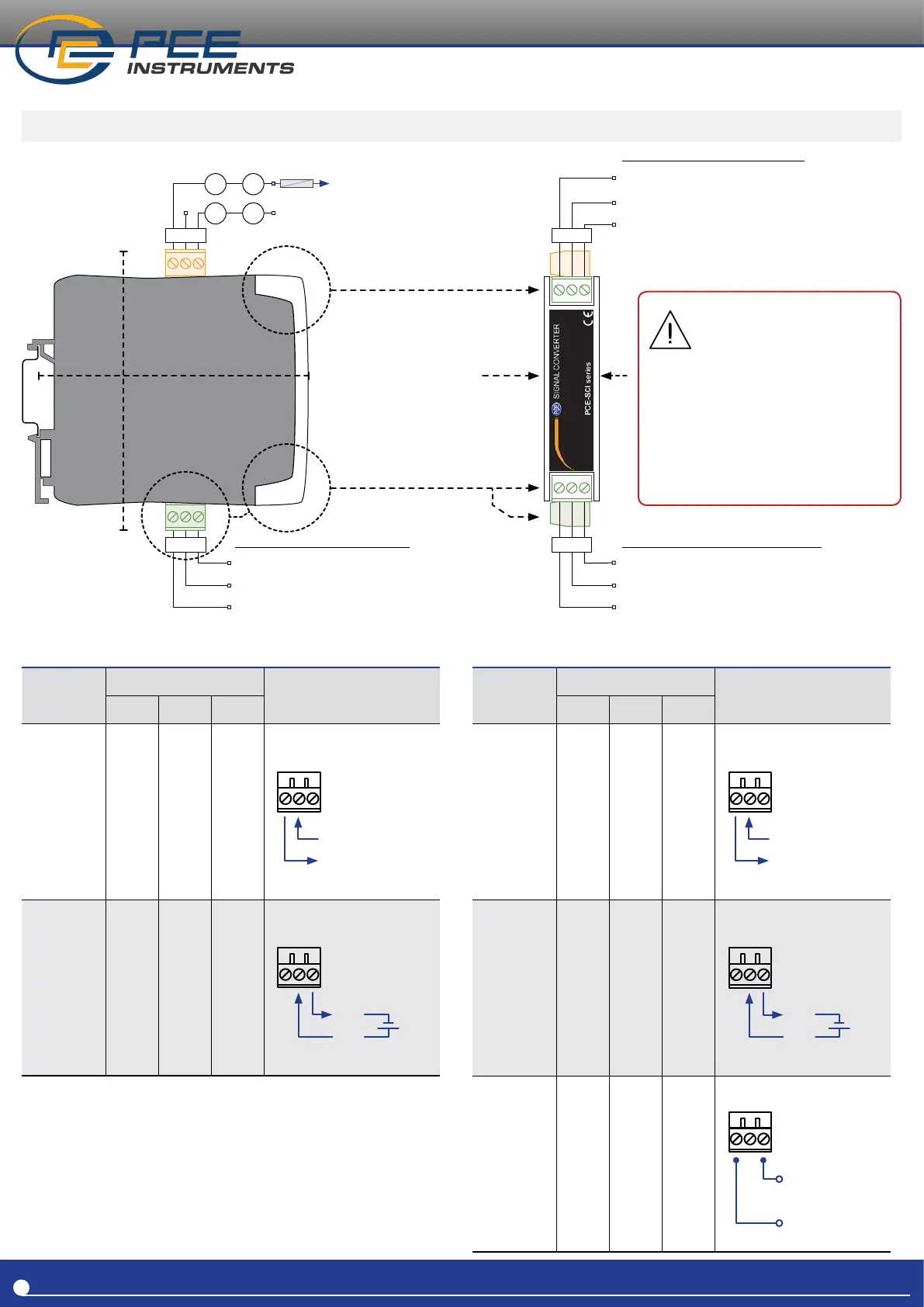

8. Connections and dimensions (mm (inch))
Table 3 | OUTPUT 1 signal connections
OUTPUT 1
signal
Output terminals Connections
1 2 3
4/20 mA
active output
Vexc
(out)
mA-
(in)
123
mA-
mA+
4/20 mA
passive output
mA-
(in)
mA+
(out)
123
mA-
mA+
Fuse - This instrument does not
include internal protection fuse.
According to security regulation
61010-1, add a protection fuse to the power
line to act as a disconnection element, easily
accessible to the operator and identied as
a protection device. Use time-lag fuse, with
value :
• 250 mA, for voltages > 50 Vac/dc
• 400 mA, for voltages < 50 Vac/dc
fuse
output 4/20 mA passive (current out)
output 4/20 mA (current in)
output 4/20 mA active (current out)
POWER (ABC)
60 to 240 Vac isolated
20 to 240 Vdc isolated
output 4/20 mA (current in)
Vexc (+15 Vdc)
input signal (mA, Vdc)
common
Standard (35 mm)
DIN rail mount
1 2 3
106 mm
(4.17’’)
108 mm
(4.25’’)
~ +
~ -
A B C
4 5 6
7 8 9
22.5mm
(0.89’’)
output 0/10 Vdc
output 4/20 mA active (current out)
common Vdc output 4/20 mA passive (current out)
3
OUTPUT 2 (mA / Vdc) (see ‘Table 4’)OUTPUT 1 (mA) (see ‘Table 3’)
INPUT (Vdc / mA) (see ‘Table 5’)
Table 4 | OUTPUT 2 signal connections
OUTPUT 2
signal
Output terminals Connections
4 5 6
4/20 mA
active output
Vexc
(out)
mA-
(in)
456
mA-
mA+
4/20 mA
passive output
mA-
(in)
mA+
(out)
456
mA-
mA+
0/10 Vdc
output
+Vdc common
456
+Vdc
common
