18
English

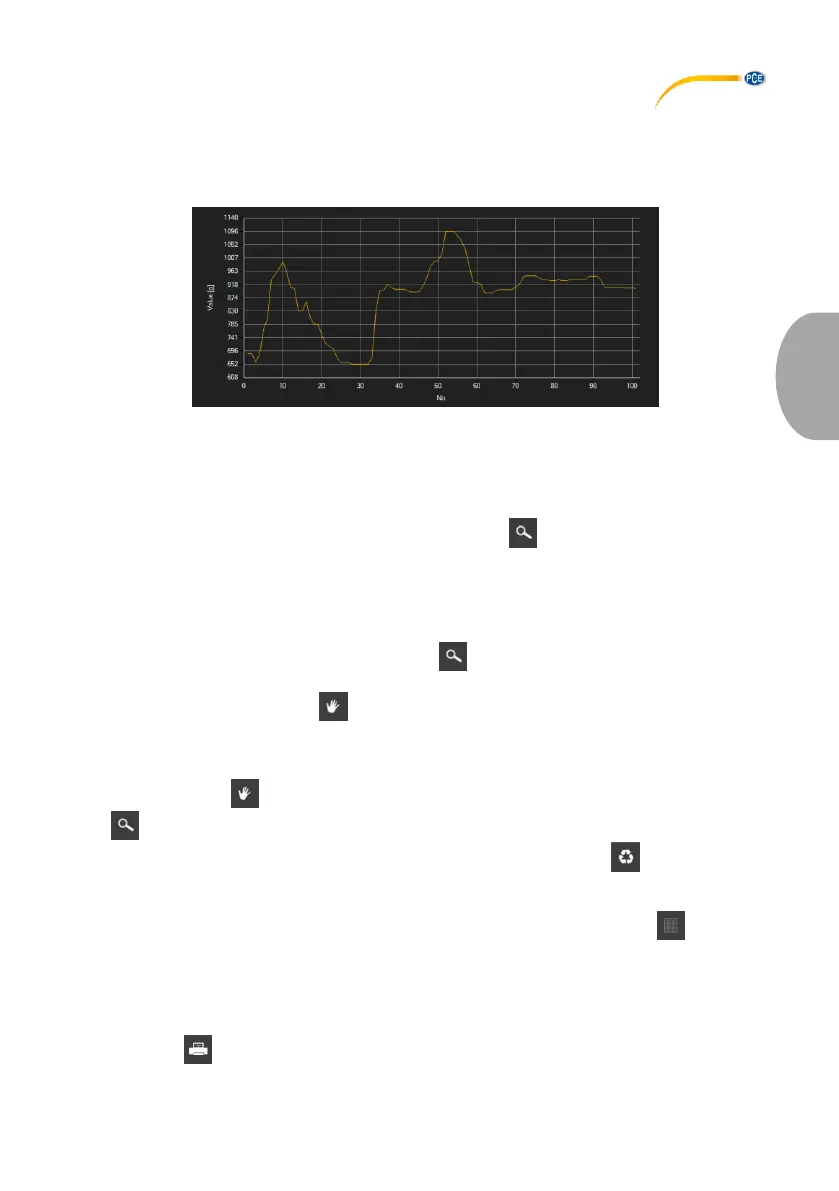

6.8 Graphical representation
In the area for the graphical evaluation, the mass (y axis) and the consecutive number (x axis)
are shown.
If limits have been set, these will also be shown (red lines).
Moving the mouse cursor to a point in the displayed line makes a small information window with
the data of the currently selected measurement value pop up after a short time.
A freely selectable part of the displayed graphics can be enlarged.
For this purpose, the corresponding icon in the toolbar (“Enlarge the graphics area ("Zooming")
or move the enlarged graphics) must be a magnifying glass .
Then, a rectangle can be drawn over a part of the graphics by holding the mouse button down.
When the mouse is released, the selected area appears as a new graphic.
As soon as at least one enlargement has been made, it is possible to switch from enlargement
mode to shift mode by clicking the icon (“Enlarge the graphics area ("Zooming") or move the
enlarged graphics) with the magnifying glass icon .
Shift mode is represented by the icon.
If the mouse is now placed over the graphics area and then the left mouse button is pressed, the
depicted section can be moved by holding the mouse button down.
Another click on the icon changes back to the enlargement mode, which is recognizable by
the icon.
The original graphics can be restored at any time by clicking on the icon next to the
magnifying glass or hand.
The background of the graphics and its representation can be changed via the icon to the
right. A click on the icon works like a switch:
A single click makes the division of the background finer and adds some more dots to the
graphics. A further click on the icon changes back to standard view.
The currently displayed graphics can also be printed.
A click on the icon opens the "Print" dialog.
