User Manual EN

FLEX 6-E / 10-E / 16-E

FLEX 6-S3 / 10-S4 / 16-S6

12

11

10

1

2

3

4

5

6

789

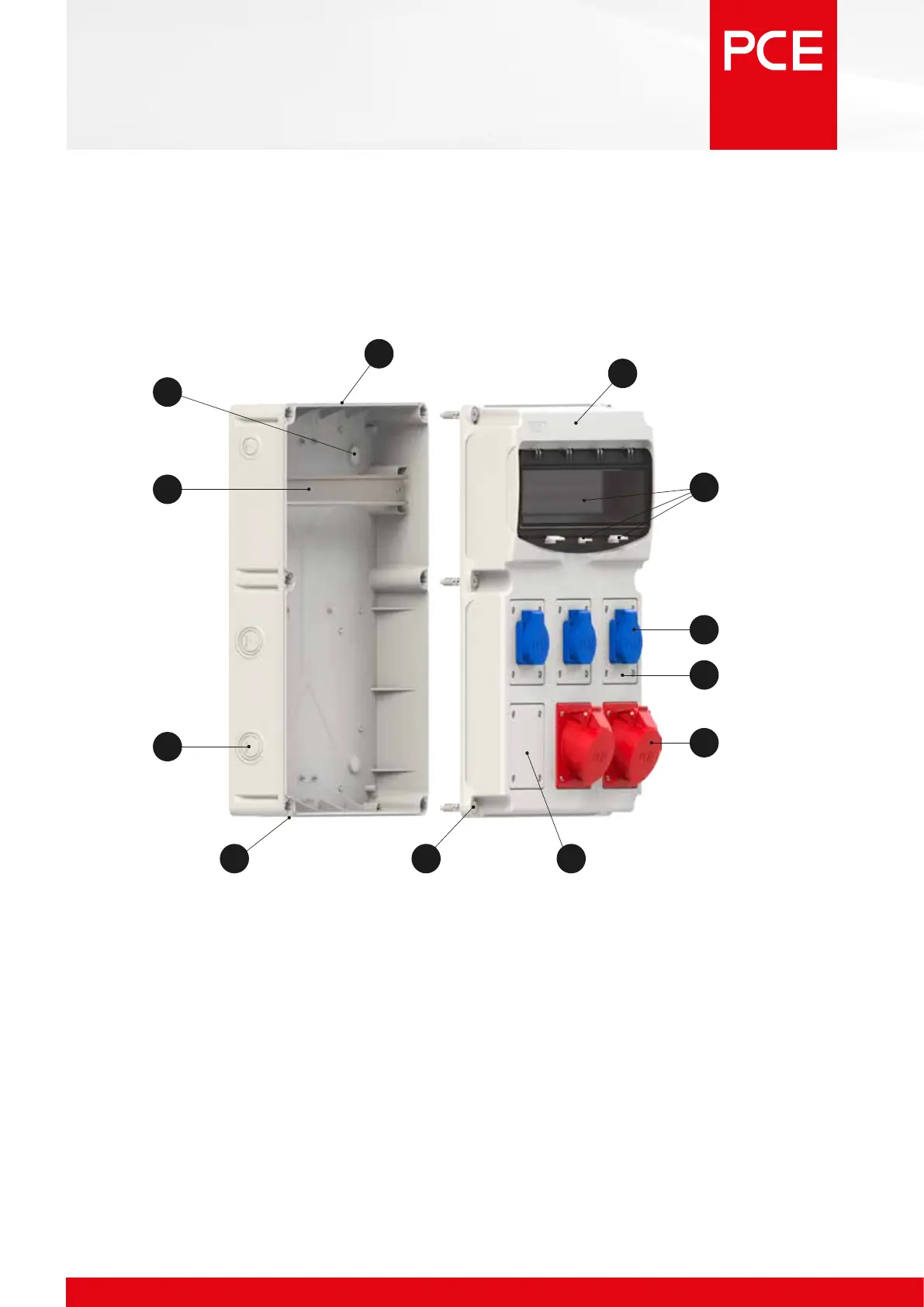

5.1 Product description

The FLEX empty enclosure is a distribution box made of insulating material.

The FLEX empty enclosure consists of a lower part and an upper part. The enclosure upper part has a hinged

window. The installation area for switchgear on a mounting rail is behind the hinged window. The mounting rail

is preassembled on the enclosure lower part.

1. Enclosure lower part

2. Enclosure upper part

3. Hinged window with snap catch and locking device

4. Flangedsocketoutlet(DIN49440)withearthcontact(optional)

5. Flange adapter 50x50 (optional)

6. CEEangedsocket(optional)

7. Blindange

8. Plastic enclosure screw (6x)

9. OpeningforleadsealingØ2mm

10. Drilling mark for cable glands

11. Mounting rail TH35-7.5

12. Screw cover (4x)

Thedierentequipmentversionsaredesignatedbythenameextension"E"or"S".

Onthe"E"models,theenclosureupperpartissealed."S"modelsfeaturecut-outsforinstallingangeadapters,

blindangesand/orangedsockets.

5. Product overview

Model FLEX 16-S6
