Installation.

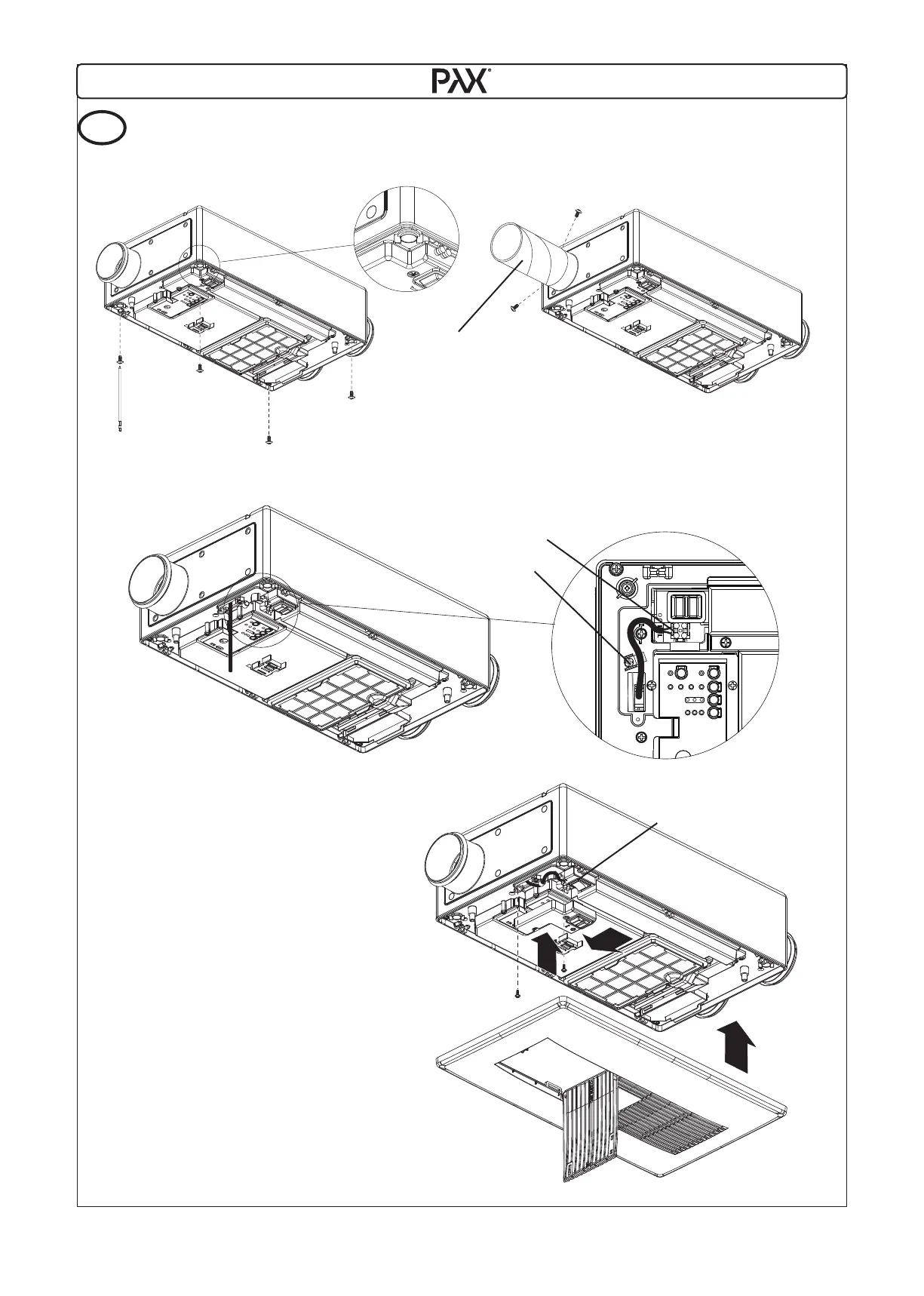

[16] Fix the unit with 4 screws in the
mounting plate.
Use the attached long bit
200mm PH2.
[19] Replace the terminal box cover.
Turn on the main switch.
Then push the front panel on place
and lock the panel with lever.
[17] Install the duct to the SA adapter and fix
the duct and adapter with supplied screw.
[18] Cut and strip the cable to length, connect the cable to the N and L in the
terminal and fit the strain relief.
UK
Terminal
Main switch
Strain relief
Use the duct more
than 1.5m.
