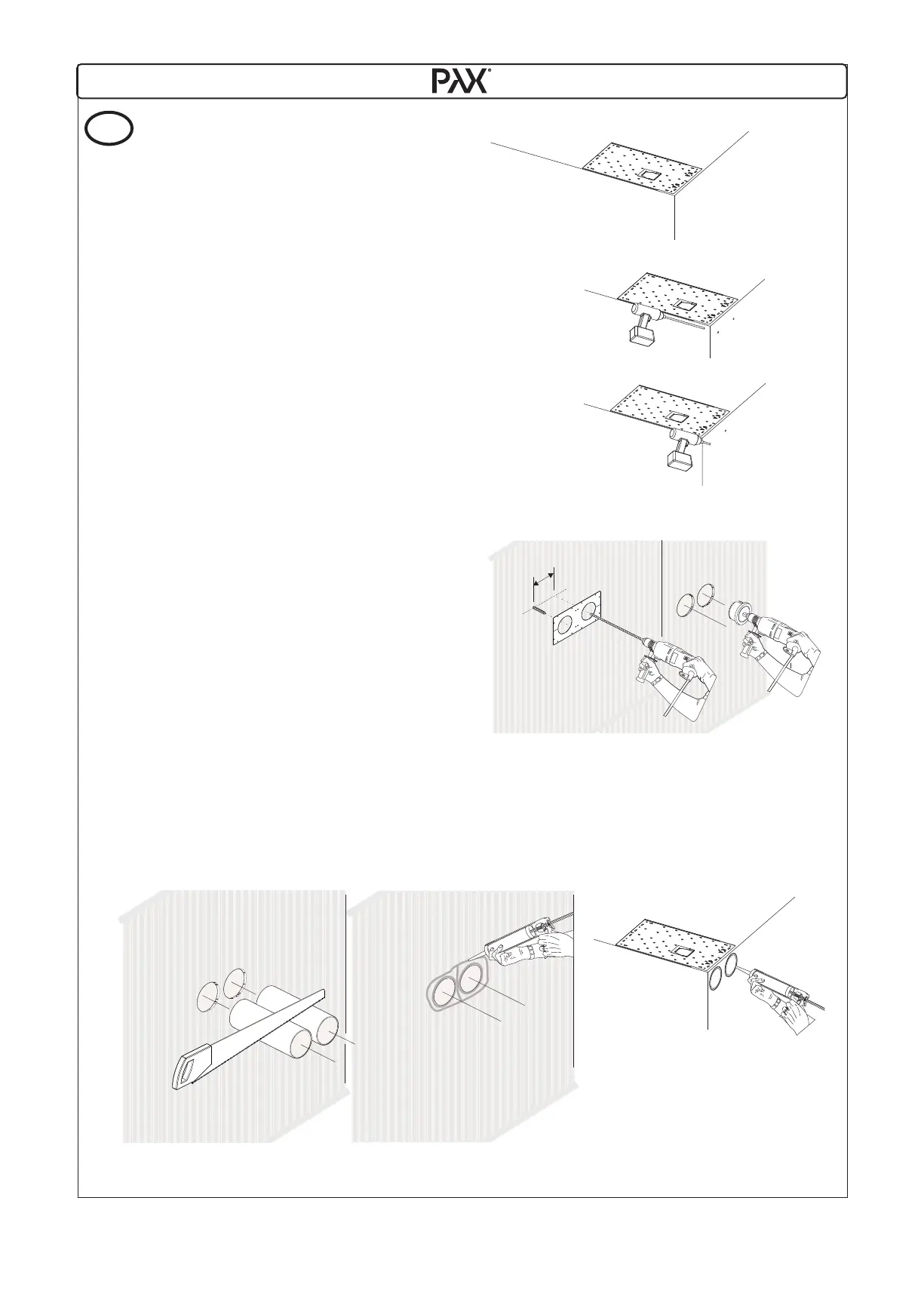

Installation.
[3] Fix the mounting plate under ceiling by 6 screws.
[4] Drill two small holes in the inner wall marked by
drilling template.
[5] Drill a hole through the wall with a long narrow drill.
(be sure to drill straight in both wave and vertically)
[6] Then use the template holes on the
outside of the wall to mark the second
hole position.
Use a water pass so the holes get in horizontal.
This will make you a safer positioning
of markers to use hole saw.
Next make up the larger holes D = 110 mm
(adapted for channels D=100mm)
by sawing through the wall from both
inside and outside.
Plastic channels described below is an accessory for Pax Eos.
[7] Cut the plastic channels according to the wall thickness of the housing, place the
channels in the holes for outdoor air and exhaust air.
Seal the space between wall and channel through joint sealing.
[4]
[5]
GB
UK
[3]
170
[6]
[6]
[7] Outdoor Indoor
