pattersonfan.com
800.768.3985
9
MECHANICAL INSTALLATION
2
Line up safety ring bracket, downrod, and motor shaft bolt
holes. Replace the two bolts.
3
With a level or plumb bob, make sure downrod is completely
vertical. Torque all four downrod bolts (top and bottom) to 32
ft-lbs.
1
Remove the two bolts on the bottom of the downrod. Slide
motor shaft inside downrod so that motor leads are aligned
with junction box above.

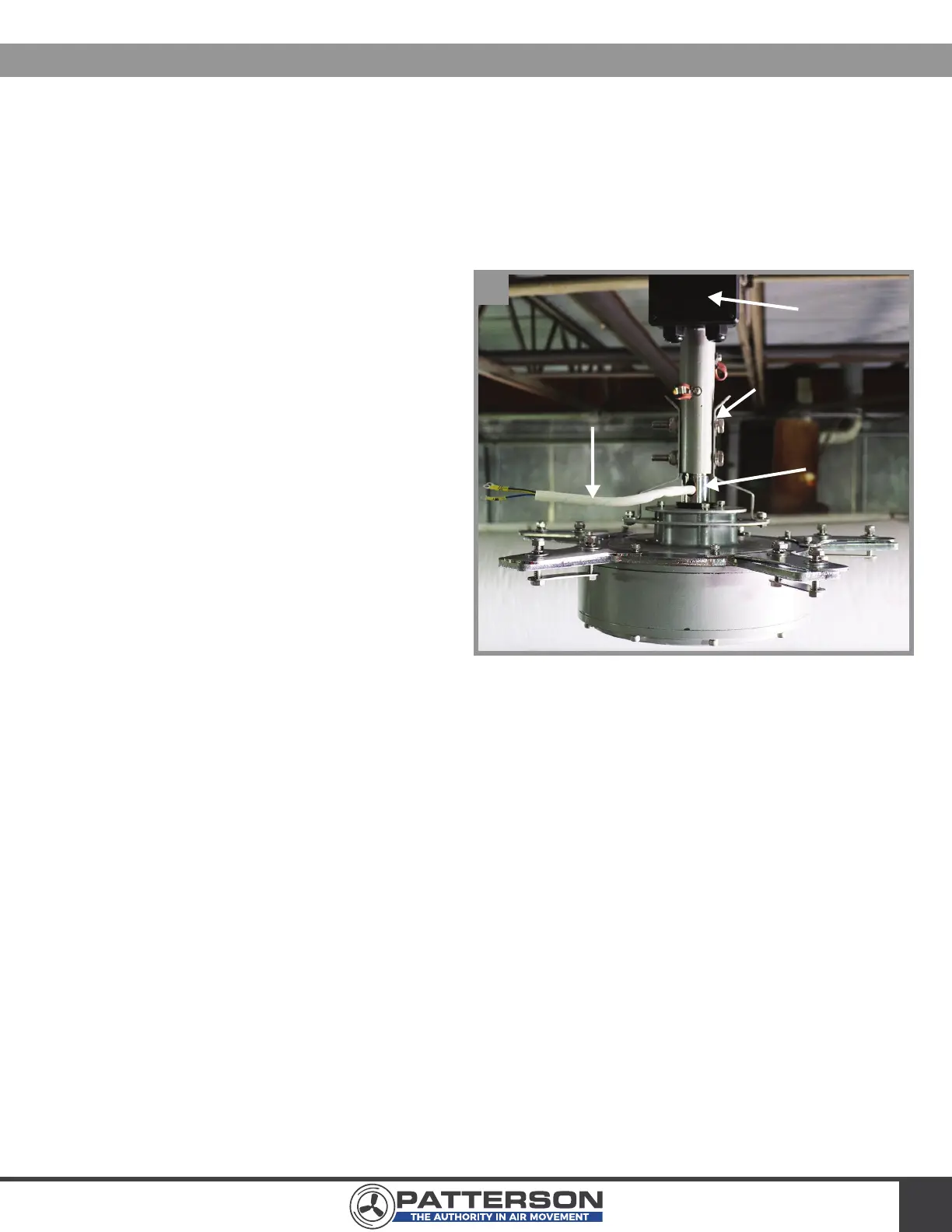

MOTOR ASSEMBLY
Note: To avoid damaging the motor during installation, do not remove protective plastic from the motor until it has been
properly mounted.
Note: If using an extended downrod, see page 11 for guy wire bracket installation before proceeding with motor assembly
below.
5
Junction box
Motor shaft
Motor leads
Safety ring bracket
