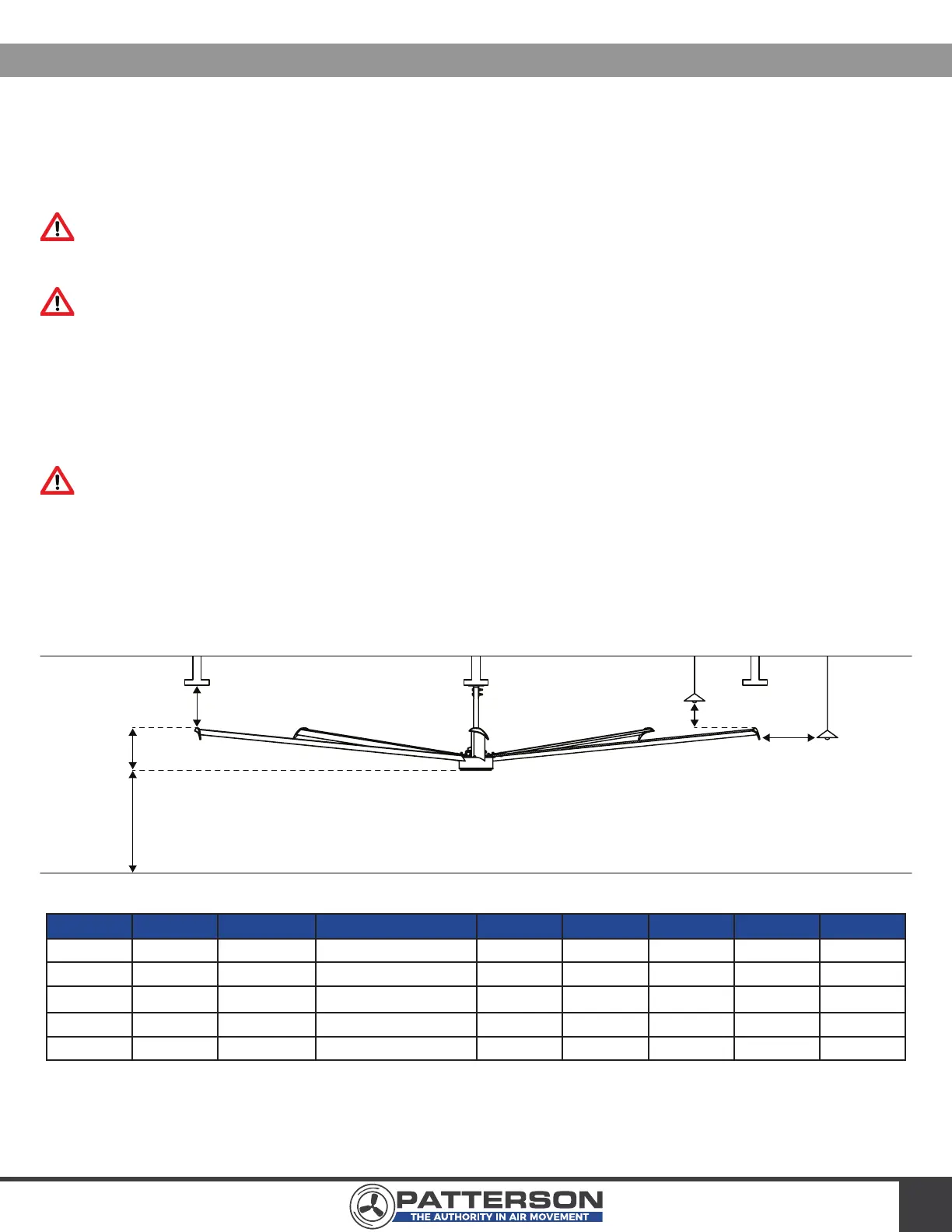

FAN SPACING, PLACEMENT, & CLEARANCE
SPRINKLER SYSTEMS AND FAN PLACEMENT
In any installation where fire sprinklers are in place, the fan should not interfere with their correct operation. Fans should be
located no less than 3 feet below a sprinkler, and placed in the center of nearest four sprinklers. Our industrial control panel
can be connected to a fire relay system, which, in an emergency, will stop fans in case of fire.
Prior to installing fans, review all codes applicable to sprinkler systems and fans to ensure code compliance and refer to
NFPA 13 Standard from the National Fire Prevention Association. It is your sole responsibility to see that the installation is
completed to code and that it is correct.
OTHER INFORMATION ON PLACEMENT AND SPACING
If possible, avoid mounting fans directly below lights or skylights to avoid any strobe eect caused by moving airfoils. Please see
chart below for recommended minimum and maximum hanging heights.
If the building has a mezzanine, fans should be mounted so a person cannot reach a fan in any way from the upper
level/deck. Make certain that fans are positioned so that the airfoil tips are at least 3 feet away from any area where a person
may be able to extend outward to reach them.
Fans should not be located directly beneath any air supply outlets or exhausting outlets. This includes air conditioning units and
evaporative coolers. Such equipment can be used eectively in conjunction with HVLS fans but the discharge must be located
outside of the swept area of the fan. Exhaust fan inlets or other return air points creating a negative pressure should not be within
1.5 times the diameter of the fan.
pattersonfan.com
800.768.3985
6
BEFORE YOU START
A
B
H
Downrod
C
D
Vertical obstacles
Size H (min) H (Rec max) Assembled Height A B C D Downrod
8' 10' 16.5' 31.5" 14" 12" 8" 8" 2' to 5'
12' 10' 16.5' 31.5" 15" 12" 8" 8" 2' to 5'
16' 12' 20' 31.5" 16" 12" 8" 8" 2' to 6'
20' 14' 23' 37" 20" 12" 8" 8" 2' to 10'
24' 14' 30' 37" 20" 12" 8" 8" 2' to 10'
