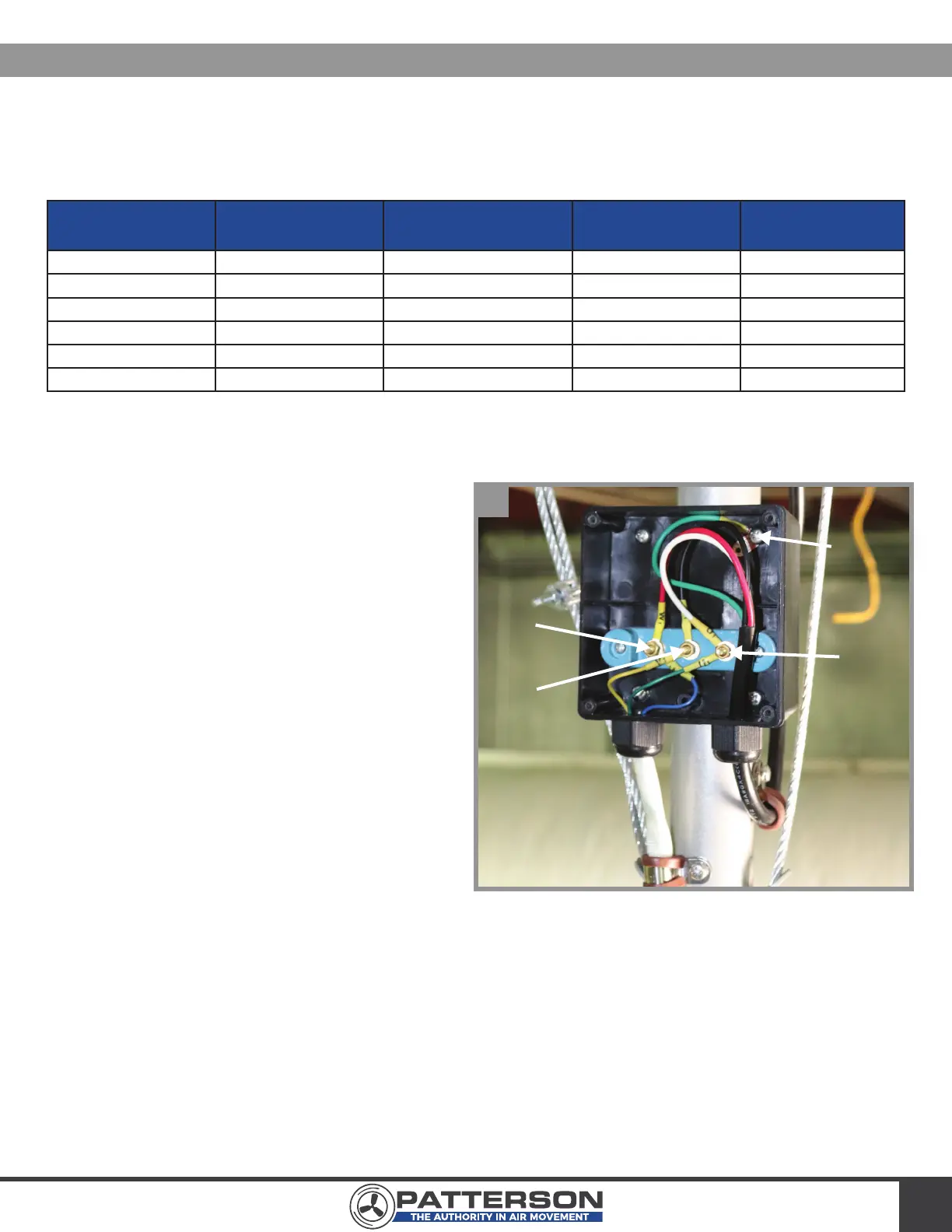

ELECTRICAL INSTALLATION
BREAKER SIZING
Refer to the table below for recommended circuit breaker sizing based on input voltage and fan motor horsepower.
CONNECT CONTROL CABLE TO FAN MOTOR
1
Remove the cover of the motor junction box on the downrod.
2
Feed motor leads through strain relief into junction box.
3
Pass end of VFD cable with ring terminals through strain relief
into junction box.
4
Attach ring terminals from motor leads and VFD cable to
terminals in junction box. Ensure letters match. See Image 18.
5
Route VFD cable to suitable VFD location (50’ of cable has
been provided). Conduit is recommended.
6
Mount VFD to wall by use of attached mounting tabs
(hardware not included).
7
Run VFD cable through strain relief furthest to right. Connect
cable to terminal blocks U, V, and W. See Images 19 and 20.
V
U
W
GROUND
18
VFD Model Input V Input Max Amp/
Recommended Fuse
Output V Max Output A
EM30 Series 220V, 1Ø, .5 HP 10/15 0-Input, 3Ø 4.5
EM30 Series 208-230V, 3Ø, .5 HP 5/10 0-Input, 3Ø 4.5
EM30 Series 460V, 3Ø, .5 HP 3/10 0-Input, 3Ø 2
EM30 Series 220V, 1Ø, 1HP 14/20 0-Input, 3Ø 7
EM30 Series 208-230V, 3Ø, 1 HP 7.8/15 0-Input, 3Ø 7
EM30 Series 460V, 3Ø, 1 HP 5/10 0-Input, 3Ø 4
