Adjust with shims until downrod is plumb if needed.
Depending on

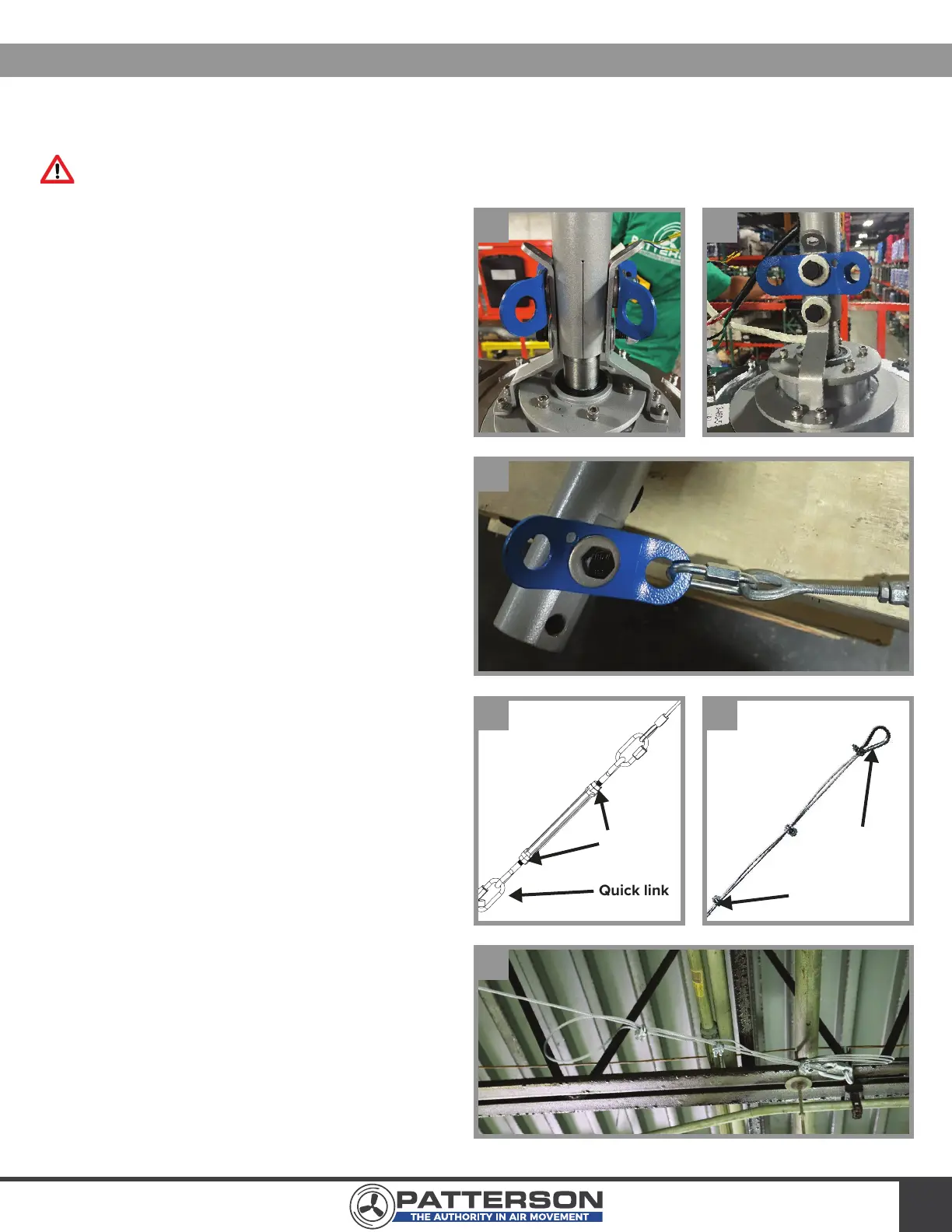

GUY WIRE ASSEMBLY
WARNING: If you order an extended downrod, guy wire installation becomes required for safe fan operation.
MECHANICAL INSTALLATION
1
During Step 2 of MOTOR ASSEMBLY, add guy wire brackets to
the top bolt of the motor shaft. The guy wire brackets come
with extra washers that should be placed between the guy
wire brackets and safety ring bracket. Bolt should be torqued
to 32 ft-lbs per Step 3 of MOTOR ASSEMBLY.
2
Using the quick links, connect the turnbuckles to the outer
holes of the guy wire brackets.
3
Loosen jam nuts and extend turnbuckle.
4
Run four guy wires to ceiling structure, keeping the angle less
than 45° for maximum stability. Attach guy wires to ceiling
structure using provided beam clamps and thimble.
5
Remove slack and secure with cable clamps.
6
Once all guy wires are in place, use turnbuckles to take out
any remaining slack. Periodically check the fan assembly with
a level to ensure it remains in the vertical position. Continue
adjusting by means of the turnbuckles until all cables are
satisfactory. Guy wires should be taut, but not over stressed.
Recheck all cable clamps for tightness.
7
Tighten all jam nuts. This step is required. Failure to install the
guy wires properly may void manufacturer’s warranty and
become a safety hazard.
11
10
Quick link
12 13
Jam nuts Thimble
Cable clamp
14
