There are many acceptable methods for hanging a Patterson Yoke Mount 34” fan. The yoke must be securely connected to a solid structure and all materials

used to hang the yoke and fan must be rated for this type of rigging and workload. Below is what we consider to be the simplest method of fan suspension.

Feel free to improvise, but please use caution and good judgment.

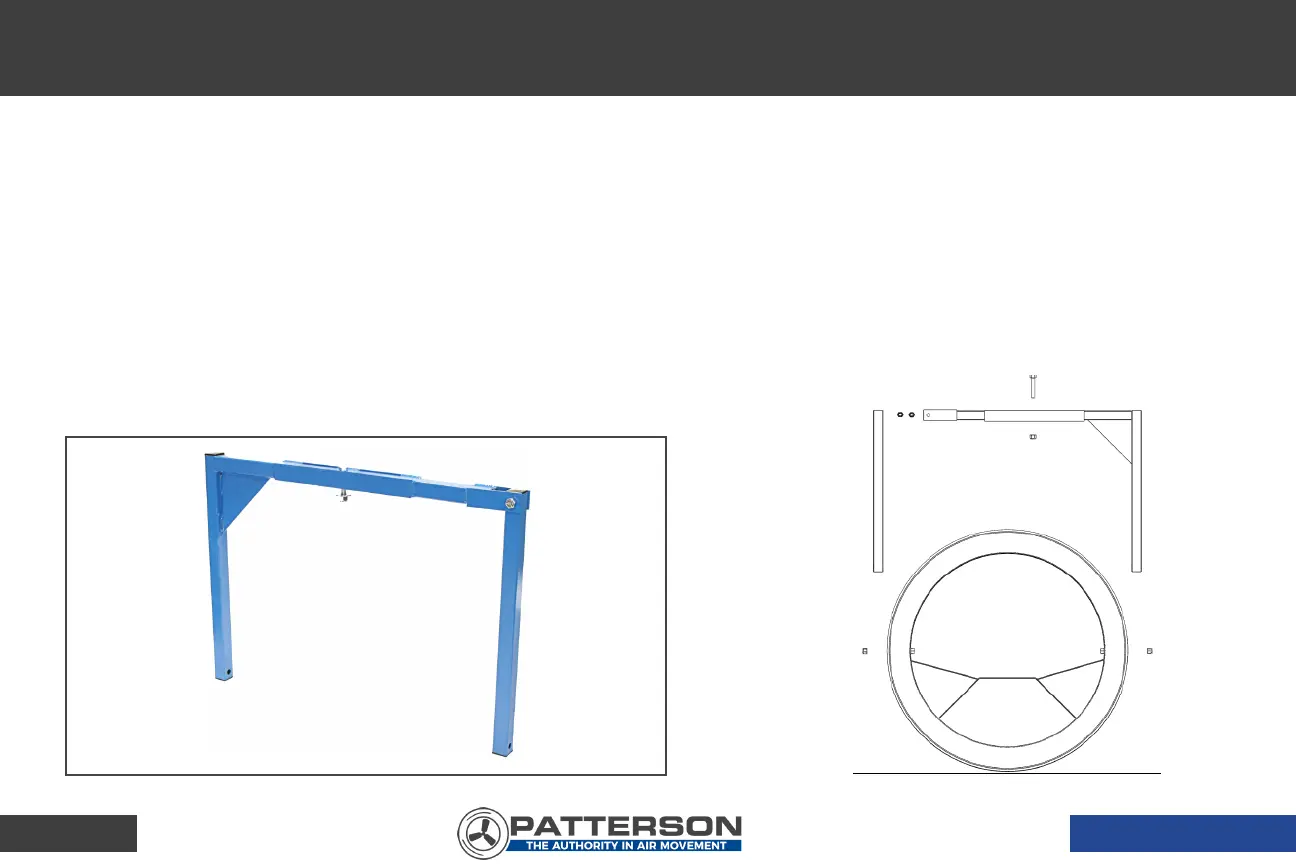

1. Assemble the yoke connecting Side A with Side B to the stud bolts of the fan housing. The factory assembled fan head ﬁts inside the “U” shaped yoke,

the threaded studs on each side of the fan ﬁt through the predrilled holes on the “U” shaped yoke. Secure the fan head to the yoke with the supplied nuts.

2. Assemble Side A and Side B of the yoke and connect with supplied bolt.

3. Safety cable is mandatory. Use a length of chain of cable to secure the fan to a solid surface and attach the fan. Make sure cable or chain is rated for the

weight and purpose.

Note: Due to continual product improvement, items are subject to change without notice.

A B

34” YOKE MOUNT

ASSEMBLY
