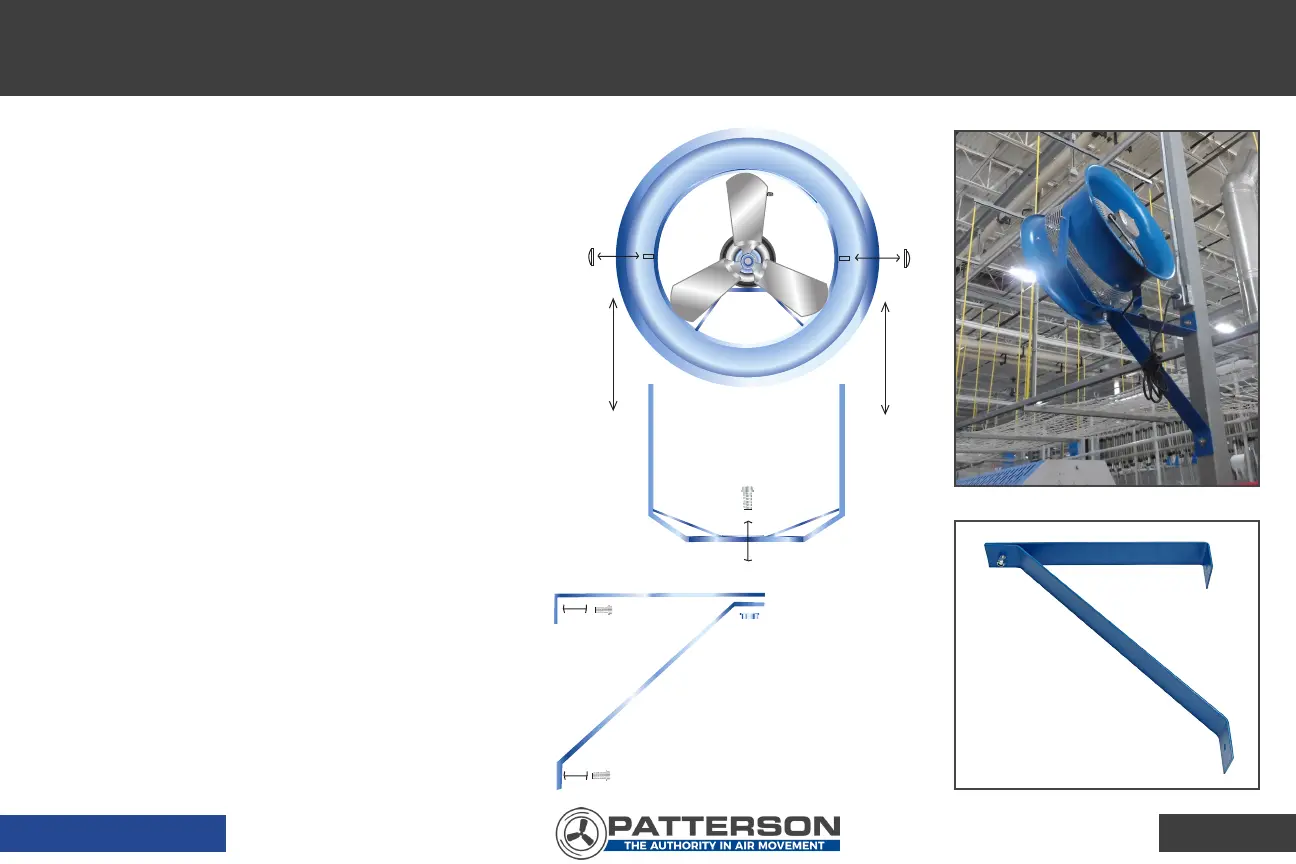

Important: If the fan is at a level near people, it should be
equipped with OSHA Compliant Patterson finger guards.
Please contact your factory sales representative to order.
1. Secure (A) of the wall bracket to the solid surface from
which you will hang the fan. There is a single mounting
hole on the short end of the part. Secure (A) using a wall
anchor, etc. (wall anchor not included). Place a level on
the part.
2. Position (B) under (A) as shown and situate (B) in such a
way so that (A) becomes level. Mark (B) for the hole. Attach
(B) using the appropriate wall anchor (not included).
3. Secure the “U” shaped yoke to the wall bracket using the
supplied 5/8” bolt and nut. If you plan to add an oscillator,
mount the yoke so that it opens up. The bolt must go
through all three pieces. Check for level and stability.
4. The factory assembled fan head fits inside of the “U”
shaped yoke. Secure the fan head to the yoke with the
supplied nuts. Mount the fan head so the motor capacitor
is in up position.
5. If safety cable installation is desired (recommended), use
a length of chain or cable to secure the fan to a solid
surface and attach to the fan. Make sure cable or chain
is rated for the weight and purpose of securing the fan.
Note: Due to continual product improvement, items are
subject to change without notice.
A
B
COLUMN-WALL
ASSEMBLY
CW
7
