There are many acceptable methods for hanging a
Patterson Yoke Mount fan. The yoke must be securely
connected to a solid structure and that all materials used
to hang the yoke and fan must be rated for this type
of rigging and workload. Below is what we consider to
be the simplest method of fan suspension. Feel free to
improvise, but please use caution and good judgment.

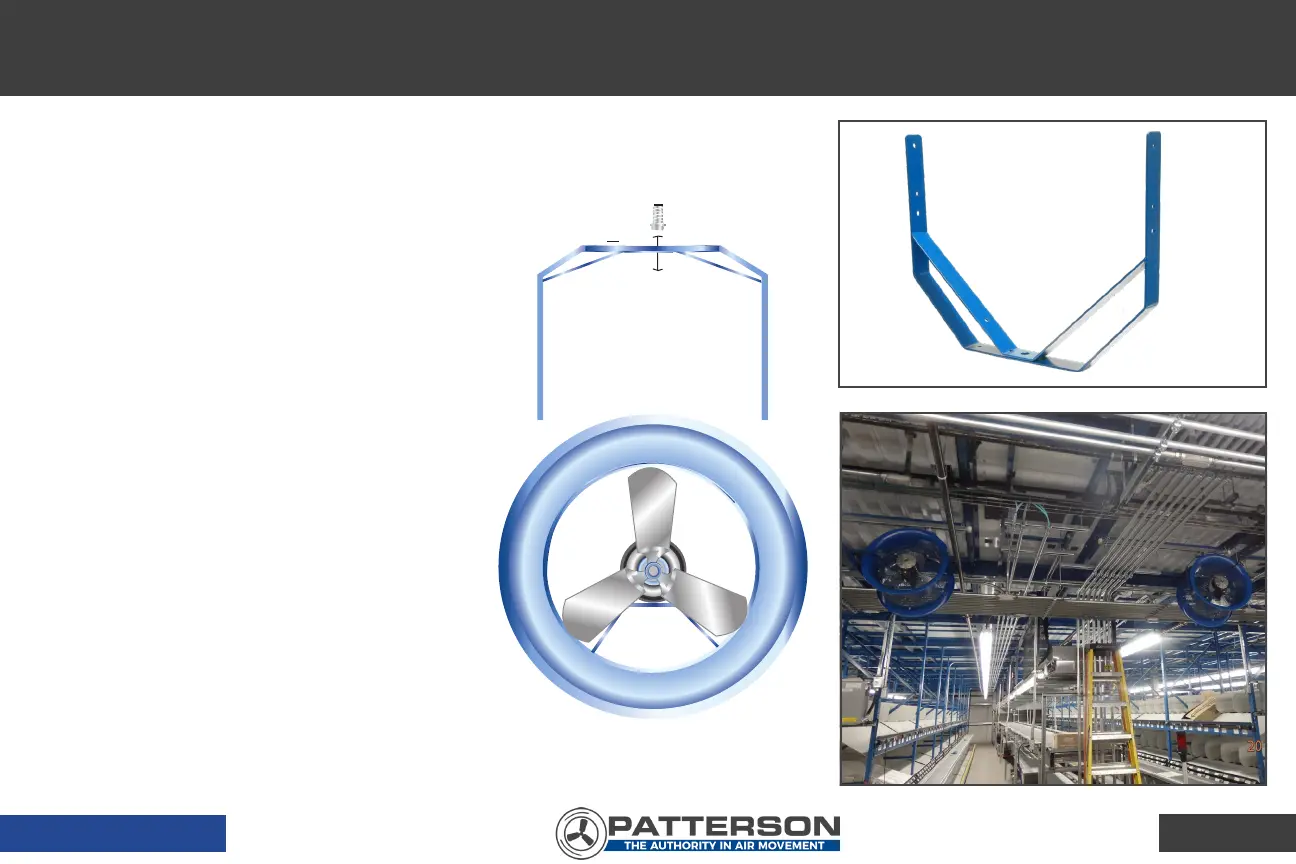

1. Secure the “U” shaped yoke to the object from
which you intend to mount the fan. Use a 5/8” bolt,
a 5/8” nut and (2) 5/8” washers. Tighten the nut
onto the bolt using a 5/16” bolt end wrench and
ratchet with 5/16” socket.
2. The factory assembled fan head fits inside of the
“U” shaped yoke, the threaded studs on each side
of the fan fit through the predrilled holes on the
“U” shaped yoke. Secure the factory assembled
fan head to the “U” shaped yoke with the supplied
nuts. Mount the factory assembled fan head so that
the motor capacitor is in up position.
3. If recommended safety cable installation is desired,
use a length of chain or cable to secure the fan to
a solid surface and attach to the fan. Make sure
cable or chain is rated for the weight and purpose
of securing the fan.
Note: Due to continual product improvement, items are
subject to change without notice.
YOKE MOUNT
ASSEMBLY
YM
3
