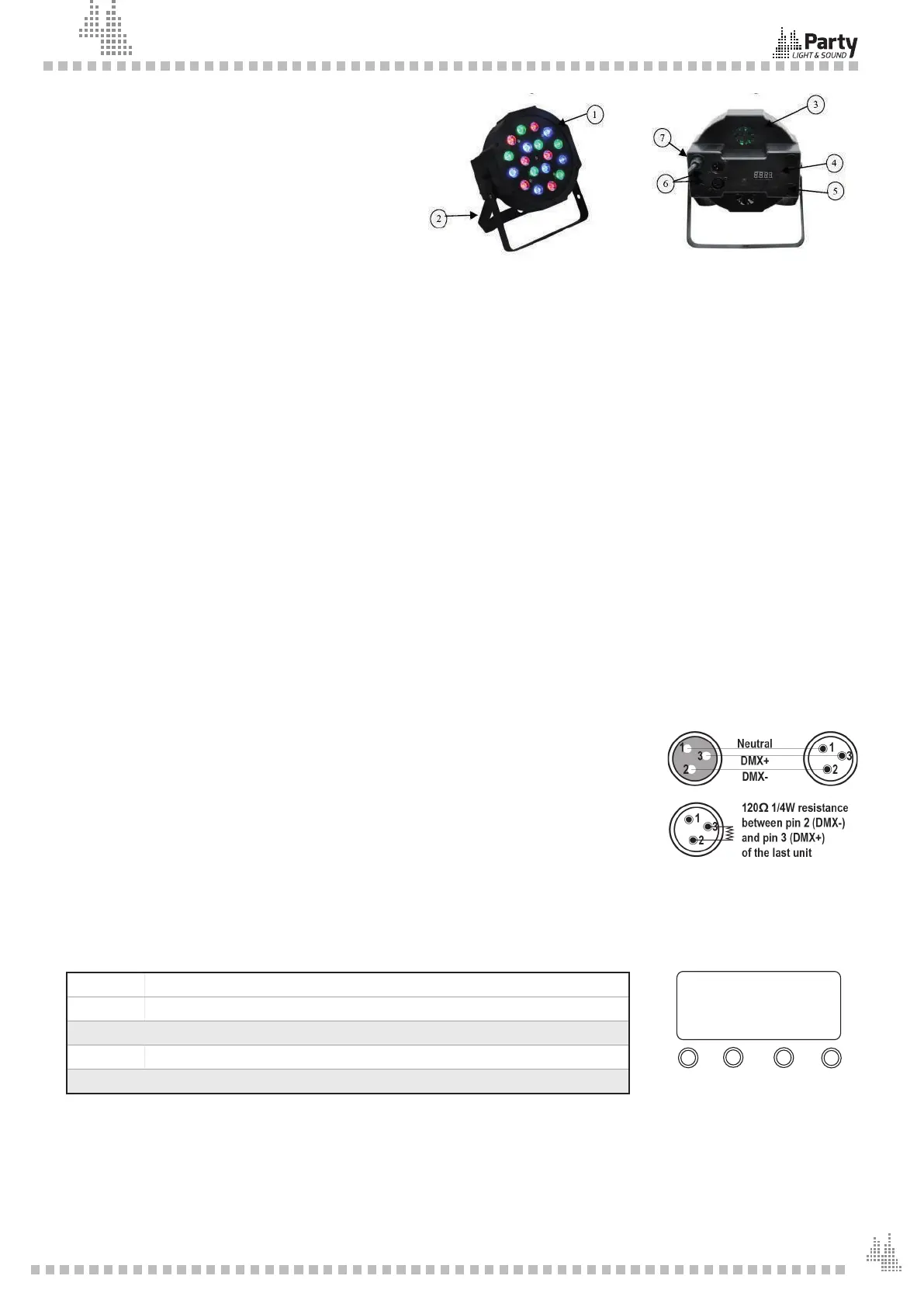

DESCRIPTION

1. LED diode

2. Hanging handle

3. Cooling fan

4. LCD digital display

5. Button: mode, up, down, enter

6. DMX linking in/out

7. Power supply

INSTALLATION

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is 󰊟rmly 󰊟xed to

avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the

unit is secure and is able to support a weight of 10 times of the unit’s weight.

Never stand directly below the device when mounting, removing or servicing the 󰊟xture.

FIXTURE LINKING

You will need a serial data link to run light shows of one or more 󰊟xtures using a DMX-512 controller or to run

synchronized shows on two or more 󰊟xtures set to a master/slave operating mode. The combined number of

channels required by all 󰊟xtures on a serial data link determines the number of 󰊟xtures that the data link can

support.

Important: Fixtures on a serial/data link must be daisy chained in one single line. Maximum recommended

serial data link distance: 100 meters (1640 ft.) Maximum recommended number of 󰊟xtures on a serial data link:

16 󰊟xtures

DATA CABLING

To link 󰊟xtures together you must use data cables. If you choose to create your own cable, please use da-

ta-grade cables that can carry a high quality signal and are less prone to electromagnetic interference.

CABLE CONNECTORS

Cabling must have a male XLR connector on one end and a female XLR connector on the other end.

DMX connector con󰈛guration

Termination reduces signal errors. To avoid signal transmission problems and interfe-

rence, it is always advisable to connect a DMX signal terminator.

CAUTION

Do not allow contact between the common and the 󰊟xture’s chassis ground. Groun-

ding the common can cause a ground loop, and your 󰊟xture may perform erratically.

Test cables with an ohm meter to check correct polarity and to make sure the pins are not grounded or shorted

to the shield or each other.

NAVIGATION THROUGH THE CONTROL PANEL

Access control panel functions using the four panel buttons located directly underneath the LCD Display..

Button Function

MENU Used to access the menu or to return to a previous menu option

UP Scrolls through menu options in ascending order

DOWN Scrolls through menu options in descending order

ENTER Used to select and store the current menu or option within a menu

When a menu function is selected, the display will show immediately the 󰊟rst available option for the selected

menu function. To select a menu item, press <ENTER>.

Master mode: any unit can work as a master

Slave mode: the DMX address value must be set to Slave.

DMX code setting: d1~d512

DOWN

MENU ENTER

8.8.8.8.
