Û´»½¬®·½¿´ ½±²²»½¬·±²
Warning:
All electrical work must be carried by a suitably qualified and authorized electrician. No
alterations or willfull changes in the electricity supply should be carried out.
The unit must only be installed according to municipal or government regulations and in
compliance with the instruction manual.
Before attempting the connection, check whether the voltage indicated on the rating
plate corresponds to the actual mains voltage.
ݱ²²»½¬·±²ø¾§ ¿«¬¸±®·¦»¼ »´»½¬®·½·¿²÷æ
Use no less than 32A ½±²¬®±´ ©·¬½¸ ø½·®½«·¬ ¾®»¿µ»®÷ò
Connect the ½¿¾´» at the rear of the product on ½±²¬®±´ ©·¬½¸ (cable already assembled on the
rear of product)ò
Mains lead must be led through the relief safety device, protecting the mains lead cable from
disconnection
Tighten the relief device security , and check the connection mode must according to below figure

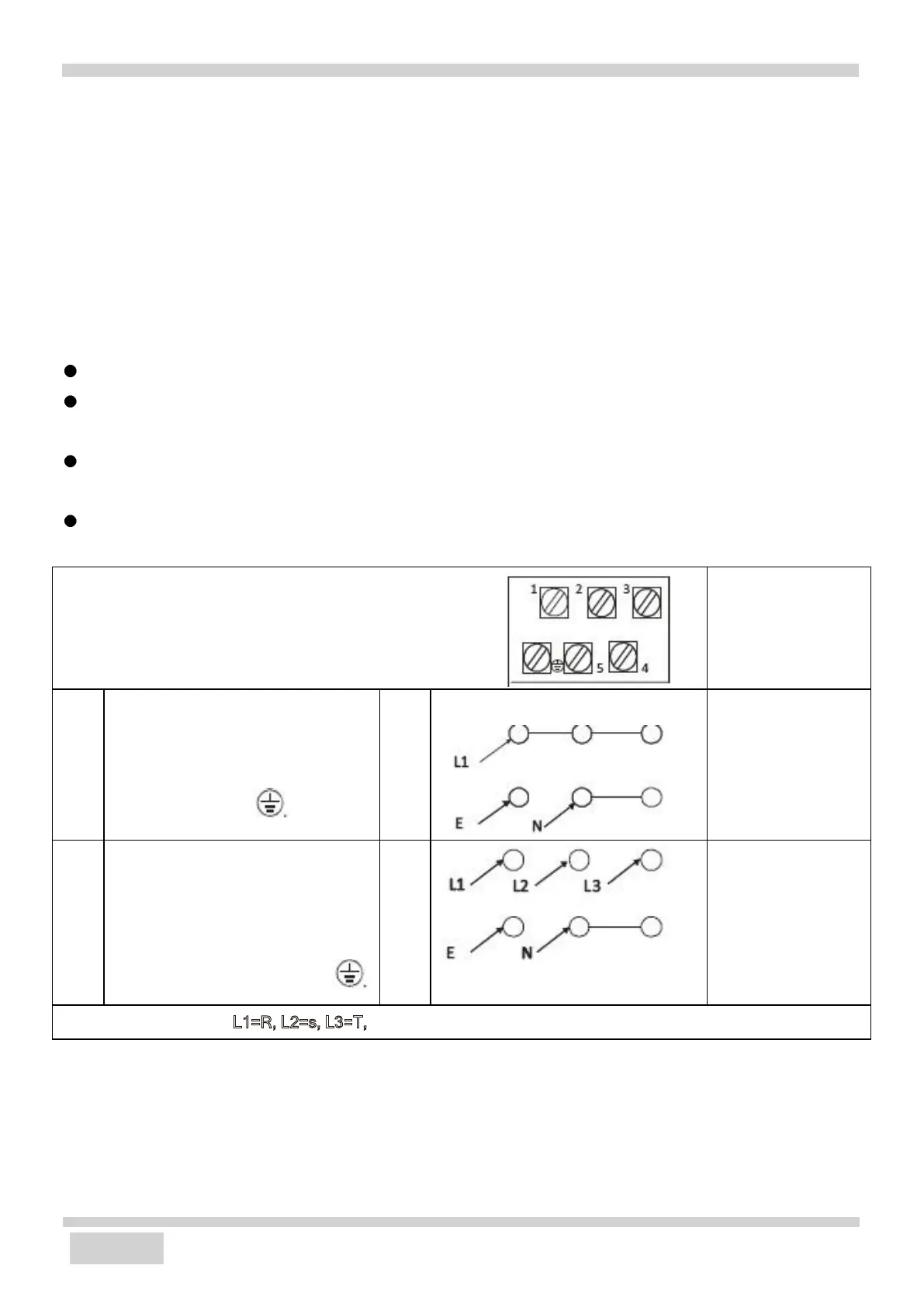

CONNECTION DIAGRAM
Caution! Voltage of heating elements 230V
Caution! In the event of any connection the safety
Wire must be connected to the E terminal.
Recommended
type of connection
lead
For 220-240V earthed
one-phase connection,
bridges connect 1-2-3
terminals and 4-5 terminals,
safety wire to
H05VV-F3G4
For 380-415/220-240V
earthed three phase
connection, bridges connect
4-5 terminals, phases in
succession 1,2 and 3, earth
to 4-5, the safety wire to
H05VV-F5G1,5
Colour code
L = exterior live wires, usually coloured black , brown ,red.
N = neutral, usually coloured blue, white
G = earthing wire ,the color is green , yellow, green/yellow(two colo
Cod:00403007055-03
r)
L1=R, L2=s, L3=T, Neutral wire terminal, E - Earthing wire termina
26
