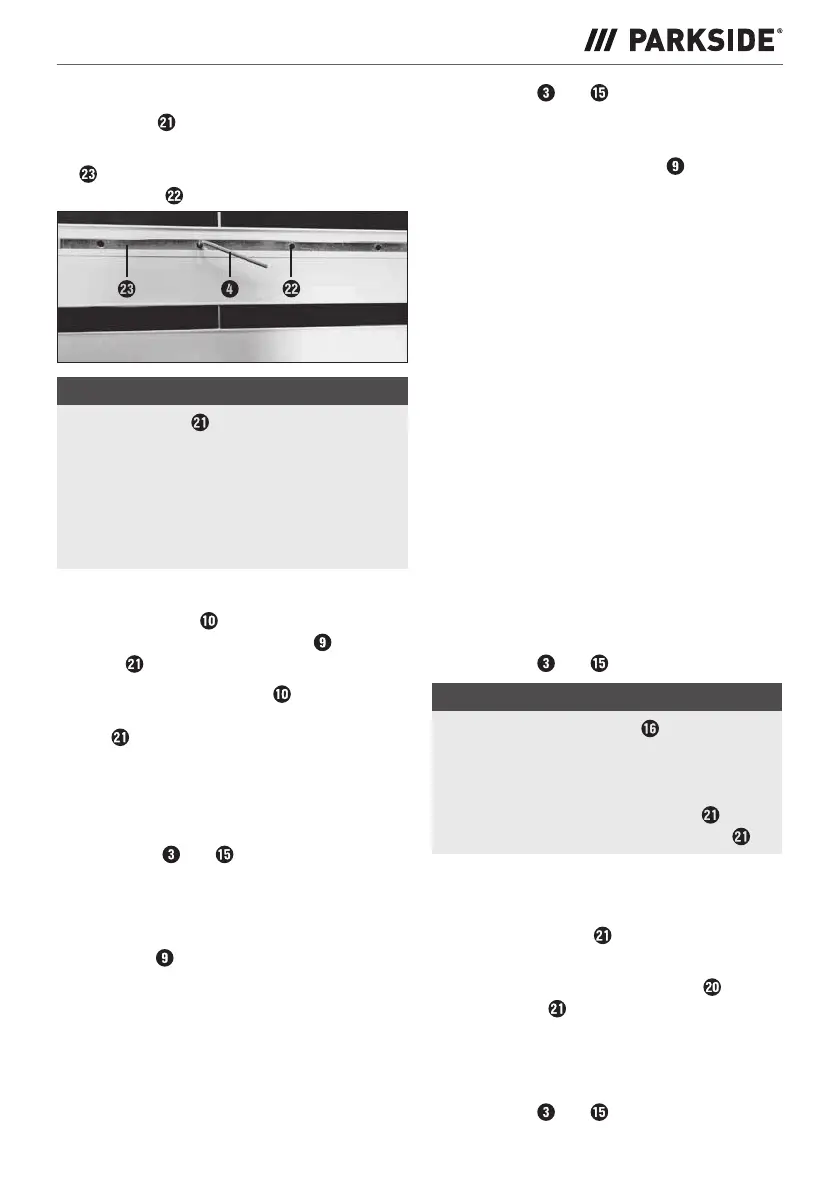

Connecting the guide rails
The guide rails will help you to make straight cuts.
♦ To connect the 2 guide rails, push the connector
into the groove of the guide rails. Tighten the
grub screws
using the supplied hex key.
NOTE
► The guide rails
have a splinter guard (red
rubber lip). The splinter guard must be
adjusted before making the first cut. Place the
guide rail onto a workpiece. Set a cutting
depth of approx. 10 mm. Switch the circular
saw on and push it gently and evenly in the
cutting direction.
Eccentric screws
The eccentric screws are intended for the
adjustment of the fit of the base plate on the
guide rail .
♦ Tighten the eccentric screws
to reduce the
play between the circular saw and the guide
rails .
Sawing (without the guide rail)
Right-angled sawing
♦ Hold the machine with both hands firmly on
the handles
and .
♦ Switch on the appliance as described in
"Switching on and off".
♦ Place the appliance with the front part of the
base plate
on the workpiece.
♦ Swivel the motor down and saw forwards with
moderate pressure – never backwards.
Mitre angles up to 45°
♦ Adjust the cutting angle as described.
♦ Hold the machine with both hands firmly on
the handles
and .
♦ Switch on the appliance as described in
"Switching on and off". Place the appliance with
the front part of the base plate
on the work-
piece.
♦ Swivel the motor down and saw forwards with
moderate pressure – never backwards.
Plunge cuts
♦ When making a "plunge cut" that is not at right
angles, secure the base plate of the saw to
prevent any lateral movement. Lateral movement
can cause the saw blade to jam, thus causing a
kickback.
♦ Adjust the desired cutting depth as described
above.
♦ Place the appliance onto the workpiece.
♦ Avoid a kickback and place the rear edge
against a stop.
(reference is made to this in the section "Plunge
cutting using the guide rail").
♦ Switch on the appliance as described in
"Switching on and off".
♦ Hold the machine with both hands firmly on
the handles
and and pivot it.
NOTE
► The cutting width marking
on the side
ofthe blade guard shows the front and rear
cutting point of a 165 mm saw blade at
maximum cutting depth. This applies both
for plunge cuts using the guide rail and
plunge cuts without using the guide rail .
Sawing (with the guide rail)
Right-angled sawing with the guide rail
♦ Apply the guide rail
with the foam rubber
elements onto the workpiece.
♦ Place the appliance with the groove
onto
the guide rail .
♦ Switch on the appliance as described in
"Switching on and off".
♦ Hold the machine with both hands firmly on
the handles
and and pivot it.
