© Panduit Corp. 2018
OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 35 of 51 4-2018
4.2.11a Gripper Assembly Jaw Pressure Adjustment
a. Follow the steps listed in Figure 26 show below.
b. After adjusting the set screw to the desired tightness, tighten the nut using
the 11mm open end wrench to secure the setting.

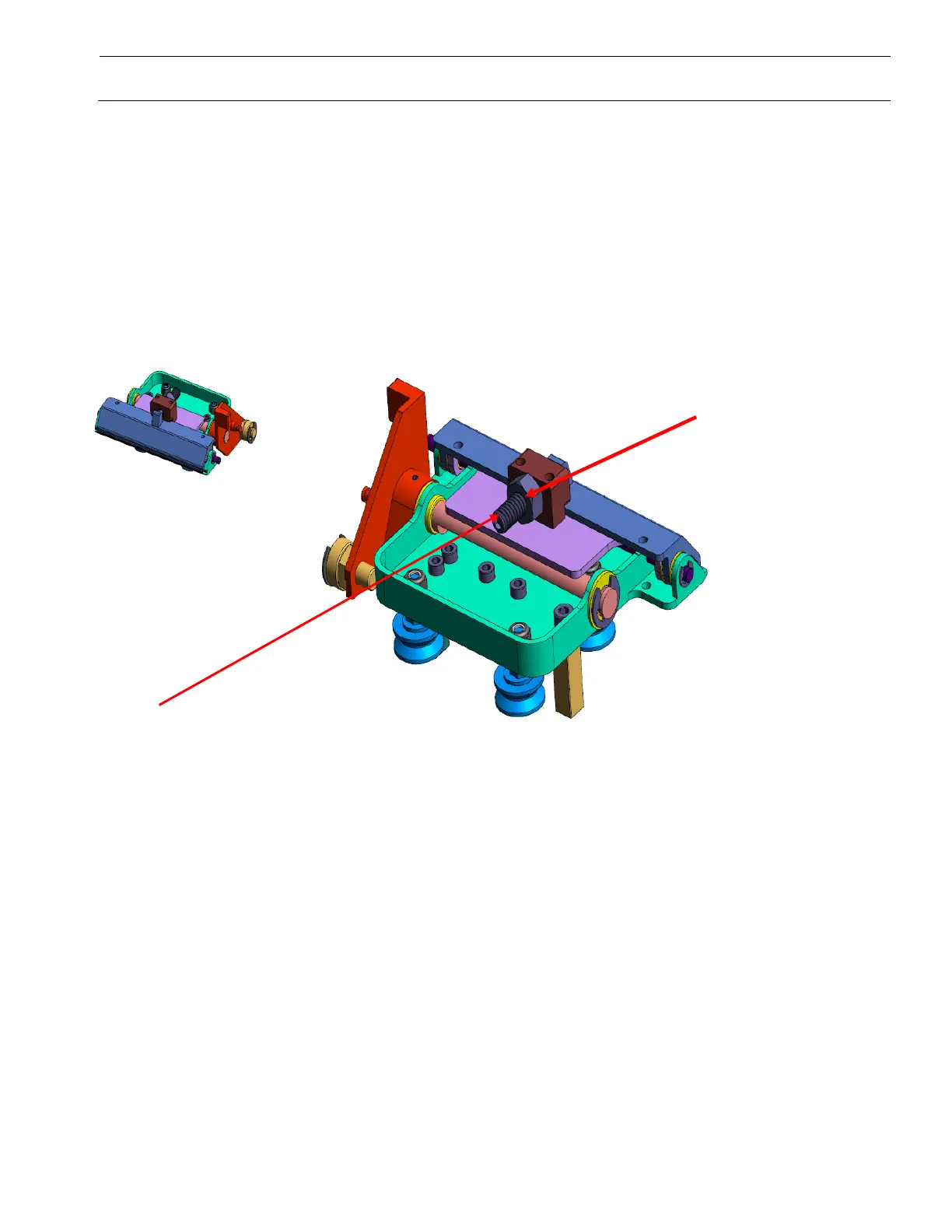

FIGURE 26
Use 11mm open end
Wrench to loosen or tighten
Nut.
STEP 1:
Use 2mm allen wrench (L-shape)
to loosen (turn counter clockwise) or tighten (turn
clockwise)
the plunger screw to adjust the Gripper jaw clamping
pressure which holds marker plate in position.
STEP 2:
After adjusting the plunger screw to the
desired
tightness, tighten the lock nut to hold this
position.
STEP 3:
Gripper Assembly
