© Panduit Corp. 2018
OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 30 of 51 4-2018

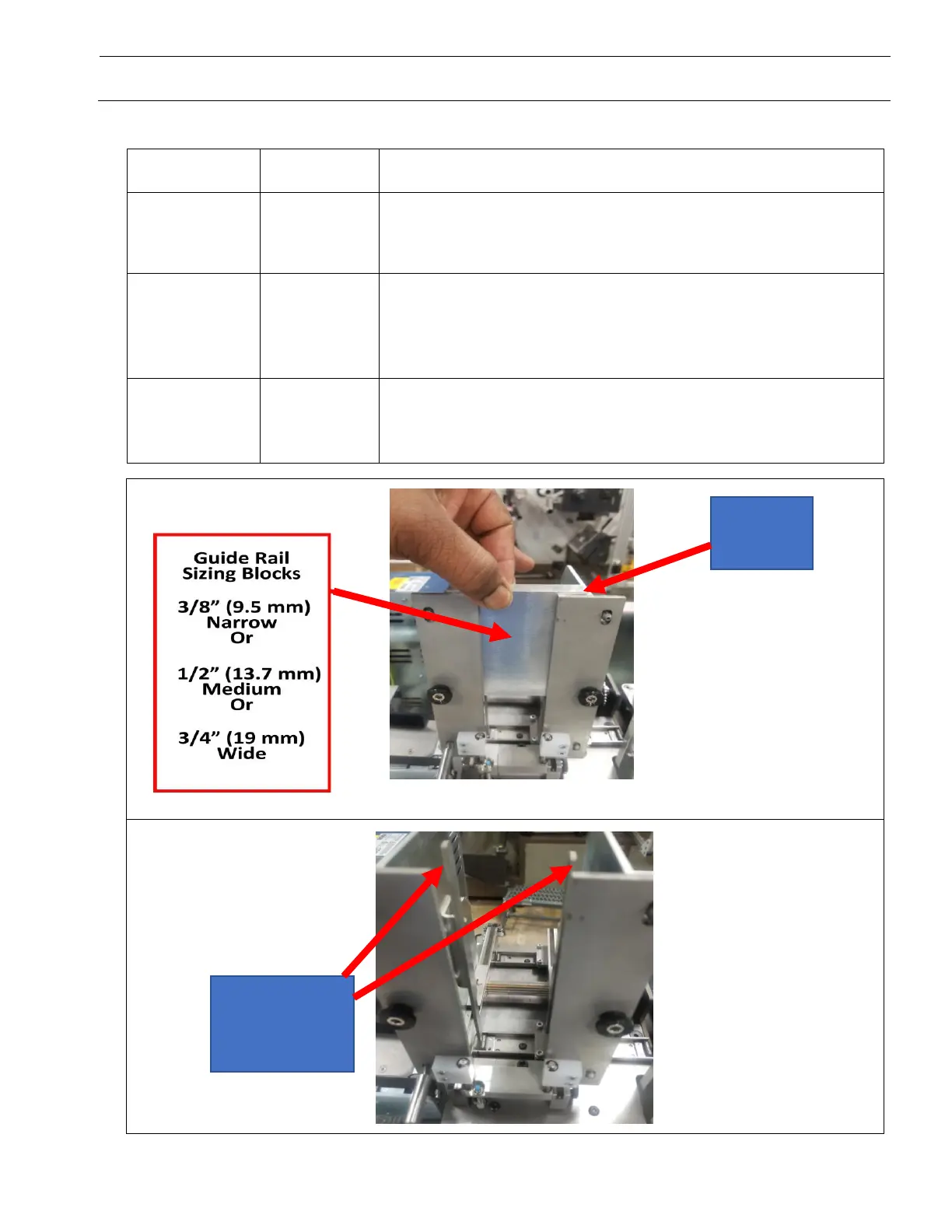

4.2.6. Guide Rail Adjustment
Plate Width
Plate
Height
Instructions
3.5”
(89mm)
Greater than
¾” (19mm)
Fully open guide rails, insert plates, and position guide rails
snug against the plates, then back up approximately 1/16” (1.6
mm).
3.5”
(89mm)
¾” or less
(19mm)
Insert the correct guide rail sizing block. Position guide rails
snug against the back of the guide rail sizing block. Tighten the
thumbs screws (2 per guide rail) by hand or use 3/16” Allen
wrench. Remove guide rail sizing block. See [Figure 16 and
Figure 17]
1.72”
(43mm)
Any
Slide the right-hand gate to the right and fit the guide rail sizing
block to both sides. See [Figure 18] and [Figure 19].
Figure 16
Figure 17
RH Side
Wall
Plate
Height
Guide Rails
