MIM094 / MIM125 / MIM187 OPERATION MANUAL
PA25213A01_01 Page: 12 of 13 8-2007
SECTION 8: LUBRICATION AND MAINTENANCE
1. A few drops of light oil should be applied to oil hole if handle motion seems tight. Lubricate once
a day if used continuously.
2. Lubricate the rear character dial surface, the table insert guides and the table dovetail strip with
a dry lubricant (graphite type). Do not use oil
.
TABLE
DOVETAIL
STRIP
OIL HOLE
CHARACTER DIAL
STAMPING SURFACE
TABLE INSERT GUIDE RAILS
SPACING
RACK
HANDLE
ADJUSTMENT
SCREW
SPACING ADJUSTMENT SCREW

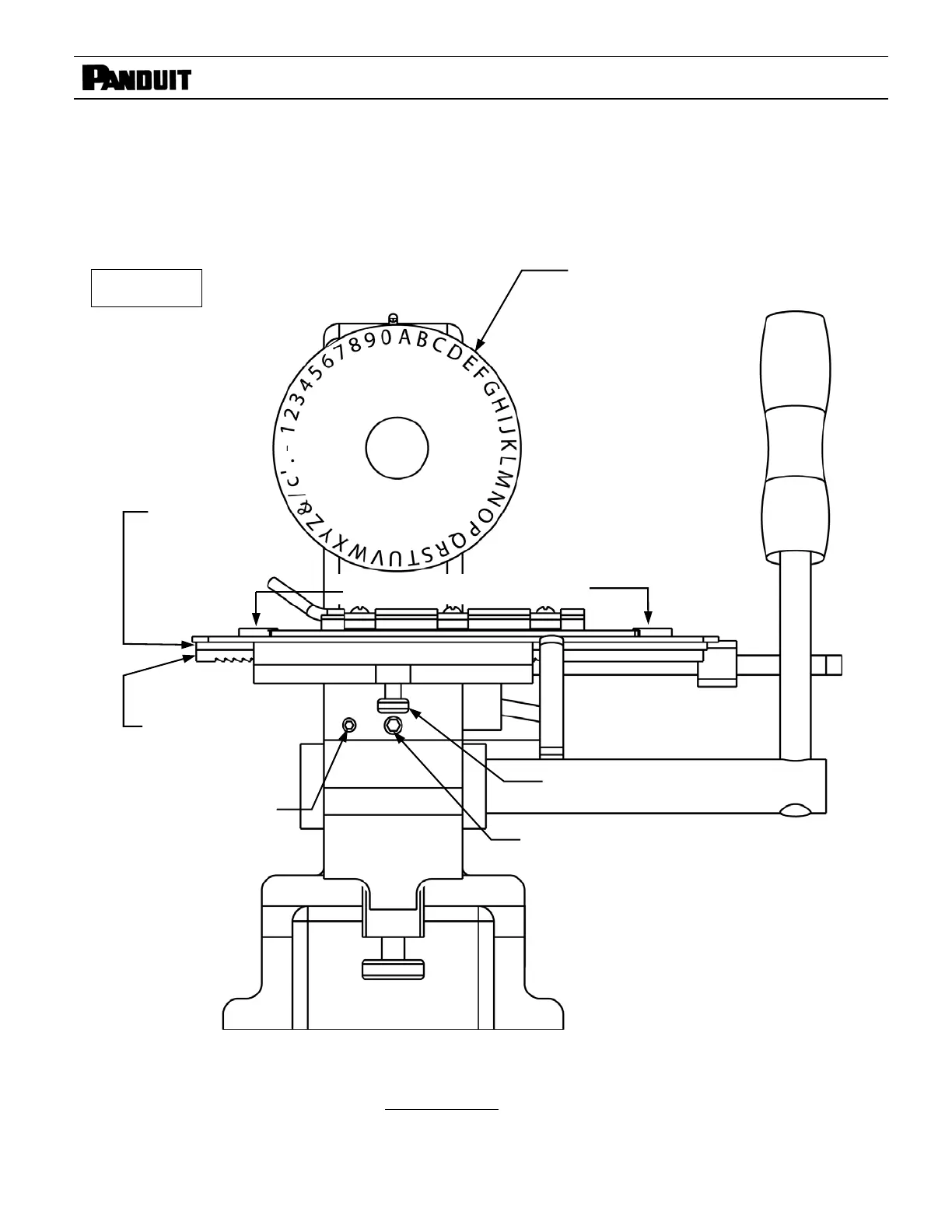

FIGURE 3
